EFB Elektronik PEL-2466TS.G1SV armario de red 19 pulgadas 24U 600x600 RAL9005

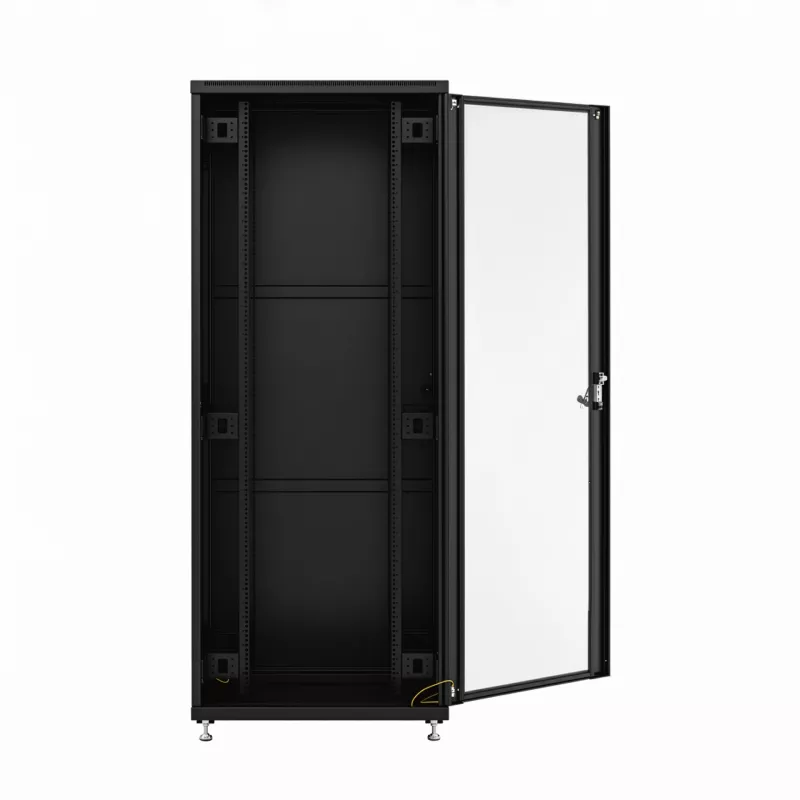

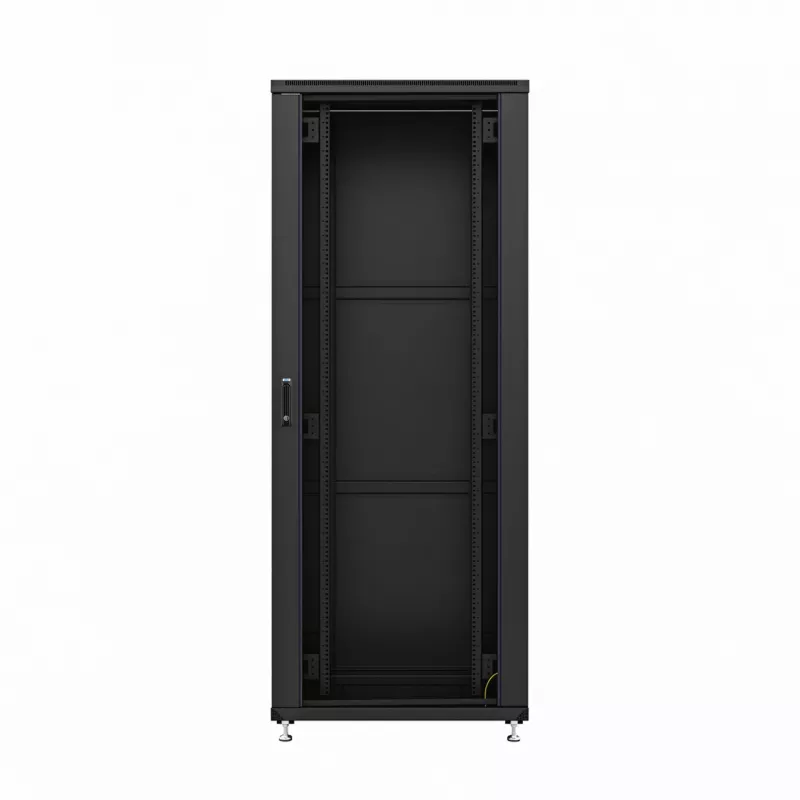

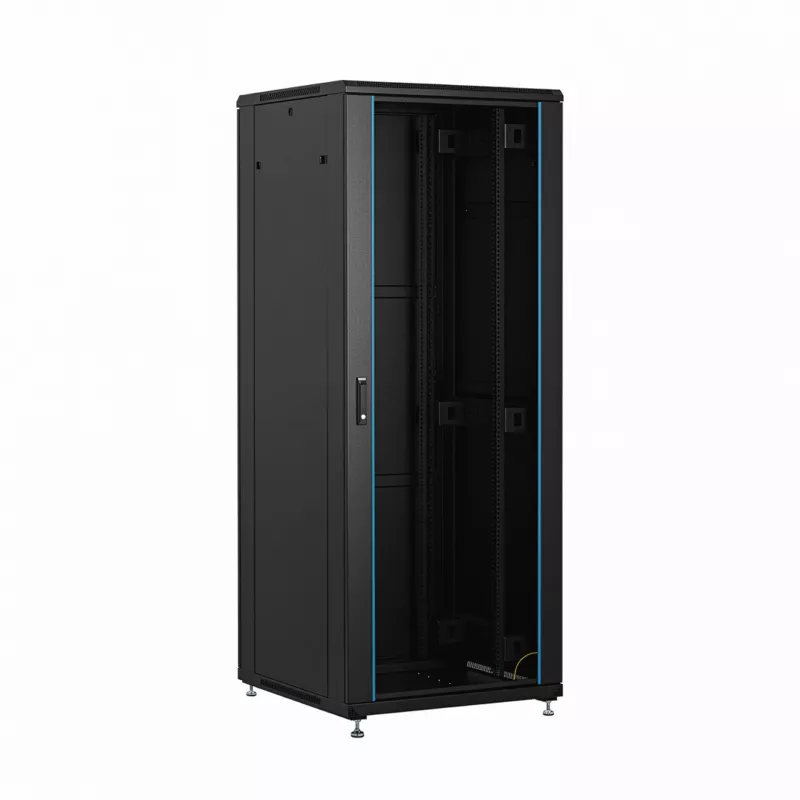

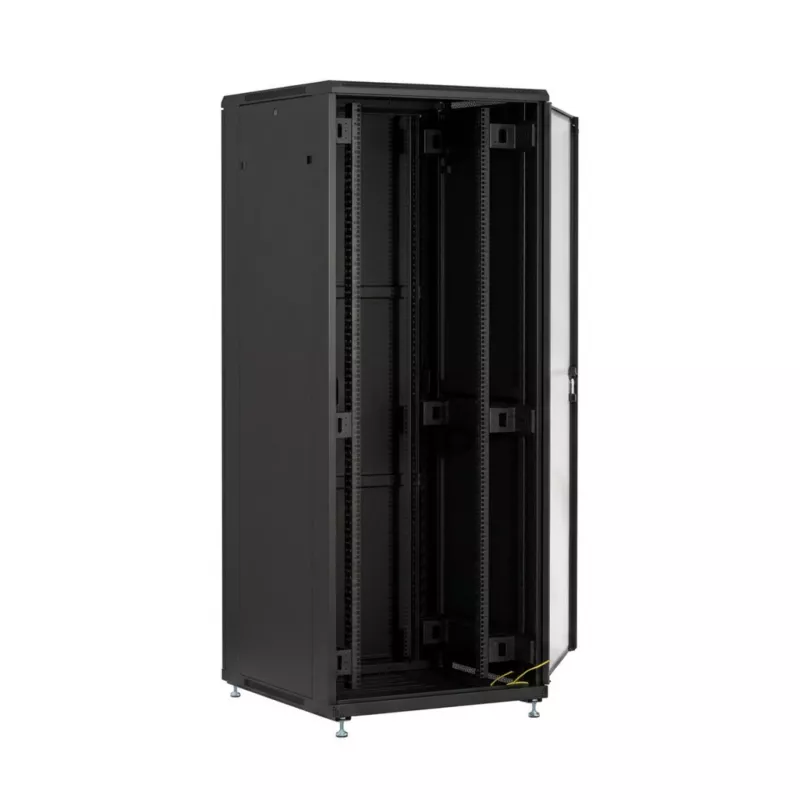

Organizing and securing network equipment in a compact space is a challenge. The EFB Elektronik PEL-2466TS.G1SV 19-inch network cabinet solves this by providing a robust, lockable enclosure with 24U of rack space, a tempered glass front door, and a solid steel rear door. Its 600x600 mm footprint fits neatly into server rooms, offices, or industrial environments, while the jet black finish (RAL 9005) ensures a professional look.

Who is it for

IT administrators, system integrators, and facility managers who need a freestanding rack for servers, switches, patch panels, and other 19-inch equipment. Ideal for small to medium installations where security and cable management are priorities.

Main features

• 24U height with adjustable mounting rails for flexible equipment placement
• Tempered glass front door for visibility and security
• Solid steel rear door and removable, lockable side panels
• Passive ventilation with provisions for active fan units
• Top and bottom cable entry for clean routing
• Pre-assembled construction with leveling feet and heavy-duty castors
• Static load capacity up to 800 kg

Specifications

• Rack standard: 19-inch
• External dimensions (WxDxH): 600 x 600 x 1280 mm
• Material: Steel
• Colour: Jet Black (RAL 9005)
• IP protection class: IP20
• Compliance: IEC 60297-3-100, DIN 41494

Tips

Use the adjustable leveling feet for uneven floors, and consider adding fan units if you plan to install high-heat equipment. The removable side panels make cable management easier during installation.
