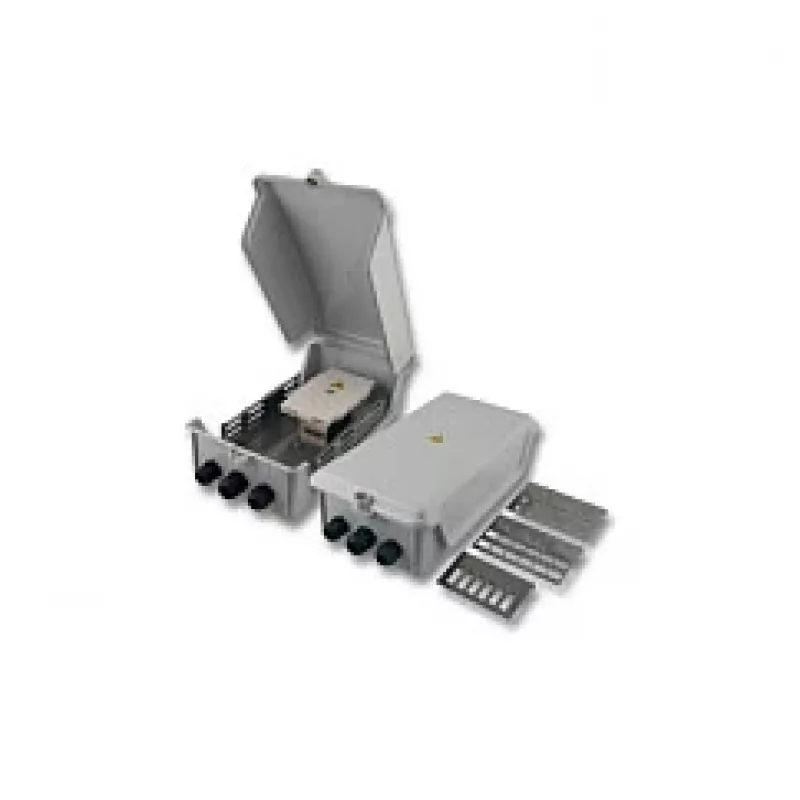

EFB IP54 Set de carcasa de empalme de fibra óptica con accesorios completos, 24 fibras, montaje en pared, gris claro RAL 7035

Unlike open splice trays or basic termination boxes, the EFB 53720.1 is a sealed, IP54-rated enclosure that arrives as a complete kit: housing, splice trays, cable glands, and mounting hardware in one box. It is built for installers who need a dependable, dust- and splash-proof splice point for up to 24 fibers in indoor or sheltered outdoor locations.

Highlights

• IP54 protection against dust and splashing water
• Supports up to 24 splices and 12 adapter slots (LC duplex or SC simplex)
• Wall-mountable ABS housing in light grey RAL 7035
• Includes splice protectors, cable ties, glands, and mounting material
• Integrated fiber routing guides and screw-fastened lid for secure closure

In daily use

The enclosure's compact design and pre-fitted cable entries (2x M20, 2x M25) simplify installation in tight spaces. The integrated routing guides keep fibers organized, while the screw-fastened lid prevents accidental opening. It works with both single-mode and multi-mode fiber, making it a flexible choice for FTTH, enterprise, or campus networks.

Full specifications

• IP protection class: IP54
• Mounting type: Wall mount
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Max. fiber capacity: 24 fibers
• Adapter slots: 12 (for LC Duplex or SC Simplex)
• Splice tray capacity: 24 splices
• Cable entry ports: 2x M20, 2x M25
• Supported cable diameter (M20): 5 - 10 mm
• Supported cable diameter (M25): 8 - 16 mm
• Operating temperature range: -20°C to +70°C
• Colour: Light grey (RAL 7035)
• Application environment: Indoor/Outdoor
• Included accessories: Splice protectors, cable ties, mounting material, cable glands
• Compatibility: Single-mode and Multi-mode fiber
• Standards compliance: RoHS, REACH
• Locking mechanism: Screw-fastened lid
• Cable management: Integrated fiber routing guides
• Design: Compact and robust
• Protection against: Dust and splashing water
• Housing type: Splice enclosure

Final note

The EFB 53720.1 is a practical, all-in-one splice enclosure that saves time and reduces the risk of missing parts on site. Its IP54 rating and robust ABS build make it a reliable choice for long-term fiber management.
