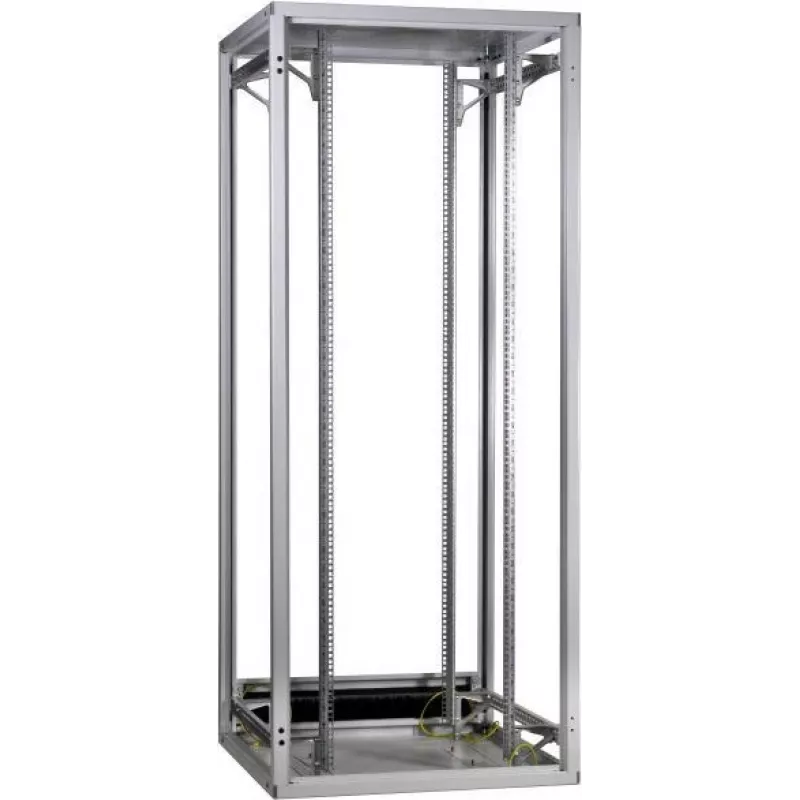

EFB PRO-4780GR.0D Armario de red 47U 800x1000mm RAL7035 gris claro

The EFB PRO-4780GR.0D is a high-quality 19-inch network cabinet designed for professional data center and server room environments. With 47U of rack space and dimensions of 800x1000mm, this freestanding cabinet offers ample space for servers, switches, and other network equipment. The cabinet is finished in RAL 7035 light grey and features perforated steel doors for optimal airflow and cooling.

Advantages

This network cabinet provides robust construction with a static load capacity of 1000 kg, ensuring reliable support for heavy equipment. The removable and lockable side panels allow easy access for installation and maintenance. The front and rear doors open 180 degrees, providing full access to the equipment. The cabinet is pre-assembled for quick deployment, saving time and effort.

Suitable for

• Data centers and server rooms requiring high-density rack mounting
• Network infrastructure for enterprise and industrial applications
• Installations needing secure and organized cable management

Key specifications

• Rack Units: 47U
• Rack Standard: 19 inch
• External Width: 800 mm
• External Depth: 1000 mm
• External Height: 2200 mm
• Color: RAL 7035 Light Grey
• Front Door: Perforated Steel, 1-point locking, 180° opening
• Rear Door: Perforated Steel, 1-point locking, 180° opening
• Side Panels: Removable and Lockable
• Static Load Capacity: 1000 kg
• Material: Sheet Steel
• Protection Class: IP20
• Cable Entry: Top and Bottom with brush strips
• Mounting Rails: 4x 19" Depth-Adjustable
• Included Accessories: Levelling Feet, Grounding Kit
• Roof Features: Prepared for Fan Units
• Delivery State: Pre-assembled

Recommendations

For optimal performance, ensure proper ventilation and use cable management accessories to maintain airflow. This cabinet is ideal for organizations looking for a reliable and scalable rack solution.
