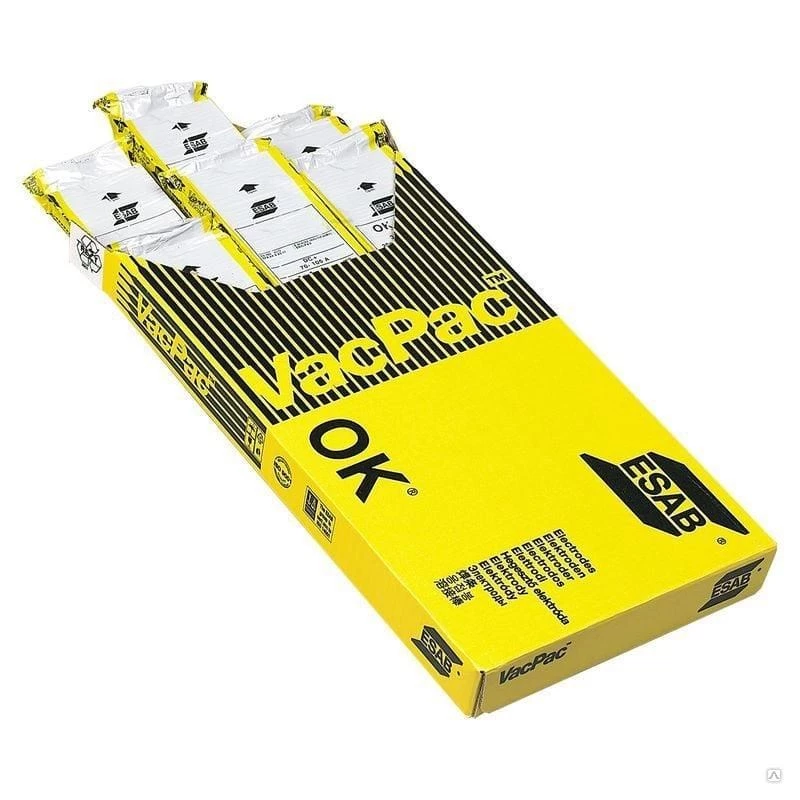

Electrodo de acero inoxidable ESAB OK 61.30 2,5 mm 1,5 kg (E316L-17)

The ESAB OK 61.30 is a high-quality stainless steel electrode designed for welding 316L, 316, and 317L type stainless steels. With a rutile-basic coating, it offers excellent weld metal properties and smooth arc characteristics. This electrode is ideal for applications in the chemical industry, shipbuilding, and food processing.

Advantages

Excellent weld metal quality with low carbon content (<0.03%) ensures high corrosion resistance. The rutile-basic coating provides stable arc, low spatter, and easy slag removal. Suitable for all welding positions except vertical down, with AC/DC+ current.

Suitable for

• Welding of 316L, 316, 317L stainless steels
• Chemical industry equipment
• Shipbuilding and offshore structures
• Food industry machinery

Key specifications

• Diameter: 2.5 mm
• Length: 300 mm
• Weight: 1.5 kg (pack)
• Classification: AWS E316L-17, EN ISO E 19 12 3 L R 12
• Yield Strength: >320 MPa
• Tensile Strength: 520-620 MPa
• Elongation: >35%
• Impact Strength: >47 J at +20°C

Recommendations

For optimal results, use clean base material and preheat if necessary. Store electrodes in a dry environment to prevent moisture absorption.
