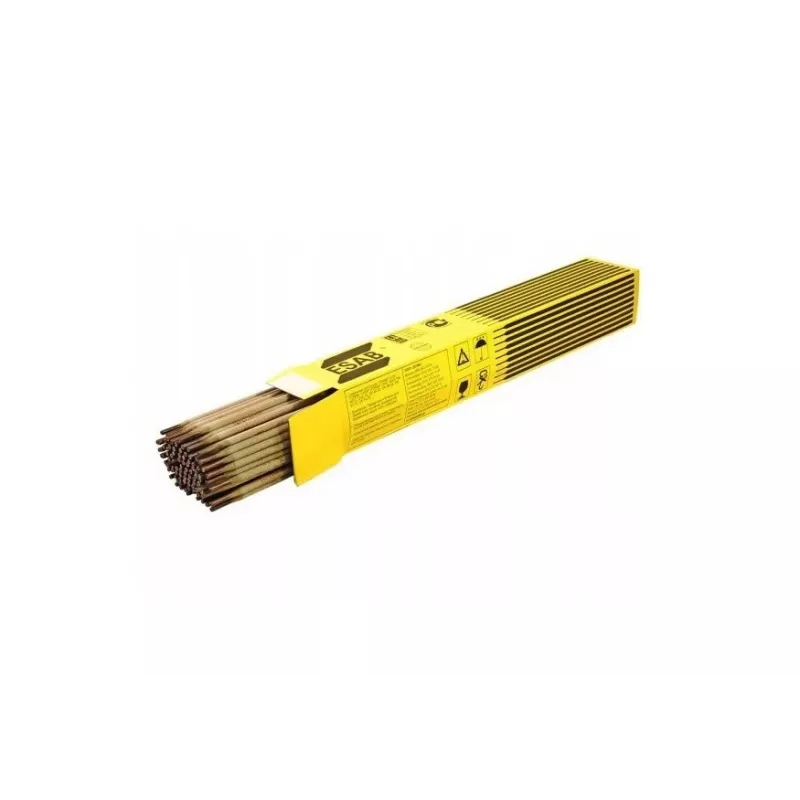

Electrodo de soldadura ESAB ELEKTRODE ER 150 2,5 mm 5 kg E6013 rutilo-básico

Welders in fabrication shops, construction sites, and shipyards rely on the ESAB ER 150 electrode for smooth, stable arcs and clean welds on mild and low-alloy steels. This 2.5 mm rutile-basic rod delivers all-position welding, including vertical-down, with easy slag removal and minimal spatter. The 5 kg pack keeps your workstation stocked for continuous production.

Key specifications

• Electrode type: Rutile-basic
• Classification: EN ISO 2560-A E 42 0 R 12, AWS A5.1 E6013
• Diameter: 2.5 mm, length: 300 mm
• Welding current: AC or DC+ (60–90 A typical for 2.5 mm)
• Mechanical properties: yield strength 420 MPa, tensile strength 510 MPa, elongation 24%
• Impact strength: 50 J at 0°C (Charpy V-notch)
• Pack weight: 5 kg

Why choose it

The ER 150 offers a stable, smooth arc with low spatter and a self-releasing slag that speeds up post-weld cleaning. Its rutile-basic coating ensures excellent weldability in all positions, making it a dependable choice for both production and repair work. No special re-drying is normally required—just store dry and re-dry at 100–110°C for 1 hour if exposed to moisture.

Ideal use cases

• General fabrication and structural steelwork
• Shipbuilding and repair
• Maintenance and repair of unalloyed and low-alloy steels
• Sheet metal work and light-gauge welding

Good to know

These electrodes are suitable for welding unalloyed and low-alloy steels. They perform well with both AC and DC+ power sources. The 5 kg pack is convenient for workshops with moderate to high consumption. Always follow standard welding safety practices and store electrodes in a dry place.
