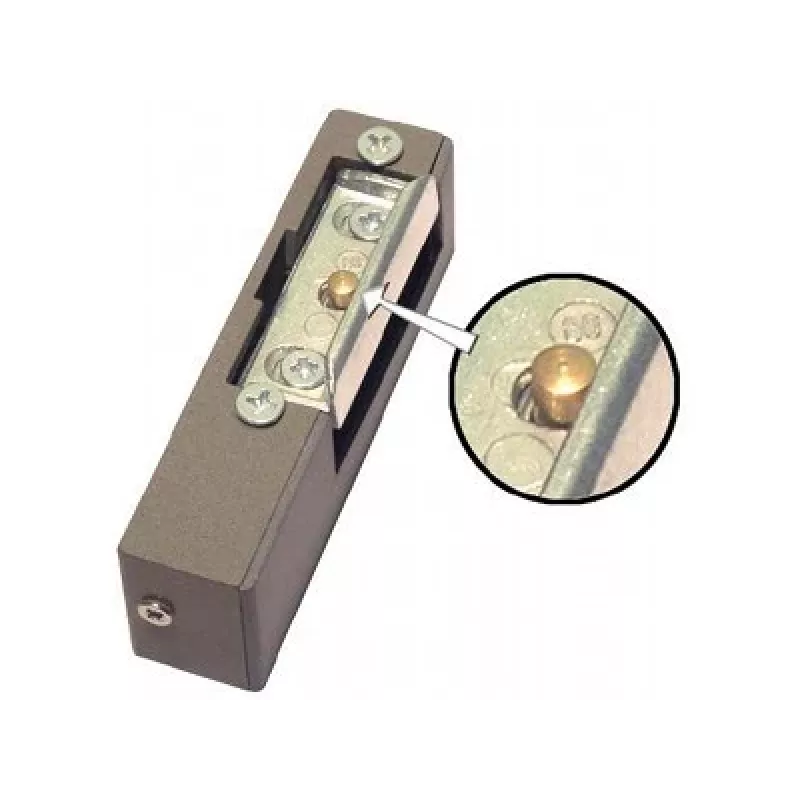

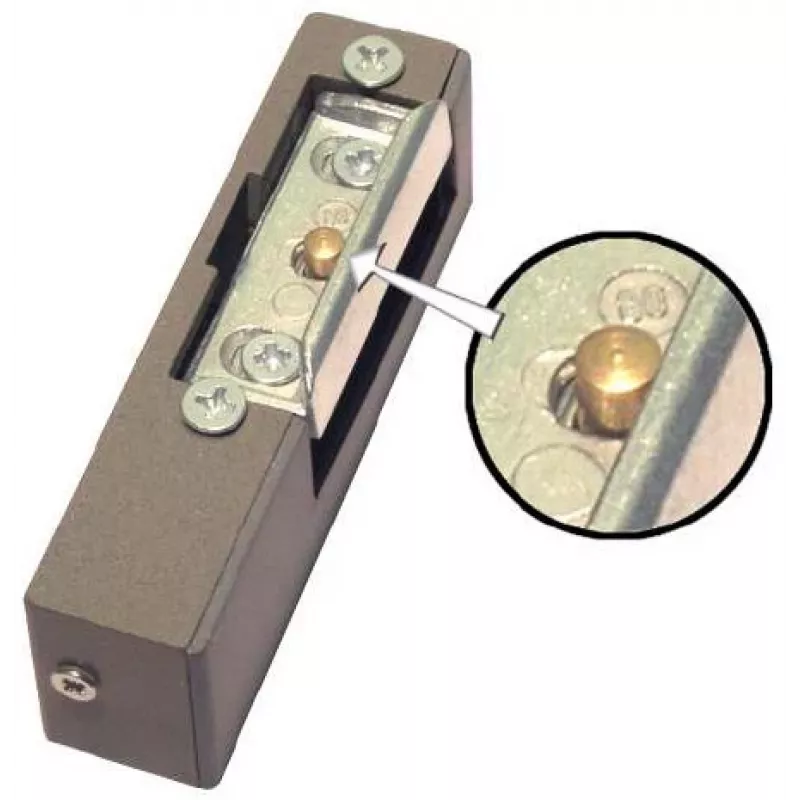

ELEKTRA-PLUS R3 cerradero eléctrico con memoria, sin bloqueo, derecho 2192

The ELEKTRA-PLUS R3 Electric Strike with Memory, Without Blockade, Right 2192 is a right-handed electric strike designed for door access control. It features a regulated latch with 3 mm adjustment to compensate for door play.

Key features

• Right-handed version
• With memory function
• Without blockade
• Regulated latch with 3 mm adjustment range

Specifications

• Brand: Elektra-Plus
• MPN: R3-12.30P
• Model: R3-12.30P
• External housing dimensions: 22 x 28 x 90 mm
• Weight: 0.20 kg
• Maximum weight of strike with faceplate: 0.40 kg
• Permissible door pressure during latch release: 30 N (3 kG)
• Permissible door load acting on strike: 3000 N (300 kG)
• Rated voltage U: 10 ± 2V * 24 ± 2V **
• Current I: AC 270-420 mA, DC 420-650 mA
• Permissible continuous operation time: 30 min.
