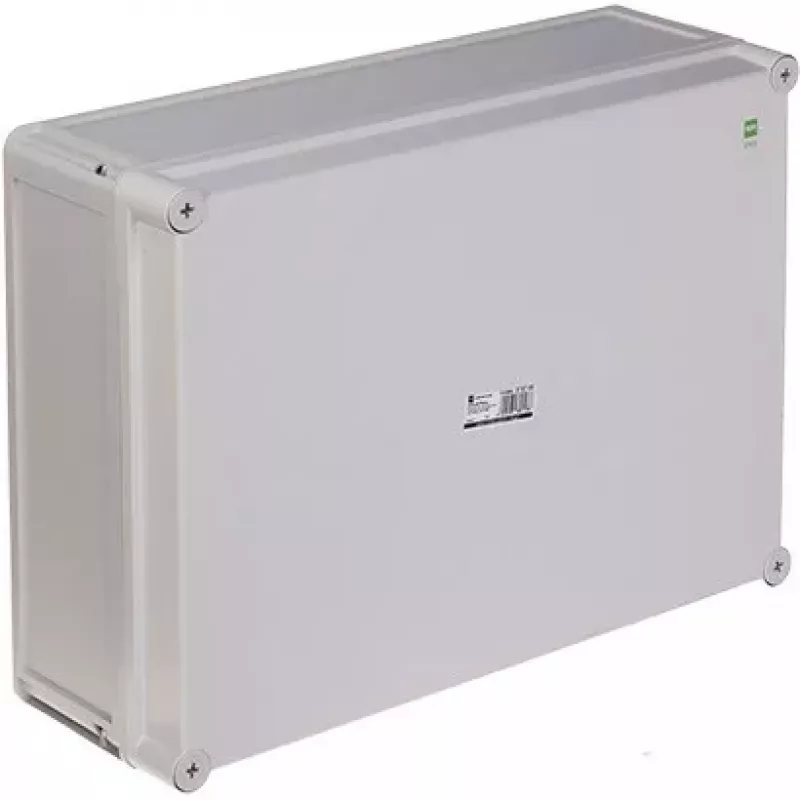

ELEKTRO-PLAST Caja hermética 440x330 IP65

The ELEKTRO-PLAST Hermetic Enclosure 440x330 IP65 is a robust and reliable solution for protecting electrical and electronic components in demanding environments. Manufactured from high-quality ABS material with a light grey (RAL 7035) finish, this enclosure offers excellent durability and resistance to impact, UV radiation, and temperature extremes. With an IP65 protection rating, it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor applications.

Advantages

This enclosure provides superior protection for your equipment, ensuring long-term performance and safety. The stainless steel lid screws and polyurethane gasket guarantee a secure and weatherproof seal. The wall-mountable design and internal mounting bosses for DIN rail or back plate offer flexible installation options. Additionally, the halogen-free material and UL94-HB flammability rating enhance safety in case of fire.

Suitable for

• Electrical junction boxes and distribution boards
• Control and automation systems
• Telecommunications and networking equipment
• Outdoor lighting and power distribution
• Industrial and commercial installations

Key specifications

• External Dimensions (L x W x H): 440 x 330 x 170 mm
• Internal Depth: 155 mm
• Protection Rating: IP65
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Lid Type: Opaque
• Lid Fastening: Stainless Steel Screws (6 screws)
• Gasket Material: Polyurethane (PU)
• Operating Temperature Range: -25°C to +60°C
• Impact Resistance: IK07
• Flammability Rating: UL94-HB
• Mounting Type: Wall Mountable
• Internal Mounting Options: Mounting bosses for DIN rail or back plate
• UV Resistance: Yes
• Certifications: CE, RoHS
• Material Properties: Halogen-free

Recommendations

For optimal installation, use appropriate wall anchors and ensure the enclosure is mounted on a flat, stable surface. When installing internal components, utilize the mounting bosses for secure attachment. This enclosure is ideal for applications requiring reliable protection against dust and water ingress.
