ELEKTRO-PLAST Caja IP INDUSTRIAL 252x352x142 SR1 EPN

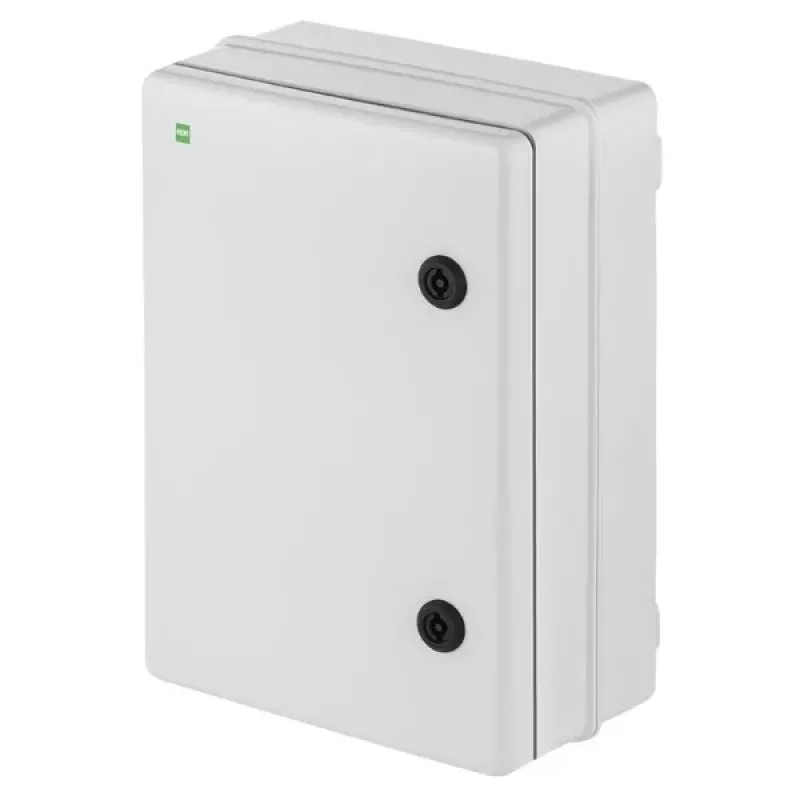

The ELEKTRO-PLAST IP Enclosure INDUSTRIAL 252x352x142 SR1 EPN is a robust and reliable industrial electrical enclosure designed for demanding environments. Manufactured from high-quality ABS material, this enclosure offers excellent protection against dust and water ingress with an IP65 rating, making it suitable for outdoor and harsh indoor applications. Its light grey (RAL 7035) color and screw-on opaque lid provide a professional appearance and secure sealing.

Advantages

This enclosure provides superior impact resistance (IK08) and UV stability, ensuring long-lasting performance in challenging conditions. The halogen-free, UL94-V0 rated material enhances safety by reducing fire risk. With internal bosses for DIN rail or mounting plate installation, it offers flexible mounting options for various components.

Suitable for

• Electrical installations in industrial automation
• Telecommunications equipment housing
• Control systems and junction boxes
• Outdoor and harsh environment applications

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Ingress Protection: IP65
• Impact Protection: IK08
• External Dimensions (L x W x H): 352 x 252 x 142 mm
• Color: Light Grey (RAL 7035)
• Lid Type: Opaque, Screw-on
• Lid Screw Material: Polyamide (Plastic)
• Gasket Material: Polyurethane (PU)
• Operating Temperature: -35°C to +70°C
• Flammability Rating: UL94-V0
• UV Resistant: Yes
• Halogen Free: Yes
• RoHS Compliant: Yes
• Mounting: Wall mountable with external lugs/internal bosses
• Series: SR1

Recommendations

For optimal installation, use appropriate cable glands and mounting accessories. Ensure the gasket is properly seated before closing the lid to maintain IP65 protection. This enclosure is ideal for protecting sensitive electronic equipment in industrial settings.
