EMITER Caja de distribución de conexión AC hermética IP65 con protección contra sobretensiones Noark Type 2, 2x25A 3 fases

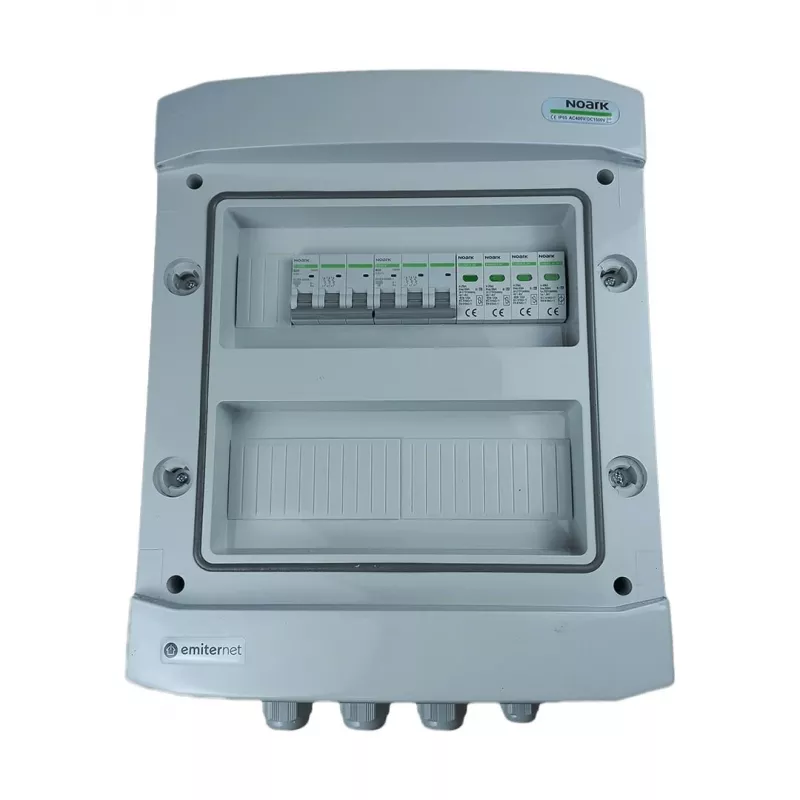

The EMITER Hermetic AC Connection Distribution Board is a robust and reliable solution for protecting electrical installations in demanding environments. With an IP65 rating, it is fully sealed against dust and water jets, making it ideal for outdoor or industrial applications. This distribution board integrates a Noark Type 2 surge protection device (SPD) to safeguard connected equipment against transient overvoltages.

Advantages

Hermetic IP65 enclosure ensures long-lasting performance in harsh conditions. The integrated Type 2 SPD provides effective protection against lightning-induced surges. Compact design with 12 DIN modules allows flexible configuration. Easy surface mounting and double insulation (Class II) enhance safety.

Suitable for

• Outdoor power distribution in commercial and industrial facilities
• Agricultural buildings, workshops, and construction sites
• Telecommunication and infrastructure projects requiring high ingress protection
• Any installation where dust, moisture, or water ingress is a concern

Key specifications

• Product Type: AC Connection Distribution Board
• Enclosure Protection: IP65 (Hermetic)
• Phase Configuration: 3-Phase
• Rated Current: 2x 25A (Total 50A)
• Integrated SPD: Yes, Type 2 by Noark
• Rated Voltage: 400V AC
• Enclosure Material: ABS Plastic
• Mounting: Surface Mount
• DIN Modules: 12
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Protection Class: II (Double Insulated)
• Operating Temperature: -25°C to +40°C
• Standards: CE

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Verify that the total load does not exceed the rated current. The integrated SPD should be checked periodically for end-of-life indication.
