EMITER Cuadro eléctrico conectado DCAC hermético IP65 con pararrayos DC Noark 1000V Tipo 2, 2 x string PV, 2 x MPPT // AC Noark Tipo 2, 10A 3 fases

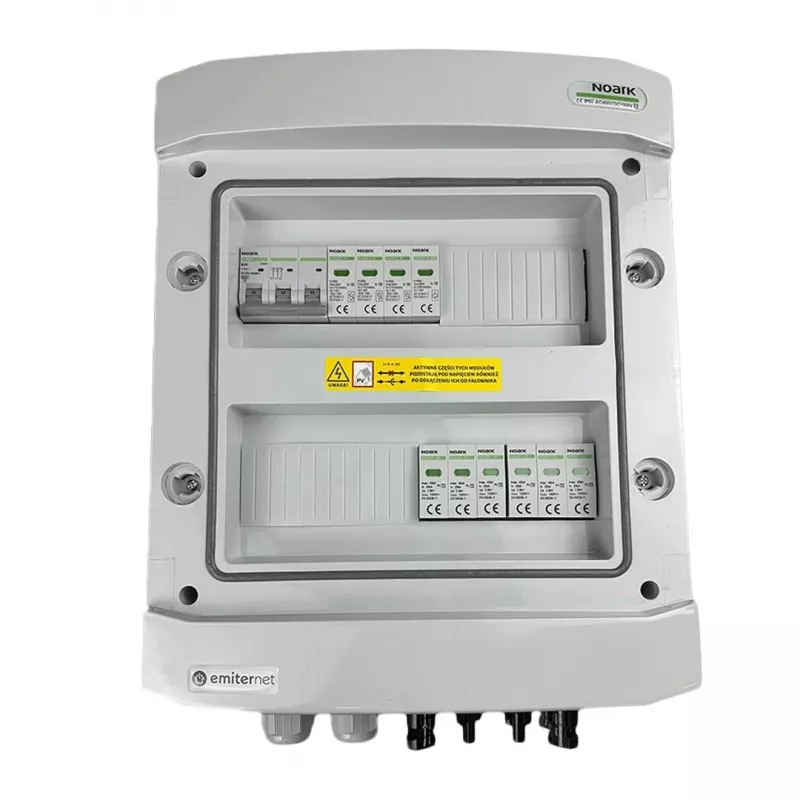

The EMITER Switchgear Attached DCAC Hermetic IP65 is a robust and reliable PV combiner box designed for solar photovoltaic systems. It integrates both DC and AC surge protection, ensuring comprehensive safety for your solar installation. With a hermetic IP65 enclosure, it is weatherproof and suitable for outdoor use.

Advantages

This switchgear combines DC and AC protection in one unit, simplifying installation and reducing costs. The hermetic IP65 enclosure provides excellent protection against dust and water ingress, making it ideal for harsh environments. It includes a DC disconnect switch and AC breaker for safe maintenance.

Suitable for

• Solar photovoltaic systems with up to 2 PV strings and 2 MPPT inverters
• Outdoor installations requiring weatherproof equipment
• Systems with 3-phase AC output up to 10A

Key specifications

• Brand: EMITER
• Model: EM-98N_DCAC
• DC Input: 2 PV Strings
• MPPT Compatibility: 2 MPPT Inverters
• Max DC System Voltage: 1000 V
• DC Surge Protection: Type 2, Noark
• AC Configuration: 3-Phase
• Max AC Current: 10 A
• AC Surge Protection: Type 2, Noark
• Enclosure Rating: IP65, Hermetic
• Operating Temperature: -25°C to +60°C
• Mounting: Wall-mountable

Recommendations

Ensure proper installation by a qualified electrician. Verify system voltage and current ratings before use. Regular inspection of surge arresters is recommended for continued protection.
