EMITER Cuadro eléctrico conectado AC Caja de distribución hermética IP65 con protector contra sobretensiones Noark Tipo 2, 40A trifásico, diferencial Tipo A 40A/300mA

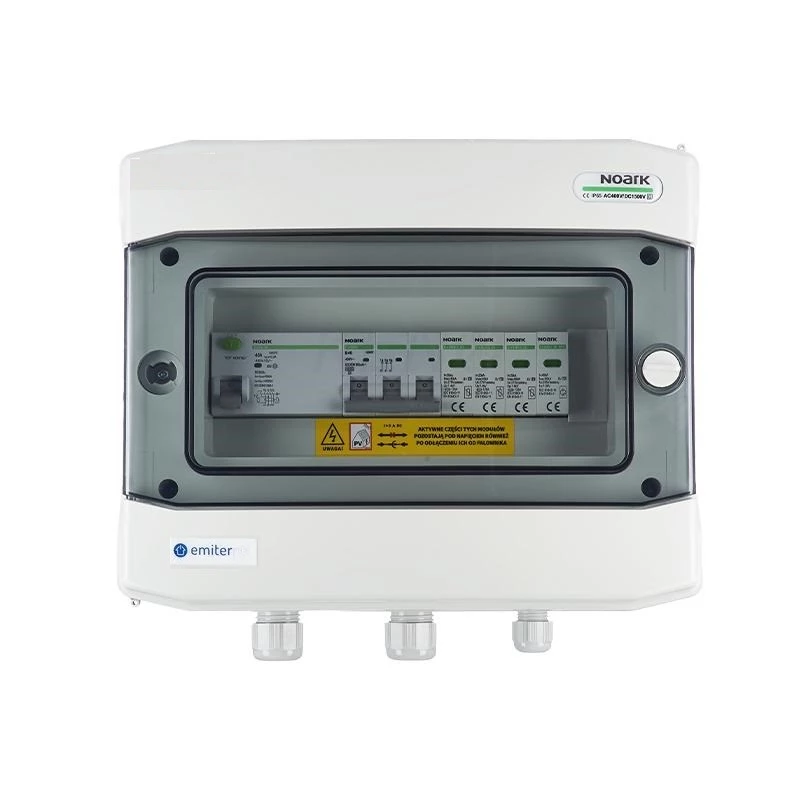

The EMITER EM-453N_AC is a high-quality AC electrical distribution board designed for reliable protection and distribution in industrial and commercial environments. This hermetic IP65 enclosure houses a complete switchgear assembly including a Type 2 surge protective device (SPD) and a Type A residual current device (RCD), both from the reputable brand Noark. With a 40A nominal current rating and 3-phase configuration, it ensures safe and efficient power management.

Advantages

This distribution board offers robust protection against overvoltages and earth faults, thanks to the integrated Noark SPD and RCD. The IP65 rating makes it suitable for outdoor or harsh indoor environments, protecting against dust and water jets. The compact 4-module design saves space while providing essential functionality.

Suitable for

• Industrial control panels
• Commercial building power distribution
• Outdoor electrical installations
• Renewable energy systems
• Infrastructure projects requiring reliable surge and fault protection

Key specifications

• Brand: EMITER
• Model: EM-453N_AC
• Product Type: AC Electrical Distribution Board
• Enclosure Ingress Protection: IP65
• Enclosure Material: ABS
• Number of Phases: 3-Phase
• Nominal Current Rating: 40A
• Rated Operating Voltage: 230/400V AC
• RCD Type: Type A
• RCD Rated Current: 40A
• RCD Rated Residual Operating Current (IΔn): 300mA
• SPD Type: Type 2
• SPD Maximum Continuous Operating Voltage (Uc): 275V AC
• SPD Nominal Discharge Current (In): 20kA
• SPD Maximum Discharge Current (Imax): 40kA
• Internal Components Brand: Noark
• Mounting Type: Surface Mount (Wall Mount)
• Terminal Type: Screw Terminals
• Number of DIN Modules: 4
• Operating Temperature Range: -25°C to +55°C
• Standards Compliance: IEC 61439-3, IEC 61008, IEC 61643-11

Recommendations

For optimal performance, ensure installation by a qualified electrician. This distribution board is designed for fixed installations and should be used within the specified electrical ratings. Regular inspection is recommended to maintain protection integrity.
