EMITER Cuadro eléctrico conectado DC Hermetic IP65 EMITTER con protector contra sobretensiones DC Noark 1000V Tipo 2, 4x string PV, 4x MPPT

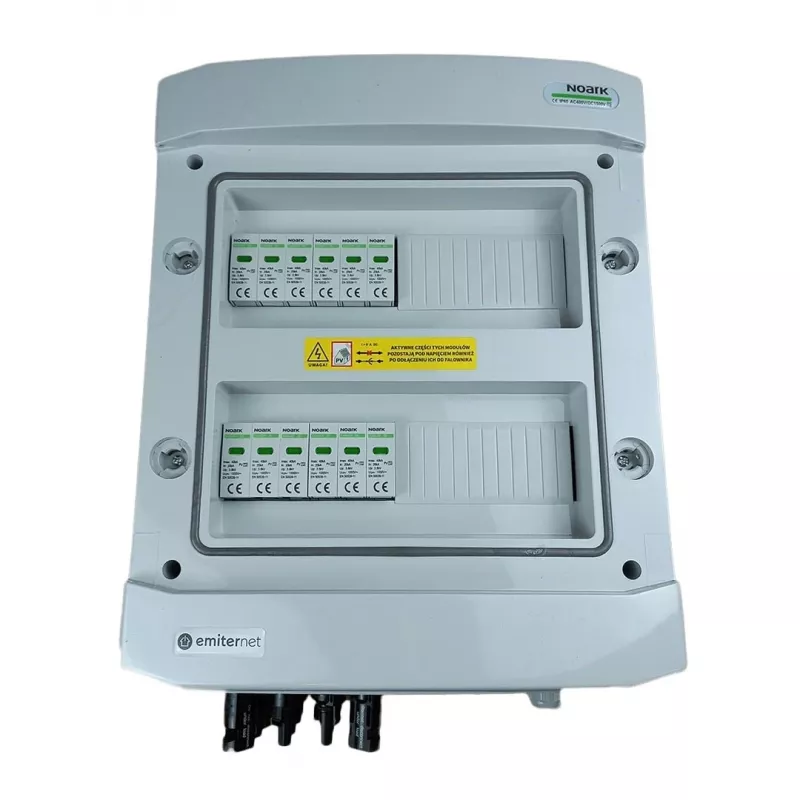

The EMITER Switchgear Attached DC Hermetic IP65 EMITTER is a high-performance DC PV string combiner box designed for solar photovoltaic systems. It integrates a Noark 1000V Type 2 DC surge arrester, providing robust protection against overvoltage and short circuits. With 4 PV string inputs and 4 MPPT outputs, this unit is pre-wired and wall-mountable, featuring a hermetic IP65-rated enclosure for outdoor use.

Advantages

This combiner box offers reliable surge protection with a Type 2 SPD from Noark, ensuring long-term system safety. The hermetic IP65 design protects against dust and water ingress, making it ideal for harsh environments. Pre-wired with MC4 compatible connectors, installation is quick and straightforward.

Suitable for

• Solar photovoltaic systems requiring DC string combining
• Outdoor installations needing high ingress protection
• Systems with up to 4 PV strings and 4 MPPT inputs

Key specifications

• Product Type: DC PV String Combiner Box
• Max System Voltage: 1000 V DC
• Number of PV Strings (Input): 4
• Number of MPPT Outputs: 4
• Surge Protection Device: Yes, Type 2, Noark
• Ingress Protection: IP65, Hermetic
• DC Disconnector: Yes
• Fuses per String: Yes, DC gPV fuses
• Enclosure Material: UV-resistant Polycarbonate
• Connection Type: MC4 compatible connectors
• Mounting: Wall-mountable
• Operating Temperature: -25°C to +60°C
• Standards: IEC 61439-2

Recommendations

For optimal performance, ensure proper grounding and follow local electrical codes. This combiner box is designed for professional installation by qualified personnel.
