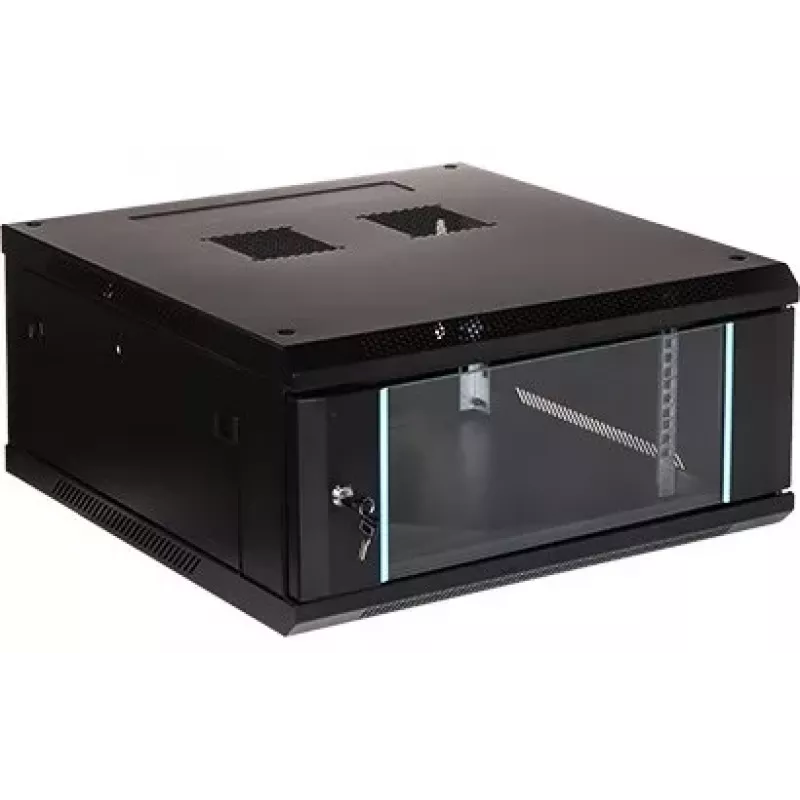

EPRADO-R19-4U/600-BLUE armario rack de pared 4U 19" 600 mm de profundidad azul

The EPRADO-R19-4U/600-BLUE is a high-quality 4U wall mount rack cabinet designed for secure and organized installation of 19-inch network and IT equipment. With a depth of 600 mm and a robust SPCC cold rolled steel construction, this rack offers reliable performance and durability. The blue powder-coated finish provides a distinctive appearance suitable for various environments.

Advantages

This wall mount rack cabinet features a tempered glass front door with lock, removable side panels with locks, and cable entry points at the top and bottom with brush strips for effective cable management. It supports a static load capacity of 60 kg and includes passive ventilation through perforated top and bottom panels. The welded frame ensures structural integrity, and the included accessories (2 keys, mounting screws, and 10 sets of cage nuts) facilitate quick installation.

Suitable for

• Network switches, patch panels, and small servers
• IT equipment requiring secure wall-mounted storage
• Data closets, offices, and industrial environments

Key specifications

• Rack Standard: 19-inch
• Rack Units: 4U
• External Dimensions (W x D x H): 550 x 600 x 235 mm
• Internal Usable Depth: 520 mm
• Material: SPCC Cold Rolled Steel
• Color: Blue
• Mounting Type: Wall Mount
• Front Door: Tempered Glass with Lock
• Side Panels: Removable with Locks
• Cable Entry: Top and Bottom with Brush Strips
• Ventilation: Passive (Perforated Top/Bottom)
• Load Capacity: 60 kg (Static)
• Protection Rating: IP20
• Finish: Powder Coated
• Construction: Welded Frame
• Included Accessories: 2 Keys, Mounting Screws, Cage Nuts (10 sets)
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure the wall mount is securely anchored to a solid wall capable of supporting the total weight of the cabinet and equipment. Use the included cage nuts and screws for proper mounting of 19-inch devices. This rack is ideal for organizing network equipment in space-constrained areas.
