Eq-3 154434A0

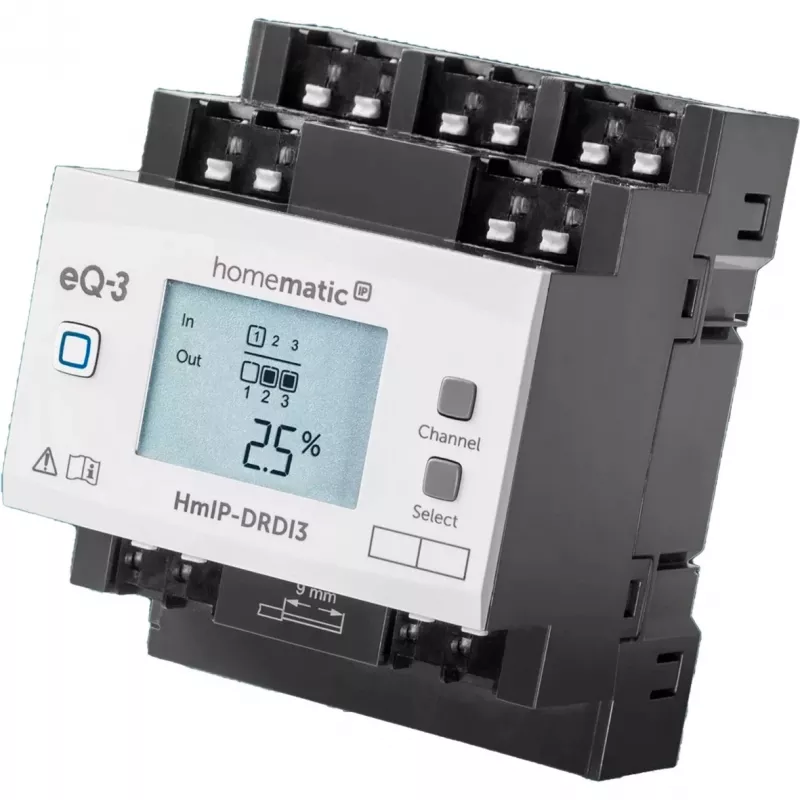

The EQ-3 154434A0 is a versatile dimmer trigger designed for DIN-rail mounting, enabling centralized dimming control of up to three lights directly from the distribution board. Its robust housing ensures professional yet straightforward installation on standard DIN rails, offering flexible control via conventional 230 V push-buttons, wireless Homematic IP push-buttons or remote controls, and convenient smartphone app operation.

Key features

• Controls up to three lights from the distribution board via DIN-rail mounting
• Supports phase-cut dimming for LED, incandescent, dimmable energy-saving, HV halogen, and NV halogen lamps
• Operates with 230 V AC input at 50 Hz
• Offers multiple control options: 230 V push-buttons, Homematic IP wireless push-buttons/remotes, and smartphone app
• Compact dimensions: 72 mm width, 69 mm depth, 90 mm height
• CE certified for compliance with European standards
