Equip 332725 conmutador de vídeo HDMI

The Equip HDMI 2.0 Switch 3x1 (Video switch HDMI Equip 332725) lets you switch conveniently between three HDMI input sources — for example DVD/Blu‑Ray players, game consoles, streaming sticks/boxes or digital receivers — using the included remote control, automatic input recognition, or the manual button on the unit. Constructed with an aluminium housing and CE certified, the switch supports Ultra HD 4K at up to 60 Hz and has compact dimensions (70 mm × 20 mm × 125 mm) in a black finish.

Advantages

The device eliminates the need to reconnect cables when changing sources and provides straightforward operation via remote control, intelligent automatic switching or manual selection. Its aluminium casing offers durability while the small footprint simplifies installation in entertainment centres or behind displays. Support for 4K (60 Hz) ensures compatibility with high-resolution content and modern HDMI sources.

Suitable for

• Home theatre systems with multiple HDMI sources
• Gaming setups with several consoles
• TVs or monitors used with streaming boxes or sticks
• Presentations or meeting rooms requiring quick source changes

Key specifications

• Model: Equip 332725 (HDMI 2.0 Switch 3x1)
• Inputs: 3 × HDMI
• Output: 1 × HDMI
• Max resolution/refresh: Ultra HD 4K @ 60 Hz
• Housing: aluminium
• Colour: Black
• Dimensions: 70 mm (W) × 20 mm (D) × 125 mm (H)
• Certifications: CE
• Control: IR remote, automatic switching, manual button

How to use

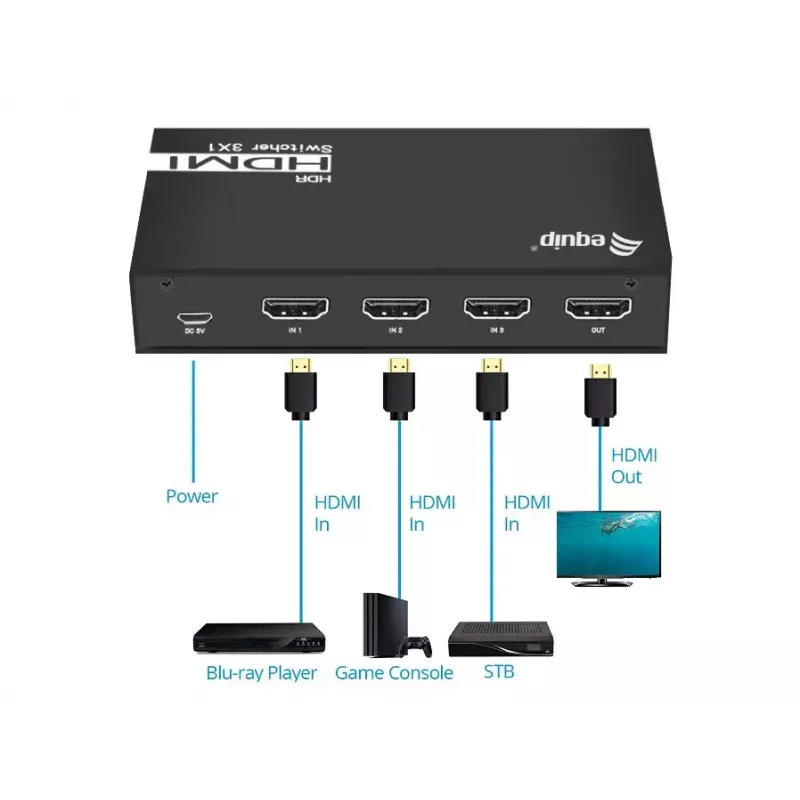

Connect up to three HDMI source devices to the HDMI input ports on the switch and connect the HDMI output to your TV or monitor. Power the switch if an external power supply is required (check the unit for a power input). Use the remote control to select the active source, rely on the automatic input recognition to switch when a new device becomes active, or press the manual button on the unit to change sources.

Recommendations

For stable 4K@60 Hz performance, use high-quality HDMI cables rated for HDMI 2.0 or higher and avoid long cable runs. Place the switch in a well-ventilated location and ensure the connected devices are set to compatible output resolutions.
