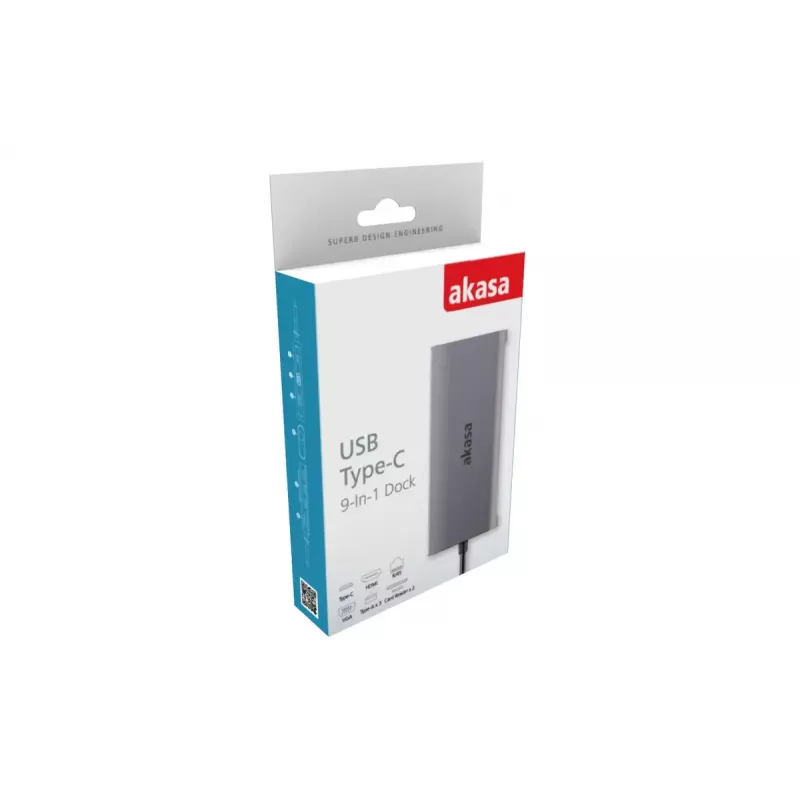

Estación de acoplamiento Akasa USB Type-C 9-in-1

The Akasa USB Type-C 9-In-1 Dock is a compact multi-port USB-C hub that expands a laptop or compatible device with HDMI, VGA, Gigabit Ethernet, three USB-A ports, SD and microSD card readers, and 100W USB-C power delivery. Its aluminium housing and small footprint make it suitable for travel and everyday workstation use, while plug-and-play support ensures easy setup without drivers.

Advantages

The dock integrates nine interfaces in a single adapter, enabling 4K HDMI output, 1080p VGA output, 1 Gbps RJ45 Ethernet, and three USB 3.0 Type-A ports (up to 5 Gbps). It supports 100W USB-C power pass-through to charge laptops while connected and allows simultaneous use of SD and microSD cards. The lightweight aluminium body, reversible USB-C connector and included carrying pouch provide portability and physical protection.

Suitable for

• Connecting a laptop to an external monitor, projector or HDTV (HDMI 4K@30Hz, VGA 1080p@60Hz)
• Stable wired network access for browsing, gaming and large downloads (Gigabit Ethernet)
• High-speed data transfer and connecting peripherals via USB-A (USB 3.0, up to 5 Gbps)
• Reading and writing SD and microSD memory cards simultaneously

Key specifications

• Host interface: USB Type-C input
• USB-C PD output: PD 2.0, up to 100W
• HDMI output: up to 3840×2160@30Hz
• VGA output: up to 1920×1080@60Hz (when used simultaneously with HDMI max synchronous output is 1080p)
• RJ45 Ethernet: 10/100/1000 Mbps
• USB-A outputs: 3 × USB 3.0 (theoretical up to 5 Gbps)
• Card readers: 1 × SD, 1 × microSD (can read two cards simultaneously)
• Dimensions: 108 × 49 × 17 mm; cable length: 180 mm
• Material / colour: aluminium

How to use

Connect the dock to a compatible device using the built-in USB-C cable. If you need to charge your laptop while using the dock, connect a USB-C PD charger to the dock’s USB-C PD port. Attach displays via HDMI or VGA and peripherals to the USB-A ports. Insert SD and/or microSD cards into the respective slots to access files. The adapter supports plug-and-play operation on supported operating systems; no driver installation is required for typical use.

Recommendations

For best performance, connect the dock to a computer USB-C port that supports USB 3.0/3.1 Gen 1 and, when using high display resolutions or multiple peripherals, use a 100W PD charger to ensure sufficient power. Note that simultaneous HDMI and VGA output may be limited to 1080p.
