Estación de acoplamiento DeLOCK USB Type-C para 4 x SATA HDD / SSD - bahías de acoplamiento HDD: 4 - 2.5 / 3.5 compartidas (6,4 cm/8,9 cm compartidas)

The DeLOCK 63930 storage drive docking station is a compact and versatile solution for accessing 2.5" and 3.5" HDDs and SSDs. It connects to a host system via USB 3.2 Gen 1 Type-B, supporting data transfer rates up to 5 Gbit/s. The unit includes LED indicators for power and drive status and accepts a wide AC input voltage range, making it suitable for varied power environments. Its black casing and small footprint (127 mm x 166 mm x 65 mm) allow easy placement on a desk or in a small workspace.

Advantages

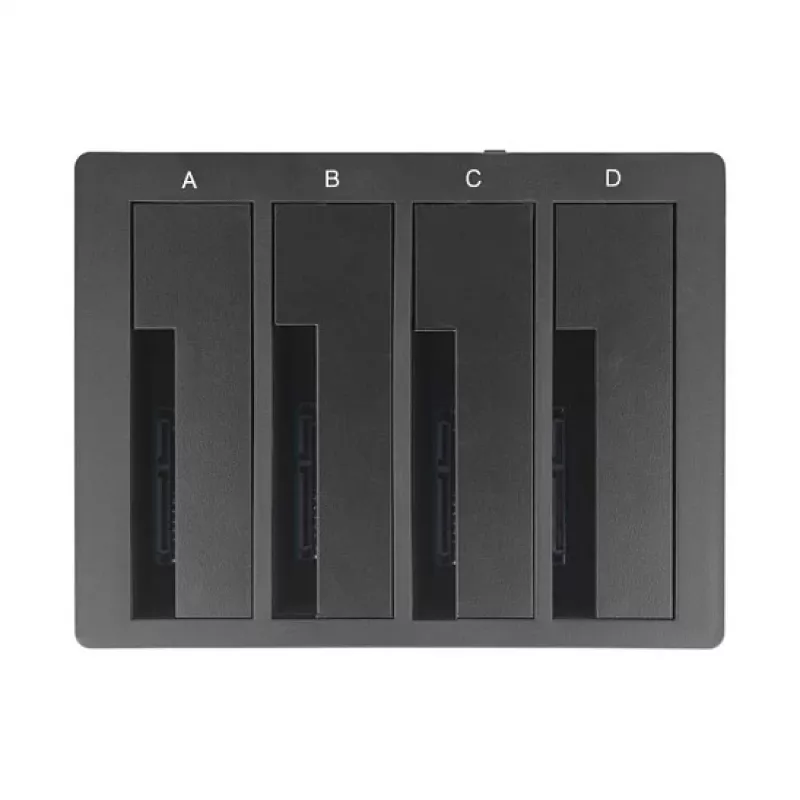

The docking station supports both 2.5" and 3.5" drive formats in a single bay, enabling quick swapping of internal drives without external enclosures. USB 3.2 Gen 1 connectivity provides high-speed data transfer for backup, cloning or file access tasks. LED indicators give clear visual feedback about power and drive activity. The wide AC input voltage range ensures compatibility with different mains supplies, and the compact design reduces workspace clutter.

Suitable for

• Data backup and recovery tasks
• Transferring large files between internal drives and a PC
• Cloning or imaging HDDs and SSDs
• Temporary access to drives removed from laptops or desktops
• IT maintenance and drive diagnostics

Key specifications

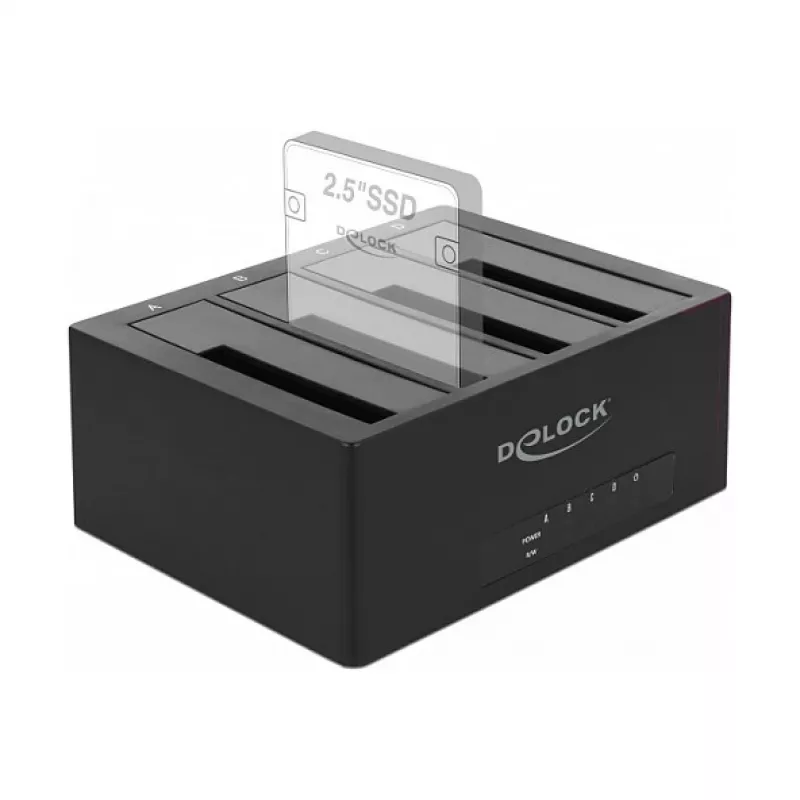

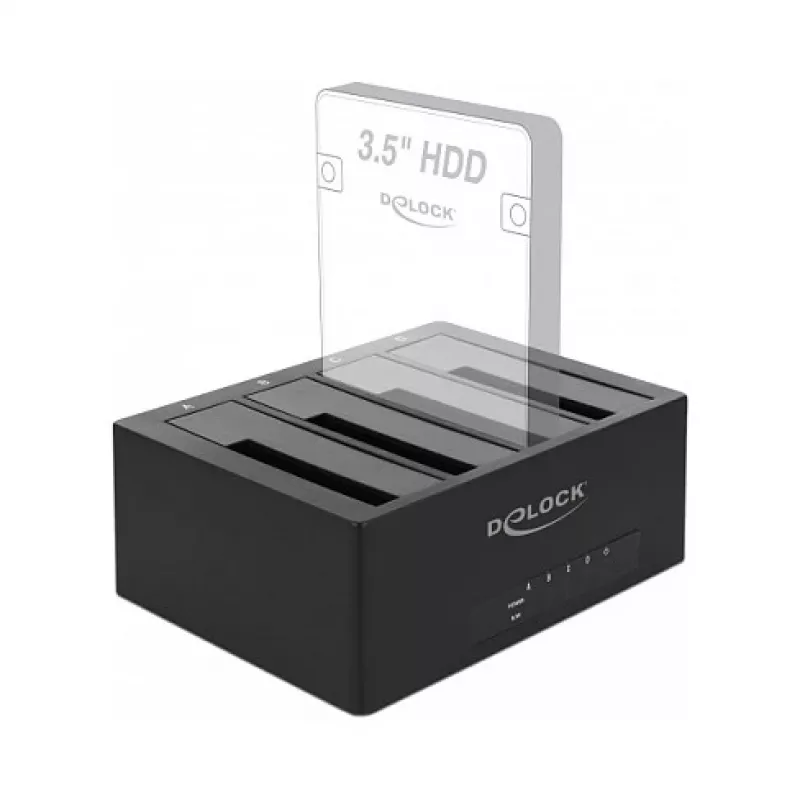

• Supported drive types: 2.5" and 3.5" HDD, 2.5" SSD
• Interface to host: USB 3.2 Gen 1 Type-B (up to 5 Gbit/s)

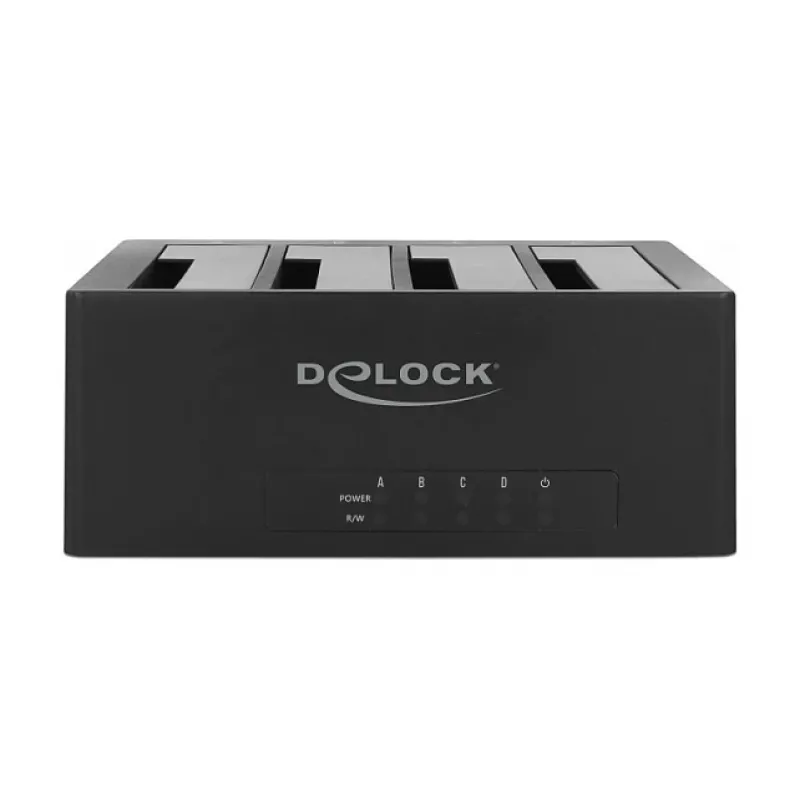

• LED indicators: power and drive status
• AC input voltage: 100 - 240 V
• Colour: Black
• Dimensions (W x D x H): 127 mm x 166 mm x 65 mm

How to use

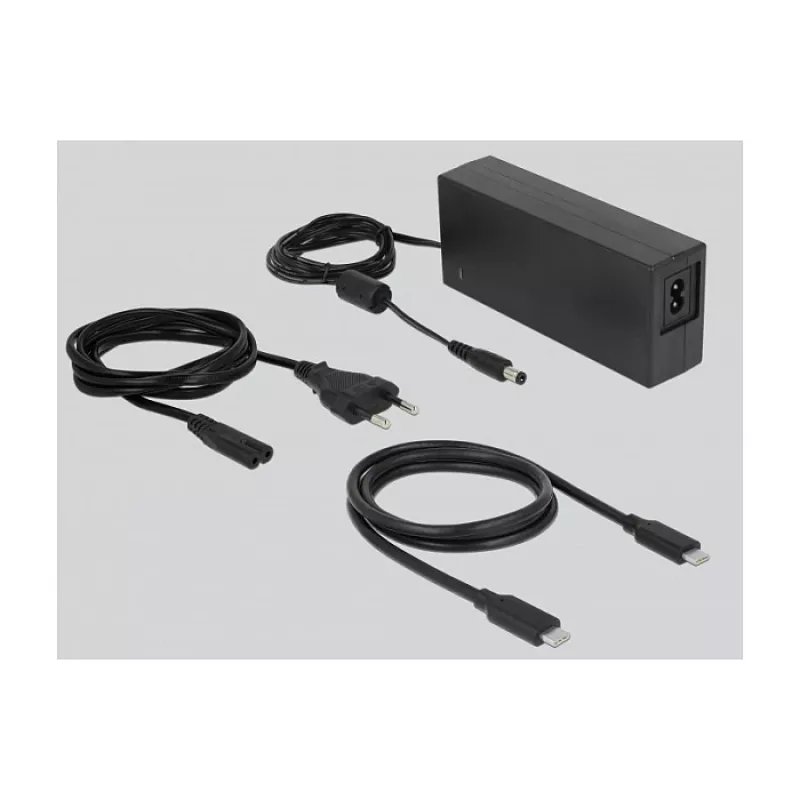

Place the docking station on a stable surface and connect the supplied power adapter to a compatible AC outlet. Insert a 2.5" or 3.5" drive into the bay, ensuring it is seated securely. Connect the docking station to your computer using a USB 3.2 Gen 1 Type-B cable. After the operating system recognises the device, the drive appears as an external storage volume ready for file operations, backups or cloning. Use standard OS tools or third-party utilities for formatting, imaging or copying data as required. Always use the OS eject/safe removal procedure before disconnecting the drive.

Recommendations

For reliable operation, use a quality USB 3.2 Gen 1 cable and connect to a USB port that supports the advertised transfer rate. Avoid moving the docking station while a drive is active. For frequent cloning or extended write tasks, ensure proper ventilation around the unit to help dissipate heat from installed drives.
