Base de acoplamiento DeLOCK 64138

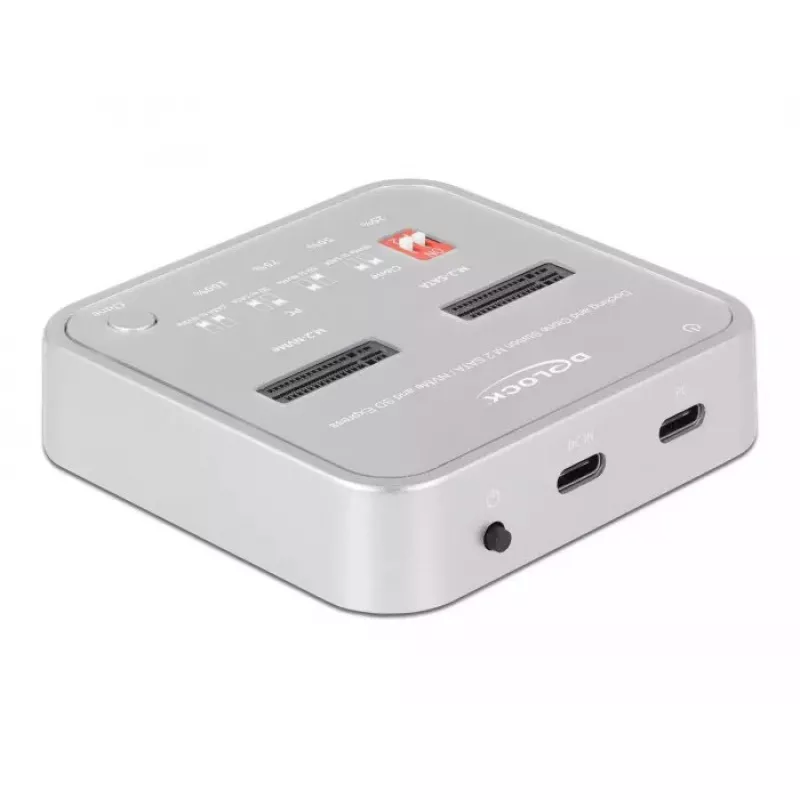

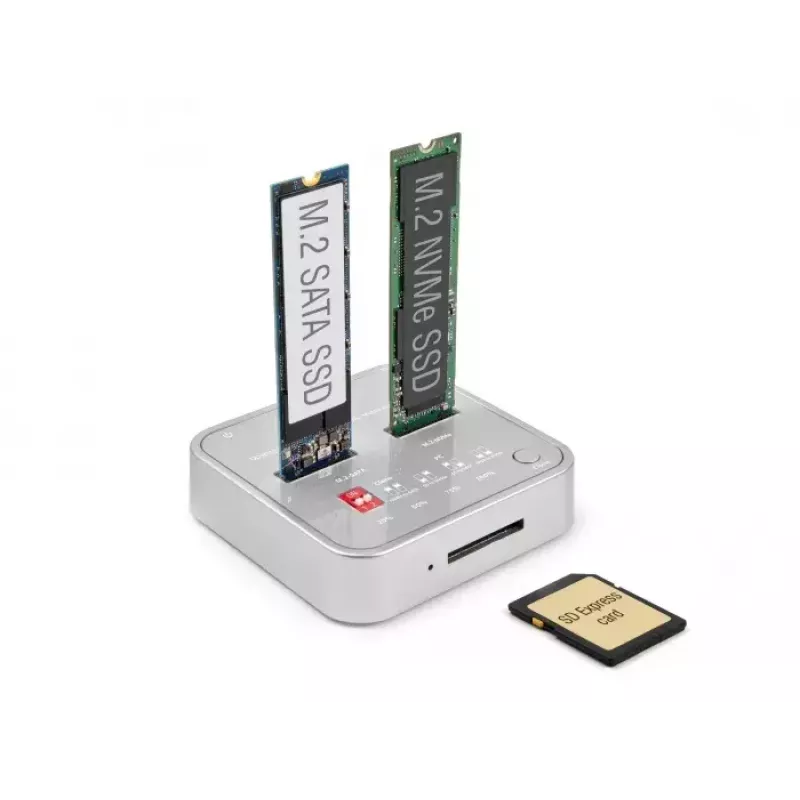

The DeLOCK 64138 docking station supports installation of one M.2 NVMe SSD, one M.2 SATA SSD and an SD Express memory card, and connects to a PC, laptop, tablet or smartphone via USB. The package includes USB cables for connection and a power supply that connects to the USB-C™ power connector to supply the docking station and all connected media. The compact silver housing (76 × 79 × 18 mm) allows quick installation of drives without tools.

Advantages

This docking station reads and writes SD Express (SD 7.1) cards, and is also compatible with SD, SDHC and SDXC cards with UHS-I and UHS-II. All three memory slots (NVMe, SATA, SD Express) can be used simultaneously. A built-in hardware clone function enables drive-to-drive cloning without a PC, supporting cloning directions such as NVMe→SATA, SD→NVMe, SD→SATA and SATA→NVMe. The robust, tool-free design allows fast swapping of SSDs.

Suitable for

• Transferring and accessing data from M.2 NVMe and M.2 SATA SSDs
• Reading and writing SD Express, SD, SDHC and SDXC memory cards (UHS-I/UHS-II)
• Creating direct clones between connected media without a computer
• Quick drive testing or temporary external storage for laptops and desktops

Key specifications

• Supported drives: 1 x M.2 NVMe SSD, 1 x M.2 SATA SSD
• Card reader: SD Express (SD 7.1); compatible with SD/SDHC/SDXC (UHS-I, UHS-II)
• Simultaneous use: NVMe + SATA + SD Express supported
• Clone function: hardware cloning without PC (NVMe↔SATA, SD→NVMe, SD→SATA)

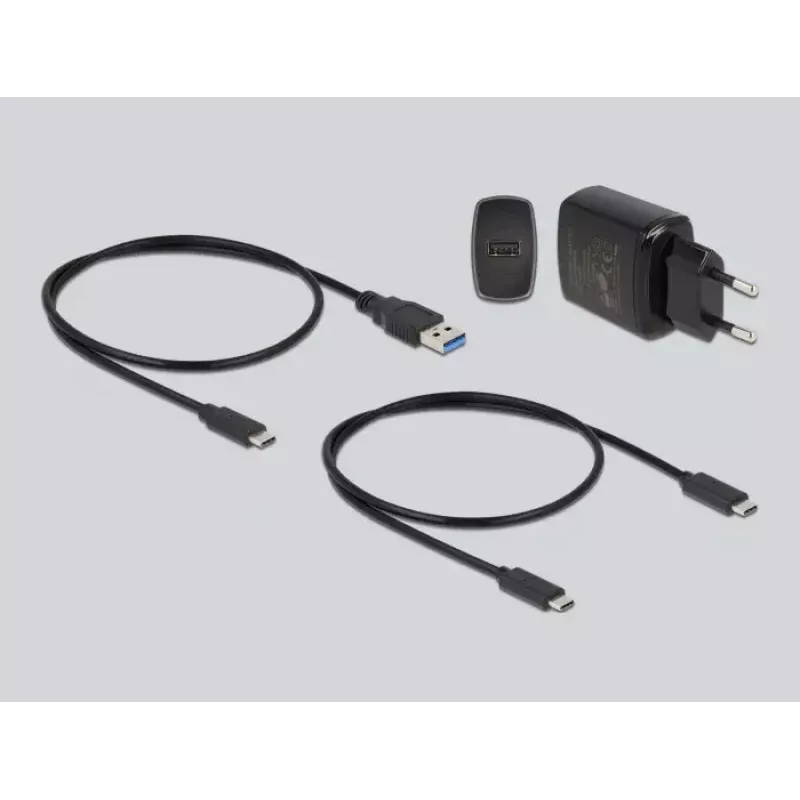

• Connection: USB to host (USB cables included); power via USB-C™ power connector (adapter included)
• Colour and dimensions: Silver; 76 mm × 79 mm × 18 mm

How to use

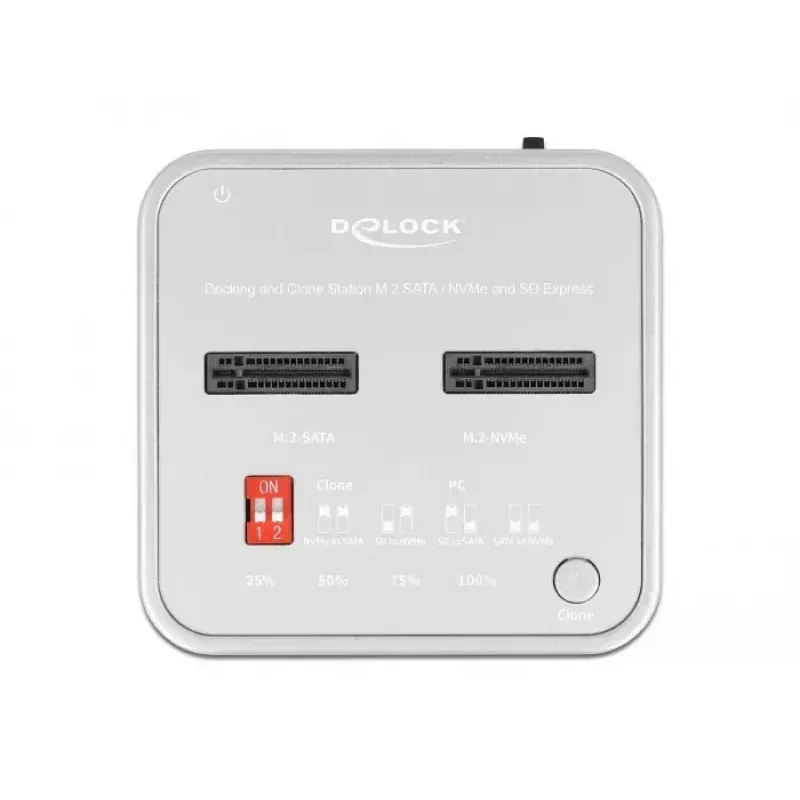

Insert an M.2 NVMe SSD, an M.2 SATA SSD and/or an SD Express memory card into the appropriate slots of the docking station. Connect the docking station to your computer, laptop, tablet or smartphone using the supplied USB cable and plug the included power supply into the USB-C™ power connector to power the unit and connected media. If you need to clone media without a PC, follow the device’s clone procedure using the front-panel controls (refer to the supplied quick guide for button sequence and LED indications).

Recommendations

For reliable operation, use compatible M.2 form factors and SD Express/SD cards, ensure the power supply is connected when using multiple drives simultaneously, and consult the quick guide for correct cloning steps and LED status indications.
