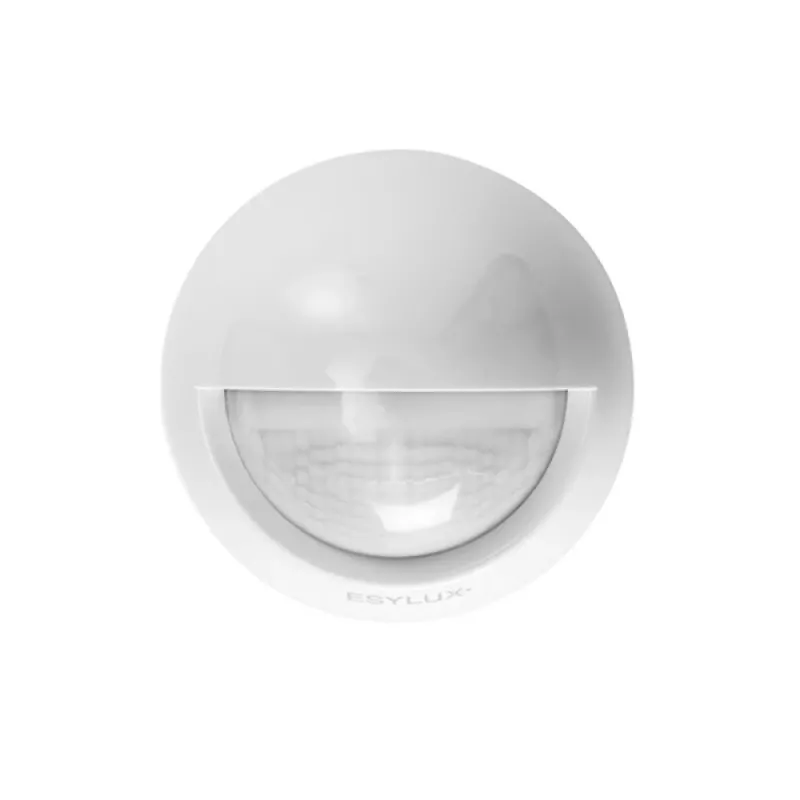

ESYLUX MD-W200i detector de movimiento por infrarrojos pasivo (PIR), montaje en pared, blanco, IP55, 12 m de cobertura, 2000 lux, 2,5 m de altura de montaje

The ESYLUX MD-W200i is a high-quality passive infrared (PIR) motion detector designed for professional indoor and outdoor wall mounting. With a detection range of up to 12 meters (tangential) and a wide 200° detection angle, it provides reliable presence detection for lighting control. The device features an adjustable ambient light sensor (5–2000 lux) and a time delay setting (10 s to 30 min), making it ideal for energy-efficient automation in corridors, stairwells, and outdoor areas.

Advantages

Energy-saving automatic lighting control with adjustable lux threshold and time delay. Robust IP55 protection ensures durability in harsh weather. Easy surface mounting and potential-free relay output for versatile integration.

Suitable for

• Indoor and outdoor wall-mounted lighting control
• Corridors, stairwells, entrances, and building facades
• Energy management in commercial and residential buildings

Key specifications

• Sensor type: Passive Infrared (PIR)
• Mounting: Wall mount, surface mounted
• Detection angle: 200°
• Detection range (tangential): 12 m
• Detection range (radial): 8 m
• Recommended mounting height: 2.5 m
• IP rating: IP55
• Ambient light sensor range: 5–2000 lux
• Time delay: 10 s – 30 min (adjustable)
• Power supply: 230 V AC, 50 Hz
• Max. switching capacity (incandescent): 2300 W
• Max. switching capacity (fluorescent/LED): 1150 VA
• Standby power consumption: < 0.5 W
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Control output: 1x Light (relay, potential-free)

Recommendations

For optimal performance, mount at the recommended height of 2.5 m and adjust the lux threshold and time delay according to the specific application. Suitable for use with incandescent and LED/fluorescent loads.
