BCS ZA1206/UPS/F/KD 72W 12V DC 6A fuente de alimentación SAI con cargador de batería para sistemas de seguridad, carcasa metálica, montaje en pared

Standard power supplies leave security systems dead during outages. The BCS ZA1206/UPS/F/KD changes that by integrating a UPS function with a built-in battery charger, maintaining continuous 12V DC output even when mains power fails. This unit is essential for CCTV cameras, access control panels, and alarm systems where uptime is critical. With a robust 72W output and support for 7Ah or 17Ah lead-acid batteries, it delivers reliable backup power in a compact, wall-mountable metal enclosure.

Highlights

• UPS functionality with automatic switchover to battery backup
• Adjustable output voltage from 12V to 15V DC
• High efficiency with low ripple & noise (<100mVp-p)
• Comprehensive protection: short circuit, overload, overvoltage, overheat, battery deep discharge, and overcharge
• LED indicators for AC power, DC output, and battery status
• Supports 7Ah or 17Ah lead-acid batteries (AGM/Gel)

In daily use

The ZA1206/UPS/F/KD simplifies installation and maintenance. Its wide input voltage range (100-240V AC, 50/60Hz) accommodates various electrical environments, while the adjustable output lets you fine-tune voltage for specific devices. The metal housing ensures durability, and wall mounting keeps it out of the way. During a power cut, the unit seamlessly switches to battery power, keeping your security infrastructure operational without interruption.

Full specifications

• Input voltage: 100-240V AC, 50/60Hz
• Output voltage: 12V DC (adjustable 12-15V DC)
• Max output current: 6A
• Total output power: 72W
• Battery charging current: 1A
• Supported battery type: Lead-acid (AGM/Gel)
• Battery capacity support: 7Ah or 17Ah
• Protection features: Short Circuit (SCP), Overload (OLP), Overvoltage (OVP), Overheat (OHP), Battery Deep Discharge, Battery Overcharge
• Status indicators: LED (AC Power, DC Output, Battery Status)

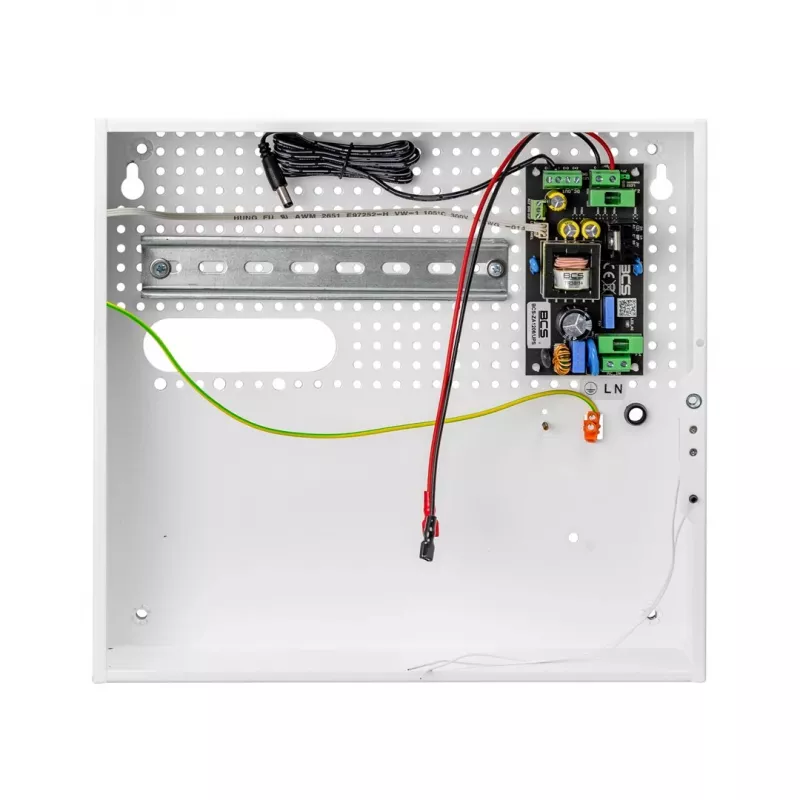

• Enclosure material: Metal
• Mounting type: Wall-mountable
• Operating temperature: -10°C to +40°C
• Relative humidity: 10% to 90% (non-condensing)
• Application: Security Systems (CCTV, Access Control, Alarm)
• Output ripple & noise: <100mVp-p

Final note

Keep your security systems running even when the power goes out—the BCS ZA1206/UPS/F/KD is the backup you can rely on.
