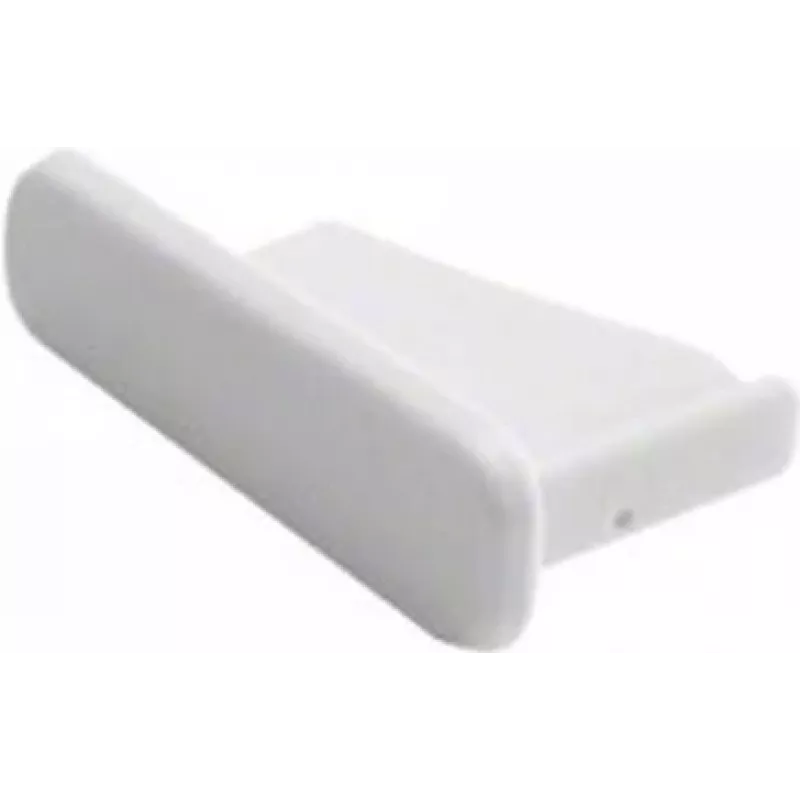

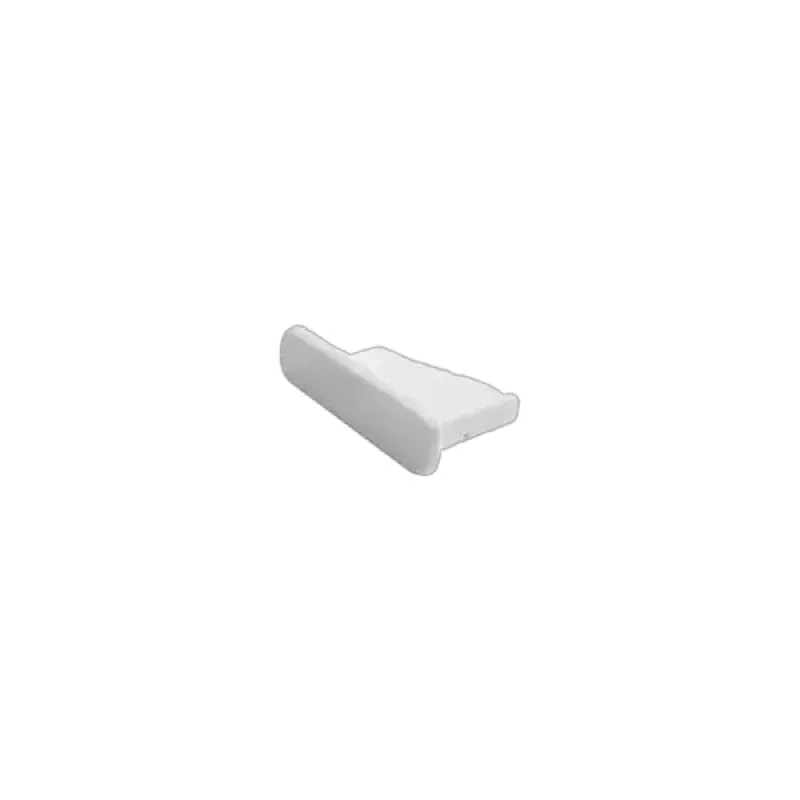

ETI 002921222 tapa terminal para barra colectora Z-16/1F, tipo horquilla, gris

For electricians and panel builders working with ETI Z-16/1F single-pole busbars, this end cover provides essential insulation and protection against direct contact at the busbar termination point. The fork-type design allows for quick, tool-free snap-on installation, ensuring a secure fit without additional hardware.

Key specifications

• Type: End cover for busbar
• Compatibility: ETI Z-16/1F busbars (single-pole, fork type)
• Material: Thermoplastic, self-extinguishing, halogen-free
• Colour: Grey
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Pollution degree: 3
• Operating temperature range: -25°C to +55°C
• Mounting method: Clip-on / snap-on
• Protection against: Direct contact

Why choose it

This end cover is manufactured from self-extinguishing, halogen-free thermoplastic, meeting the safety requirements of IEC/EN 60947-7-1. Its grey colour matches standard busbar accessories, and the clip-on design reduces installation time while providing reliable insulation.

Ideal use cases

• Insulating the cut ends of ETI Z-16/1F busbars in distribution boards
• Preventing accidental contact with live busbar ends in industrial control panels
• Completing busbar installations in compliance with electrical safety standards

Good to know

The cover is designed specifically for the ETI Z-16/1F busbar system and is not a universal accessory. It is RoHS and REACH compliant.
