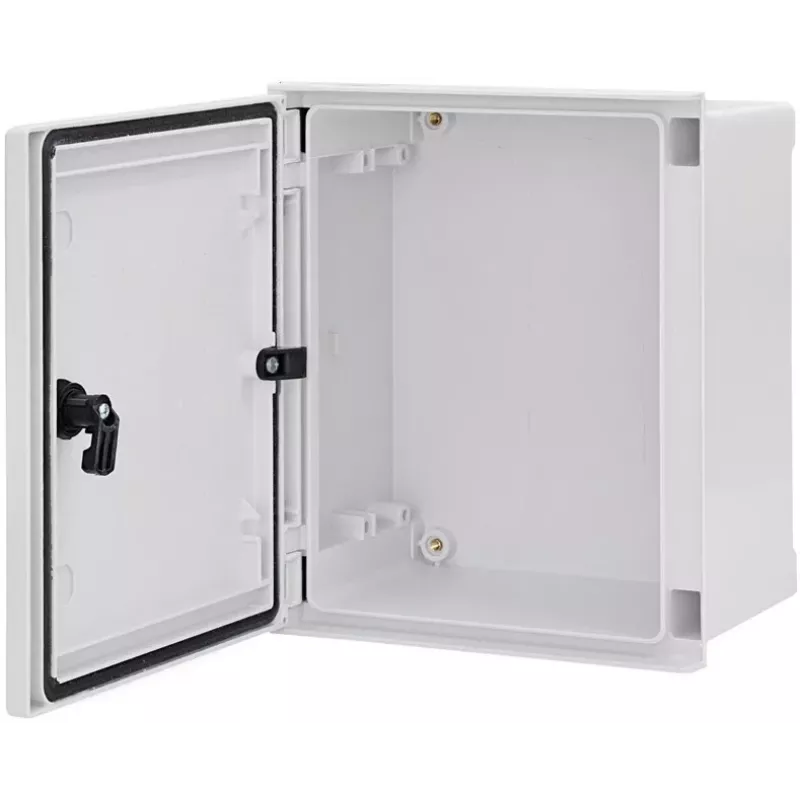

ETI EPC 30-25-14 carcasa de policarbonato IP66 gris 300x250x140mm

The ETI EPC 30-25-14 IP66 enclosure is a robust, wall-mountable polycarbonate housing designed for industrial, outdoor, electrical, and automation applications. With an IP66 rating and IK08 impact resistance, it provides excellent protection against dust, water jets, and mechanical impacts. The enclosure features an opaque grey lid and a RAL 7035 grey body, making it suitable for harsh environments.

Advantages

This enclosure offers high durability with UV resistance, halogen-free construction, and UL94-V0 flammability rating. The polyurethane gasket ensures a reliable seal, while the stainless steel lid screws provide corrosion resistance. Internal bosses allow for easy mounting of DIN rails or mounting plates, simplifying installation.

Suitable for

• Industrial control systems
• Outdoor electrical installations
• Automation equipment
• Distribution boxes and junction boxes

Key specifications

• Material: Polycarbonate (PC)
• External dimensions (H x W x D): 300 x 250 x 140 mm
• Ingress protection: IP66
• Impact resistance: IK08
• Colour: RAL 7035 Grey
• Lid type: Opaque grey
• Operating temperature: -40°C to +80°C
• Flammability rating: UL94-V0
• UV resistant: Yes
• Halogen free: Yes
• RoHS compliant: Yes
• Mounting: Wall mountable via external lugs
• Internal mounting: Bosses for DIN rail / mounting plate
• Number of lid screws: 4
• Lid screw material: Stainless steel
• Gasket material: Polyurethane (PU)

Recommendations

For optimal performance, ensure the enclosure is mounted on a flat surface and all screws are tightened evenly. Use appropriate cable glands to maintain IP66 protection.
