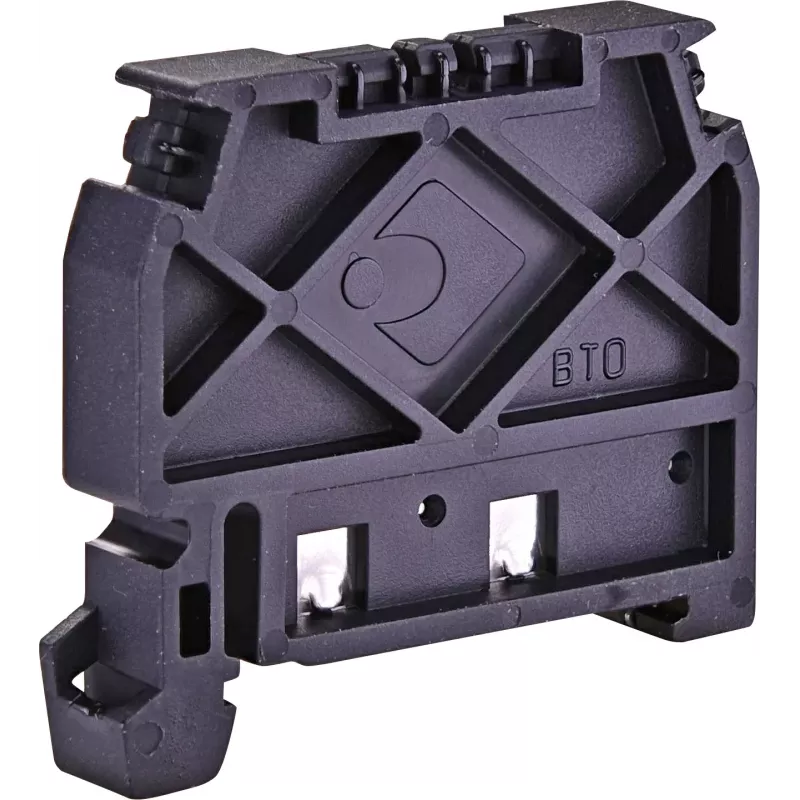

ETI ES-BTO distanciador para conexión de tierra, borne de carril y borne de neutro - negro (003903075)

Electrical separation of adjacent terminal blocks with a 6 mm wide polyamide spacer, compatible with ETI ES series terminal blocks from ES 2.5 to ES 300.

Overview

The ETI ES-BTO is a spacer designed to provide electrical separation between adjacent terminal blocks on a DIN rail. It is used to separate different potentials such as phase, neutral, and earth connections. The spacer is made of black polyamide and mounts on TS 35 DIN rails.

What stands out

• 6 mm width provides clear separation between terminal blocks
• Polyamide material offers insulation and durability
• Compatible with the full range of ETI ES series terminal blocks
• Easy installation on standard TS 35 DIN rails

Technical details

• Product type: Spacer / Separator
• Compatibility: ETI ES Series Terminal Blocks (ES 2.5 to ES 300)
• Function: Electrical separation of adjacent terminal blocks
• Application: Separation of different potentials (phase, neutral, earth)
• Mounting type: DIN Rail (TS 35)
• Material: Polyamide (PA)
• Colour: Black
• Width: 6 mm
• Height: 39 mm
• Depth: 40 mm
• Operating temperature range: -40°C to +100°C
• Flammability rating: UL94 V-2
• Insulation properties: Matches compatible terminal blocks
• Packaging unit: 1 piece

Our verdict

A reliable spacer for ensuring safe electrical separation in terminal block assemblies, built to match ETI ES series specifications.
