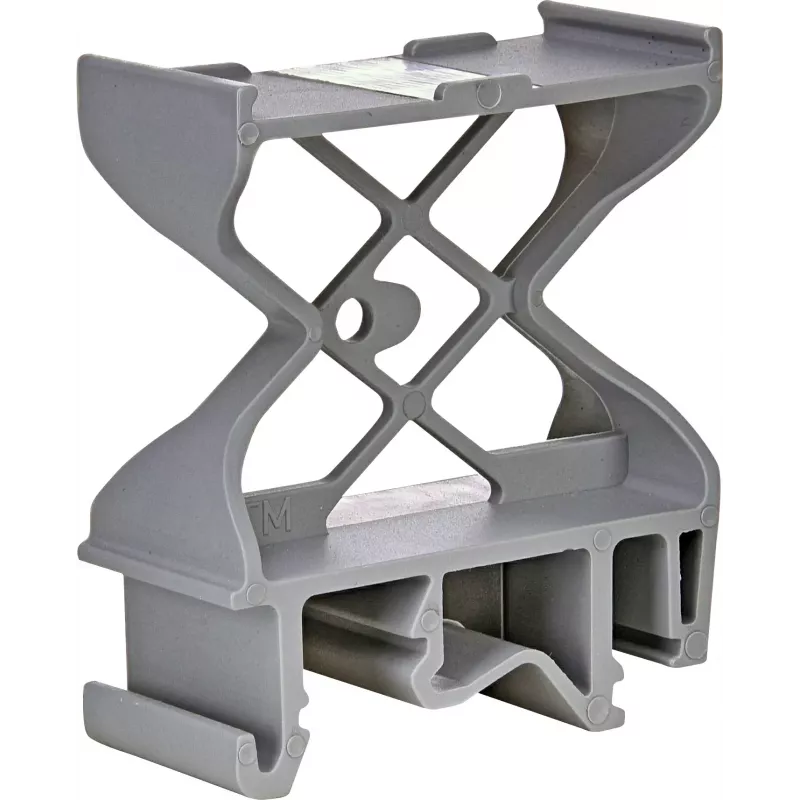

ETI ES-PTM soporte de marcado de bornes para bloques de bornes serie ES, gris 003903123

Terminal blocks in industrial panels often need clear, durable identification, but loose markers can fall off or become illegible. The ETI ES-PTM holder solves this by securely clipping onto ETI ES series terminal blocks and holding a PTM marker strip in place, keeping wiring labels organized and readable.

Who is it for

Panel builders, electricians, and maintenance technicians who work with ETI ES series terminal blocks and need reliable marking for circuit identification in control cabinets and industrial environments.

Main features

• Snap-on mounting for quick installation on ETI ES series terminal blocks
• Holds one PTM marker strip for clear terminal identification
• Made from grey polyamide (PA) for durability and chemical resistance
• Compact size: 6.2 mm width, fits standard terminal block spacing
• Wide operating temperature range from -40°C to +100°C
• Flammability rating UL94 V-0 for added safety in electrical panels

Specifications

• Product type: Terminal marker holder
• Brand series: ETI ES Series
• Compatibility: ETI ES Series terminal blocks
• Marker compatibility: PTM marker strips
• Mounting method: Snap-on / clip-on
• Colour: Grey
• Material: Polyamide (PA)
• Number of marker strips held: 1
• Width: 6.2 mm
• Height: 30 mm
• Depth: 10 mm
• Operating temperature range: -40°C to +100°C
• Flammability rating: UL94 V-0
• UV resistance: Good
• Chemical resistance: Good against common industrial chemicals

Tips

For best results, insert the PTM marker strip before snapping the holder onto the terminal block. The holder can be removed and reused if wiring changes are needed.
