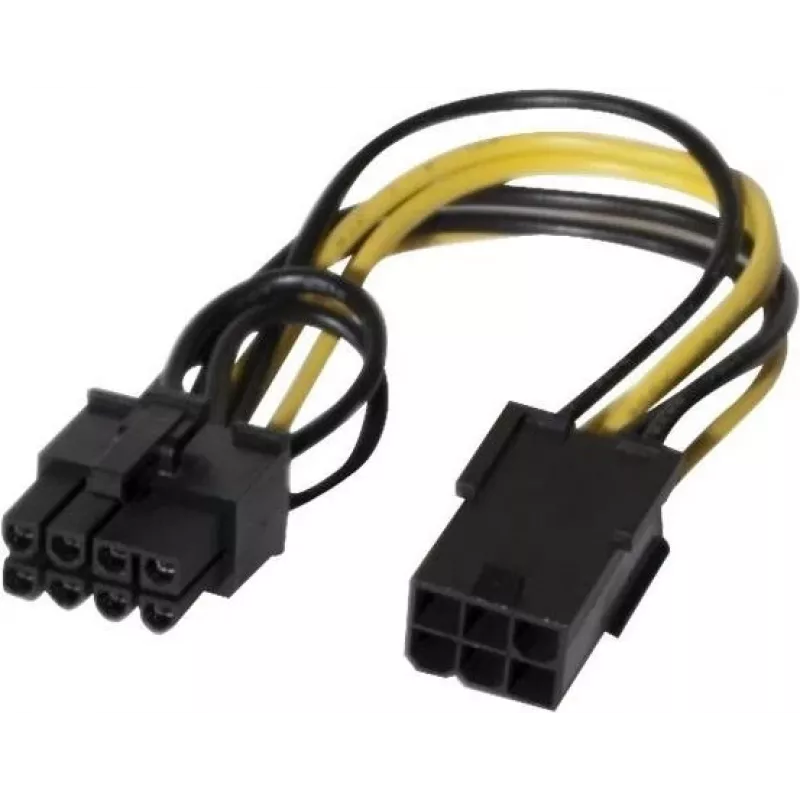

EXERTIS CONNECT cable adaptador de corriente PCI Express 6 pines a 8 pines para tarjetas gráficas (146695)

Many modern graphics cards demand an 8-pin PCIe power connector, but older or budget power supplies often only provide 6-pin outputs. This adapter cable bridges that gap, allowing you to use your existing PSU with a high-performance GPU without replacing the entire unit. It converts a standard 6-pin PCIe power output into an 8-pin connector, delivering up to 150W of stable power to your graphics card.

Who is it for

PC builders and upgraders who own a power supply lacking native 8-pin PCIe connectors but need to power a graphics card requiring an 8-pin input. Ideal for systems with older PSUs, compact builds, or when adding a second GPU.

Main features

• Converts 6-pin PCIe male to 8-pin PCIe male
• Supports up to 150W power delivery for demanding GPUs
• 20 cm length for flexible cable routing
• 18 AWG tinned copper conductors for reliable conductivity
• Durable PVC insulation and robust connectors
• Plug-and-play installation, no drivers needed

Specifications

• PSU side connector: PCI Express 6-pin male
• GPU side connector: PCI Express 8-pin male
• Cable length: 20 cm
• Wire gauge: 18 AWG
• Conductor material: Tinned copper
• Insulation: PVC
• Voltage rating: 12V DC
• Maximum power: 150W
• Colour: Black
• RoHS compliant

Tips

Ensure your power supply's 6-pin connector can deliver sufficient current for your graphics card's power draw. While this adapter provides the physical connection, it does not increase the PSU's total output capability. For high-end cards, verify that your PSU has adequate wattage and amperage on the 12V rail.
