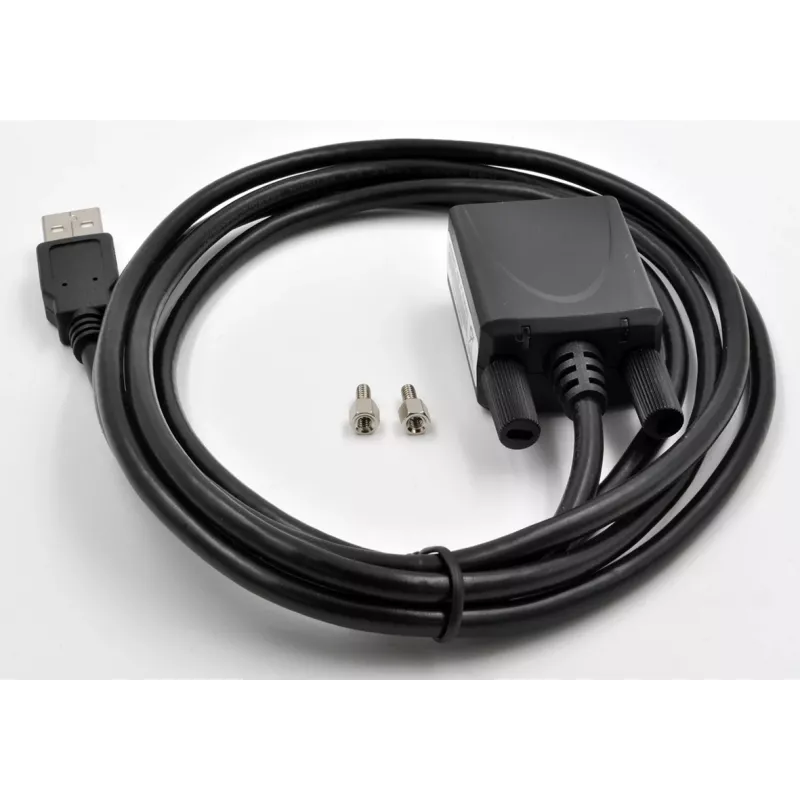

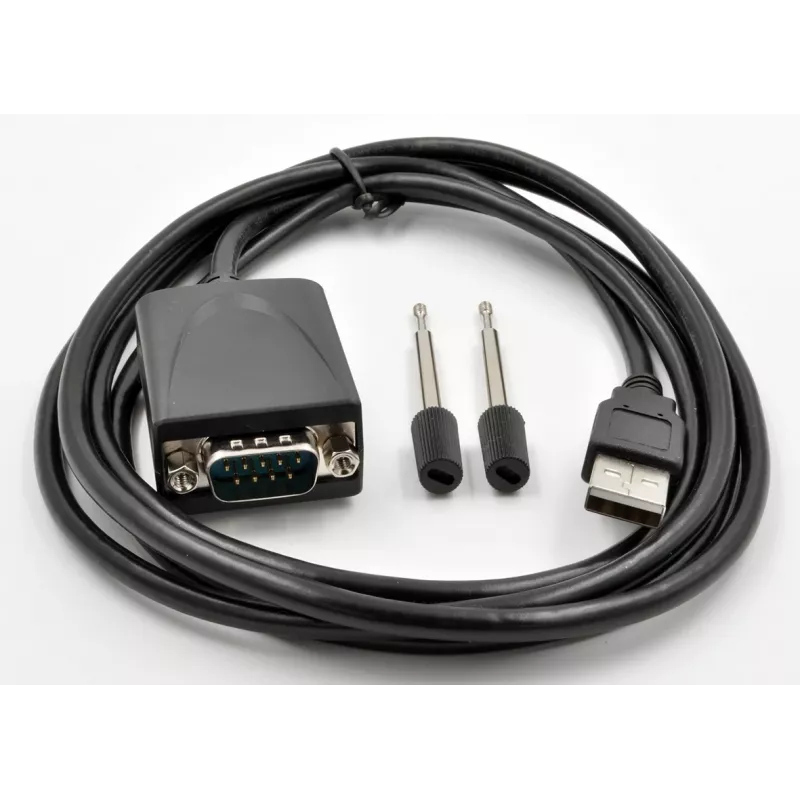

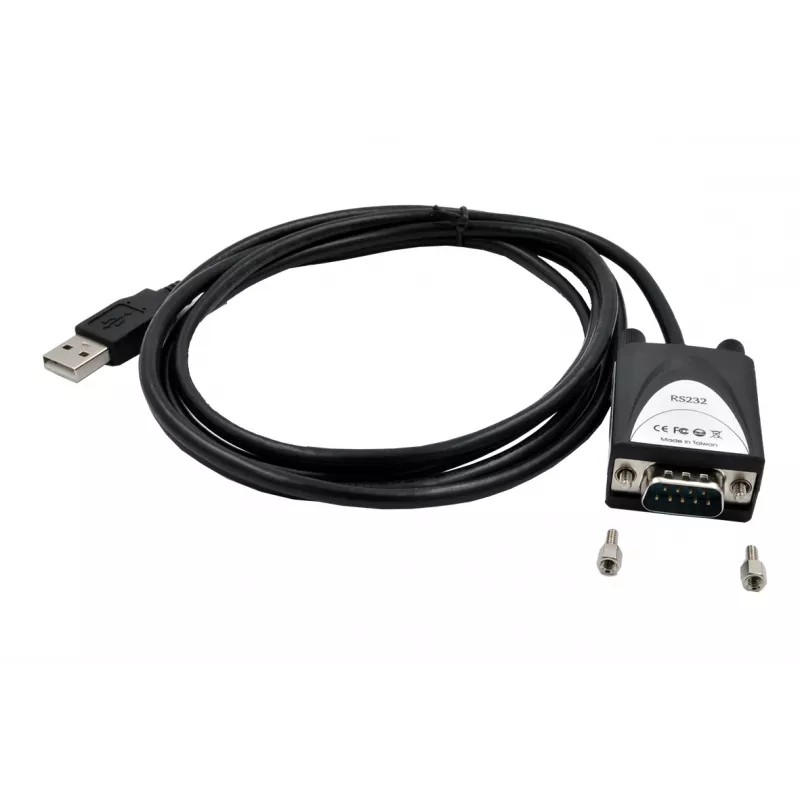

EXSYS EX-1311-2IS adaptador USB 2.0 a RS-232 serie con chipset FTDI FT232RL, 921,6 Kbps, conector DB9, cable de 0,8 m

Transfer data at up to 921.6 Kbps over RS-232 with the EXSYS EX-1311-2IS, a USB 2.0 to serial adapter built around the FTDI FT232RL chipset. It adds one DB9 male RS-232 port to any USB-equipped computer, with a 0.8 m integrated cable and bus-powered operation.

Overview

The EX-1311-2IS converts a USB 2.0 port into a single RS-232 (V.24) serial port, enabling connection to legacy serial devices such as industrial equipment, point-of-sale terminals, and networking gear. The adapter is powered directly from the USB bus, so no external power supply is needed. It supports Windows, macOS, and Linux operating systems.

What stands out

• FTDI FT232RL chipset for reliable communication and broad driver support
• Serial data rates up to 921.6 Kbps
• DB9 male connector with 128-byte transmit and 256-byte receive FIFO buffers
• Hardware and software flow control
• Configurable data bits, stop bits, and parity
• Tx/Rx LED indicators for activity monitoring

Technical details

• USB standard: USB 2.0 (backward compatible with USB 1.1)
• Serial standard: RS-232 (V.24)
• Number of serial ports: 1
• Serial connector: DB9 male
• USB connector: USB Type-A male
• Integrated cable length: 0.8 m
• Baud rate: up to 921.6 Kbps
• FIFO buffer: 128-byte transmit, 256-byte receive
• Flow control: hardware (RTS/CTS), software (XON/XOFF)
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Power: USB bus-powered
• LED indicators: Tx/Rx activity
• Housing material: plastic

Our verdict

A compact and dependable USB-to-serial solution for connecting legacy RS-232 devices to modern computers, with the proven FTDI chipset and flexible configuration options.
