EXSYS EX-6008POE Inyector Gigabit PoE++ , 60W, IEEE 802.3bt, entrada de terminales 48-57V DC, montaje en carril DIN/pared

Power a high-wattage network device such as a PTZ camera, outdoor access point, or digital signage display in an industrial cabinet or remote enclosure. The EXSYS EX-6008POE injects up to 60W of PoE++ power into a Gigabit Ethernet link, using an external 48-57V DC supply connected to its terminal block.

Key specifications

• PoE standard: IEEE 802.3bt Type 3 (PoE++)
• Max. power output: 60W
• Data rate: 10/100/1000 Mbps (Gigabit Ethernet)

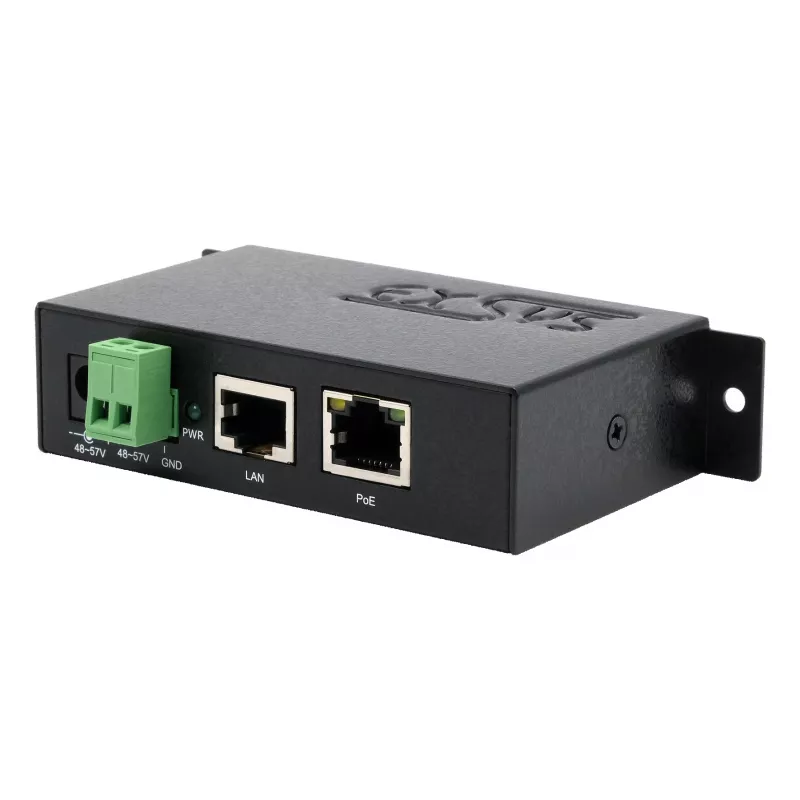

• Ports: 2x RJ45 (1x data in, 1x PoE out)
• DC input: 48-57V DC via 2-pin terminal block
• PoE output voltage: 48-57V DC
• PoE pin assignment: Mode A (1/2+, 3/6-) and Mode B (4/5+, 7/8-)

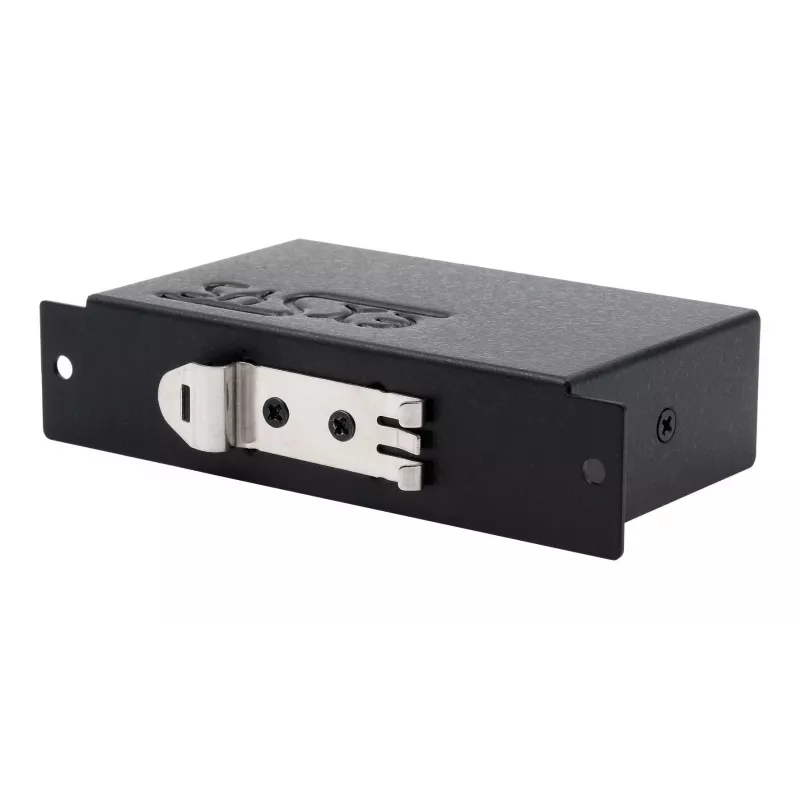

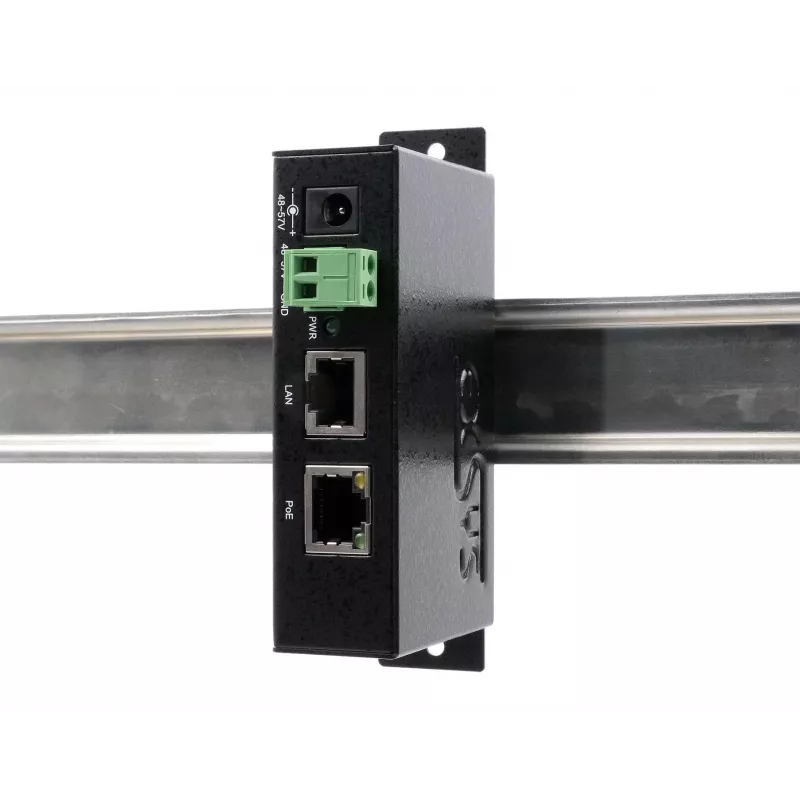

• Mounting: DIN rail or wall mount
• LED indicators: Power, PoE status
• Operating temperature: -40°C to 75°C
• Operating humidity: 5% to 95% RH (non-condensing)
• Protection: overload, short-circuit, over-voltage
• Housing: metal (aluminum)
• Power consumption (device): < 2W
• Certifications: CE, FCC, RoHS

Why choose it

The EX-6008POE delivers the full 60W allowed by the 802.3bt standard, enabling deployment of power-hungry devices without a local AC outlet. Its wide operating temperature range and metal housing suit harsh environments, while DIN rail and wall mounting options simplify integration into existing cabinets.

Ideal use cases

• Powering PTZ network cameras in outdoor or industrial settings
• Supplying PoE++ to Wi-Fi 6 access points in warehouses or campuses
• Injecting power for digital signage or kiosks where AC power is unavailable
• Adding PoE++ capability to non-PoE network switches

Good to know

The injector requires an external 48-57V DC power supply, which is not included. It supports both Mode A and Mode B PoE pin assignments for compatibility with a wide range of powered devices.
