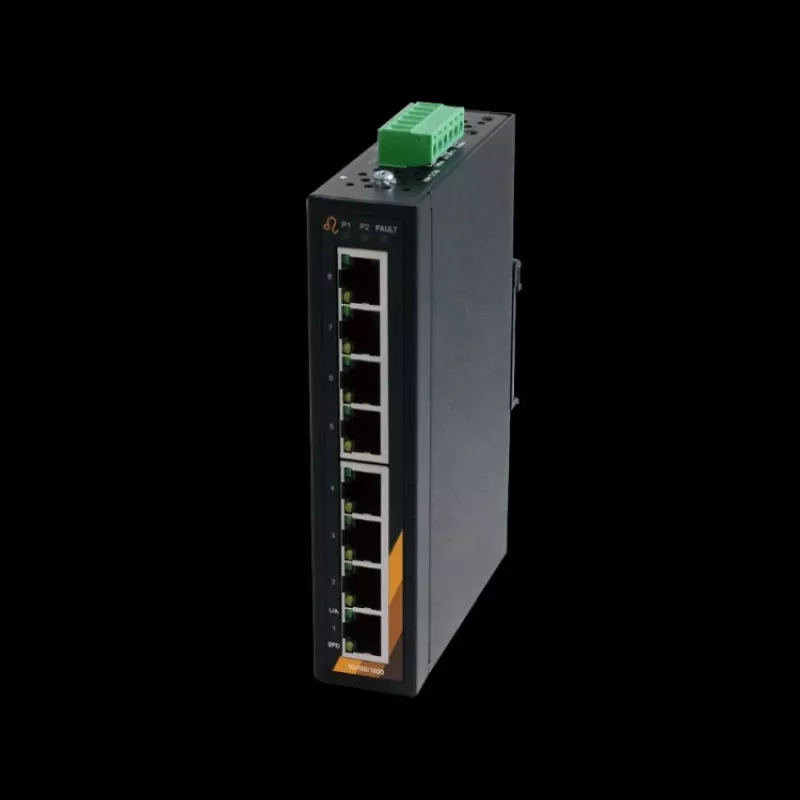

EXSYS EX-6225 Switch Gigabit Ethernet de 8 puertos, 10/100/1000 Mbps, carcasa de metal, montaje en escritorio/pared, Plug and Play

With a switching capacity of 16 Gbps and a forwarding rate of 11.9 Mpps, the EXSYS EX-6225 delivers high-speed, non-blocking performance for demanding network environments. This 8-port Gigabit Ethernet switch is engineered to handle large data transfers, video streaming, and VoIP traffic with ease, making it an ideal backbone for small offices, workgroups, and home networks.

Overview

The EXSYS EX-6225 is a compact, unmanaged desktop switch that provides eight 10/100/1000 Mbps RJ45 ports with automatic MDI/MDI-X crossover detection. It supports IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards, ensuring compatibility with all Ethernet-enabled devices. The robust metal housing offers durability and efficient heat dissipation, while the fanless design guarantees silent operation—perfect for noise-sensitive environments.

What stands out

• Eight Gigabit ports for high-speed connectivity
• 16 Gbps switching capacity and 11.9 Mpps forwarding rate
• Jumbo frame support up to 9K bytes for improved large-file transfer efficiency
• Auto MDI/MDI-X on all ports—no crossover cables needed
• Plug-and-play installation with no configuration required
• Metal housing with desktop or wall-mount options
• Fanless design for silent, reliable operation
• LED indicators for power and link/activity per port

Technical details

• 8 × 10/100/1000 Mbps RJ45 ports
• Switching capacity: 16 Gbps
• Forwarding rate: 11.9 Mpps
• MAC address table: 8K entries
• Jumbo frame support: up to 9K bytes
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Flow control: IEEE 802.3x full-duplex, back pressure half-duplex
• Power input: DC 5V/1A
• Max power consumption: 5W
• Operating temperature: 0°C to 50°C
• Housing: Metal
• Mounting: Desktop or wall-mount
• LED indicators: Power, Link/Act per port

Our verdict

The EXSYS EX-6225 is a reliable, high-performance Gigabit switch that combines speed, durability, and silent operation. Its plug-and-play simplicity and flexible mounting options make it an excellent choice for expanding your network without complexity.
