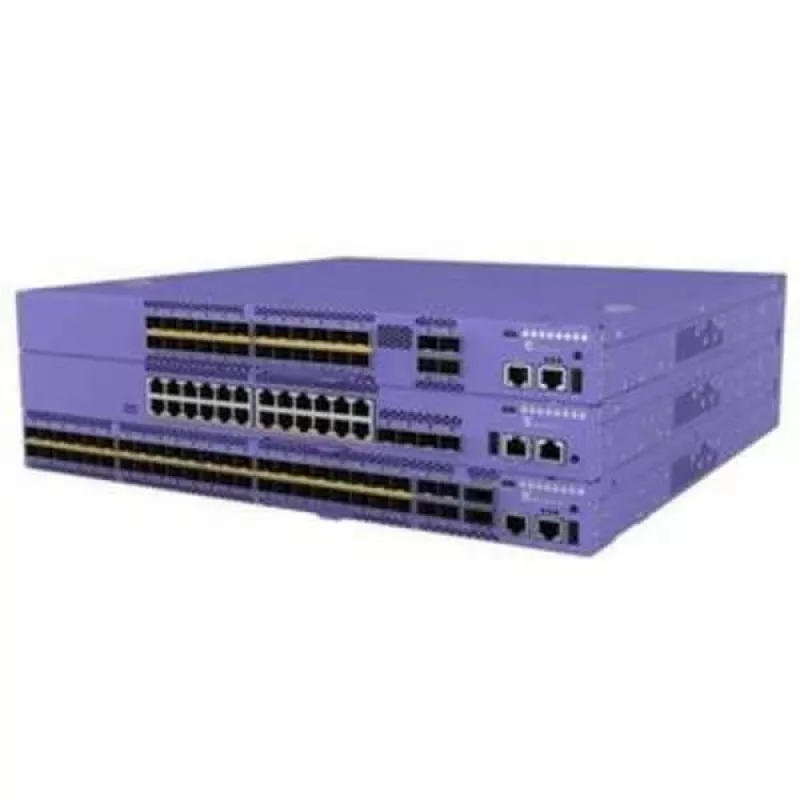

EXTREME NETWORKS 5120-24X-4Y Switch, 24x 1/10Gb SFP+, 4x 10/25Gb SFP28, 1 AC PS, 4 Fans FB

The EXTREME NETWORKS 5120-24X-4Y is a high-performance 1U rackmount network switch designed for enterprise and data center environments. It features 24 x 1/10Gb SFP+ ports and 4 x 10/25Gb SFP28 ports, providing flexible high-speed connectivity. With a switching capacity of 680 Gbps and a forwarding rate of 505 Mpps, this switch delivers robust performance for demanding applications. It includes one AC power supply and four hot-swappable fan modules with front-to-back airflow. The switch runs on ExtremeXOS (EXOS) operating system, supporting advanced Layer 2 and Layer 3 features, including static routing, RIP, OSPF, BGP, VRRP, and PIM. It also supports ExtremeStacking-V for virtual chassis stacking of up to 8 units, simplifying management and scalability.

Advantages

High port density with 24 SFP+ and 4 SFP28 ports, ideal for aggregation or top-of-rack deployments. Hot-swappable power supply and fans ensure minimal downtime. Advanced stacking technology enables unified management and high availability. Comprehensive Layer 3 routing capabilities support complex network designs.

Suitable for

• Enterprise campus networks
• Data center top-of-rack switching
• High-performance computing environments
• Network aggregation points requiring high throughput

Key specifications

• Product Type: Network Switch
• Form Factor: 1U Rack-mountable
• Switching Capacity: 680 Gbps
• Forwarding Rate: 505 Mpps
• Ports: 24 x 1/10Gb SFP+, 4 x 10/25Gb SFP28
• Management Ports: 1 x RJ-45 Console, 1 x RJ-45 Management (10/100/1000BASE-T), 1 x USB-A
• Power Supply: 1 x AC (hot-swappable, 2 slots)
• Fan Modules: 4 x hot-swappable, front-to-back airflow
• Operating System: ExtremeXOS (EXOS)
• Layer Support: Layer 2, Layer 3
• Stacking: ExtremeStacking-V (up to 8 units)
• Jumbo Frame Support: Up to 9,216 bytes
• VLANs Supported: 4094
• MAC Address Table: 136K entries
• Routing Protocols: Static, RIP, OSPF, BGP, VRRP, PIM
• Management Interfaces: CLI, Web-based GUI, SNMP, ExtremeCloud IQ

Recommendations

For optimal performance, pair with Extreme Networks SFP+ and SFP28 transceivers. Consider adding a second AC power supply for redundancy. Use ExtremeCloud IQ for centralized cloud management.
