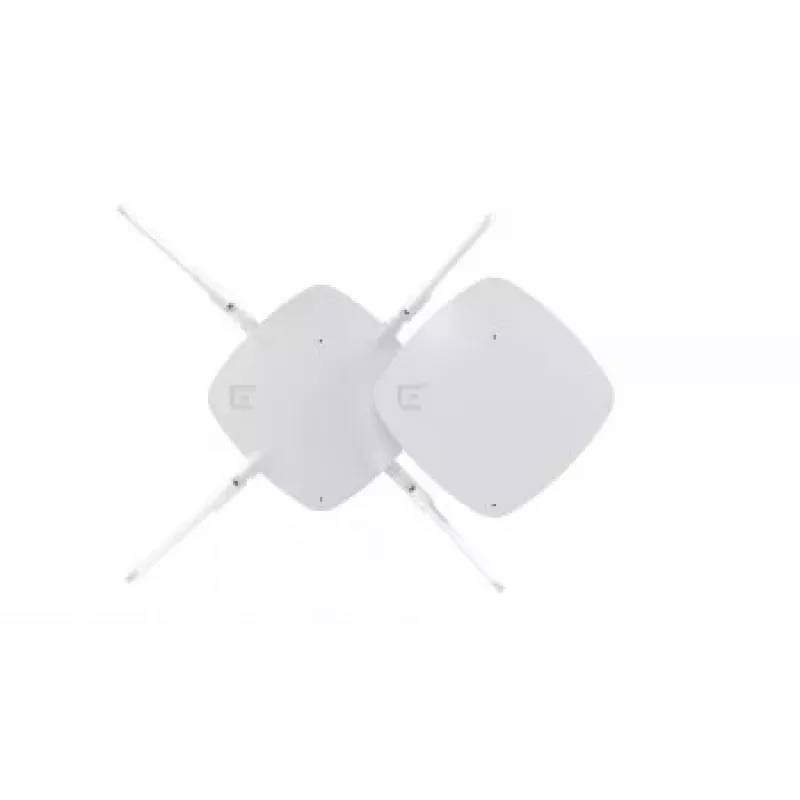

Punto de acceso inalámbrico Extreme Networks AP3000-WW 2,4 GHz 5 GHz 6 GHz

The Extreme Networks AP3000-WW is a compact enterprise-class Wi-Fi 6E access point supporting 2.4 GHz, 5 GHz and 6 GHz bands. Designed to balance performance, security and cost-efficiency, the AP3000-WW integrates dual 2x2:2 radios, Multi-Band filtering, integrated Bluetooth Low Energy and flexible universal hardware that supports multiple software personas via ExtremeCloud IQ for centralized provisioning and management.

Advantages

The AP3000-WW delivers high-efficiency 802.11ax aggregate data rates up to 4.8 Gbps across the tri-band radios while remaining one of the market’s smallest Wi-Fi 6E form factors for flexible placement. Its Universal World SKU hardware simplifies procurement for global deployments and reduces hardware obsolescence by supporting two OS personas (IQ Engine or WiNG). Built-in security features include WPA3 support, stateful L2–L7 DPI firewall, Private Pre-Shared Key (PPSK) and integration with Extreme Fabric Attach for automated secure provisioning. Integrated BLE enables IoT and guest engagement services.

Suitable for

• Enterprise offices and classroom deployments
• Warehouses and manufacturing floors with dense device populations
• Healthcare clinics and patient-facing environments
• Retail and venues requiring guest engagement and location services

Key specifications

• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz (Wi‑Fi 6E / 802.11ax)
• Radios: Dual 2x2:2 radios (tri-band operation via programmable modes)
• Maximum aggregate data rate: up to 4.8 Gbps (aggregate 802.11ax)
• Maximum data transfer rate (product data): 2400 Mbit/s
• Security: WPA, WPA2, WPA3, stateful L2–L7 DPI firewall, PPSK
• Management: ExtremeCloud IQ (cloud or on-premises) with analytics and persona provisioning
• Bluetooth: Integrated Bluetooth Low Energy (BLE) for IoT and engagement
• Power: PoE support; maximum power consumption approx. 17 W
• Colour and weight: White, 0.52 kg
• Model / SKU: AP3000-WW (Universal / World SKU)

How to use

Mount the AP3000-WW in the chosen location and connect power via Power over Ethernet (PoE) or an appropriate power injector. On initial boot the access point will contact ExtremeCloud IQ and automatically receive its preprovisioned persona and configuration if available. Use ExtremeCloud IQ (cloud or on‑premises) to select or change the operating persona (IQ Engine or WiNG), configure SSIDs, security policies (including WPA3), radio bands and power/channel regulatory profiles. For BLE-based services, enable and configure beaconing or API integrations for guest engagement and IoT device connectivity.

Recommendations

For dense or mission-critical environments, place AP3000-WW units to ensure overlapping coverage without excessive channel overlap; rely on ExtremeCloud IQ for automated channel/power assignment and monitoring, and enable WPA3 and Fabric Attach where available to maximize security and automated provisioning.
