Switch de red EXTREME 4220-48P-4X – 48 puertos PoE, 4 puertos uplink, capa 2/3

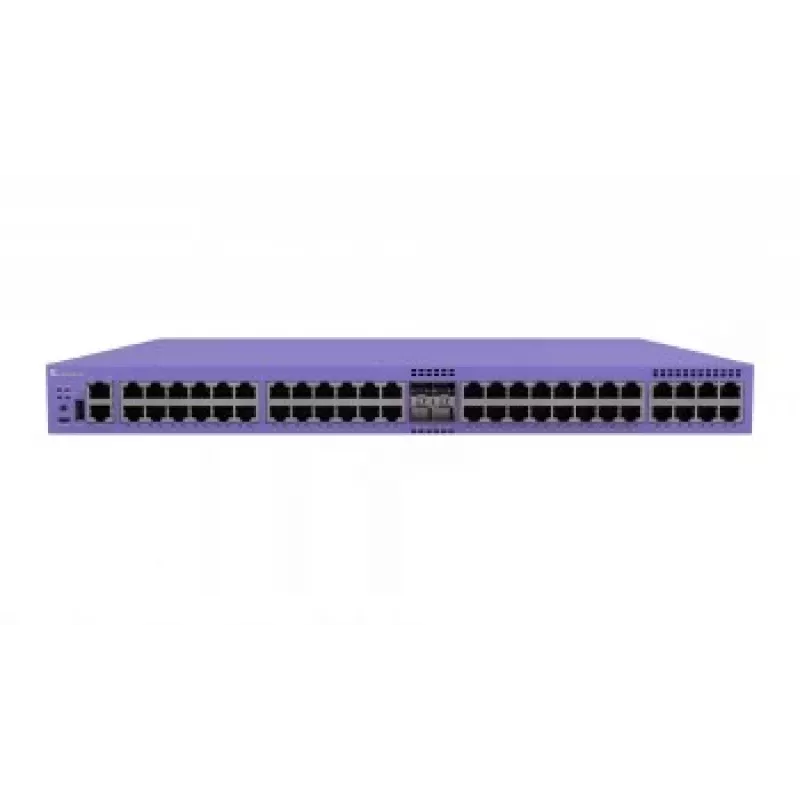

EXTREME 4220-48P-4X is a Layer 2/Layer 3 network switch with 48 PoE-enabled Ethernet ports and four uplink ports. It delivers both data connectivity and Power over Ethernet to connected devices, simplifying cabling and centralizing power delivery for small to medium enterprise networks. Typical uses include powering IP phones, wireless access points and network cameras while providing uplink redundancy and aggregation options.

Advantages

The switch combines 48 PoE ports with four high-capacity uplink ports to support edge aggregation and core connectivity. PoE capability reduces the need for separate power supplies at endpoints, while Layer 2/Layer 3 functionality enables flexible network segmentation and routing. The unit is suitable for deployments that require centralized power management, reduced cabling and scalable uplink bandwidth.

Suitable for

• Small and medium enterprise access layer
• Powering IP phones, PoE access points and surveillance cameras
• Edge aggregation with uplink redundancy to distribution or core switches

Key specifications

• 48 PoE-enabled Ethernet ports for simultaneous data and power delivery
• 4 uplink ports for aggregation or core connectivity
• Layer 2 and Layer 3 switching capabilities for VLANs and routing
• Designed for deployment in small to medium enterprise networks
• Manufacturer estimated product life cycle used in emission assessments: 5 years
• Manufacturer estimated life-cycle CO2 emissions (total): 761.81 kg
• Manufacturer estimated CO2 emissions during use: 546.54 kg
• Manufacturer estimated manufacturing-related CO2 emissions: 137.69 kg
• Manufacturer estimated transportation-related CO2 emissions: 82.13 kg
• Manufacturer estimated recycling-related CO2 emissions: 4.55 kg

How to use

Install the EXTREME 4220-48P-4X in a suitable rack or shelf location with proper ventilation and grounding. Connect network devices to the PoE-enabled ports to deliver both power and data, and use the uplink ports to connect to aggregation or core switches. Configure VLANs, PoE settings and Layer 3 interfaces as required by the network design through the device management interface or controller.

Recommendations

Monitor PoE budget and port power consumption to ensure the switch can supply required power to all connected devices. Place the switch in a controlled environment to maintain operating temperature and reduce the risk of premature failure. Follow manufacturer guidelines for firmware updates and security configuration.
