f-tronic Cuadro de contadores 1 campo VZ6 H=1350mm 1-3.HZ Vert.2r. 7143300 1 (7143300)

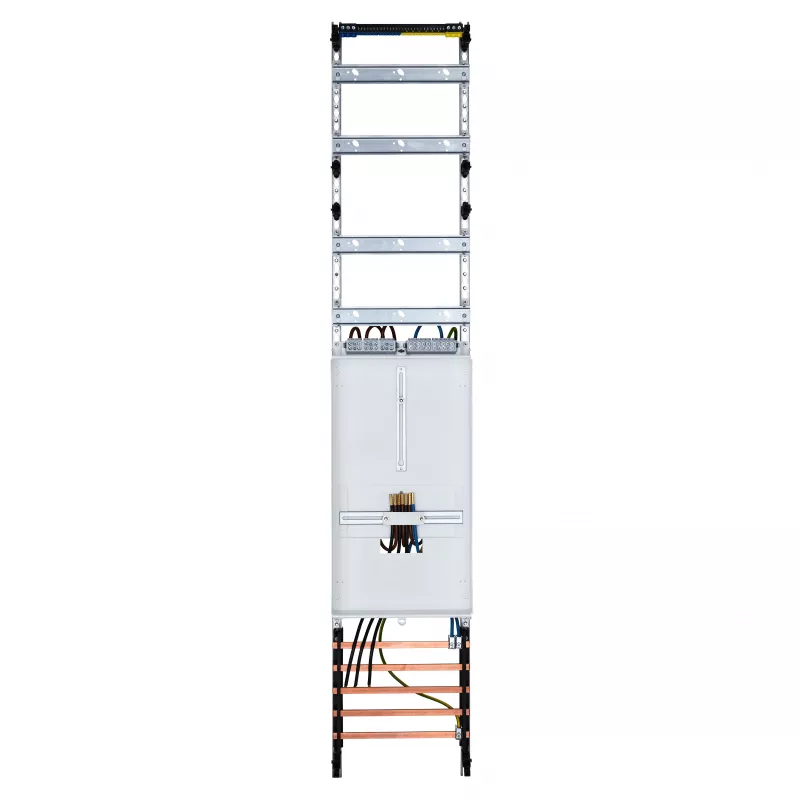

This meter panel solves the challenge of safely housing and distributing electrical power for up to three household meters in residential and commercial installations. The f-tronic Zählerfeld 1-feldrig VZ6 provides a robust, galvanized steel enclosure with a 5-pole busbar system rated for 63 A, ensuring reliable power distribution.

Who is it for

Electricians and panel builders who need a compact, single-field meter panel for eHZ meters, with space for additional modules below the meter.

Main features

• One meter field, compatible with 1 to 3 eHZ meters
• Vertical arrangement with 2 rows below the meter, each 12 TE (total 24 TE)
• 5-pole busbar (L1, L2, L3, N, PE) rated 63 A
• Finger-safe main line branch terminal
• Galvanized sheet steel construction

Specifications

• Height: 1350 mm
• Width: 250 mm
• Depth: 120 mm
• Material: Galvanized sheet steel
• Protection class (installed): IP20
• Mounting type: For meter cabinets / distribution boards

Tips

Ensure proper ventilation and follow local regulations when installing. The panel is designed for indoor use.
