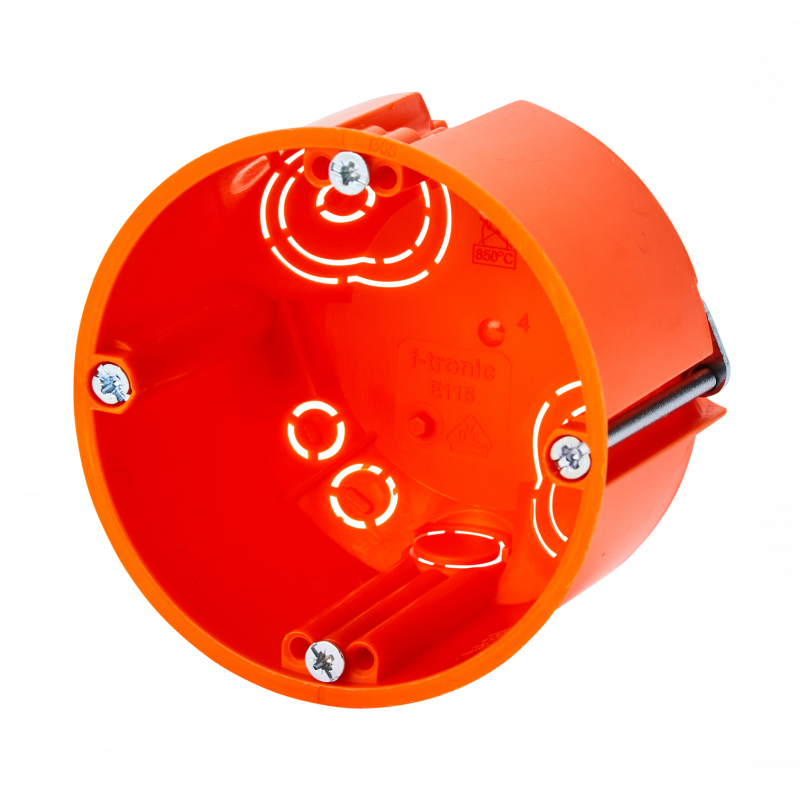

f-tronic E115 7350163 cajas para tabique hueco, diámetro de perforación Ø68 mm, profundidad 49 mm, 25 unidades

The f-tronic E115 (7350163) is a 49 mm deep device box for cavity wall installations. It fits a 68 mm installation hole and panels from 5 to 40 mm thick. The housing is made of polypropylene and has IP30 protection. This offer contains 25 boxes. The colour is orange.

Knockout openings accept cables and conduits, while the integrated restraint secures NYM cables. The maximum conductor cross-section is 2.5 mm². This E115 version is not halogen-free. The product has a 400 V design voltage and a glow-wire test rating of 850 °C. Its manufacturer reference is 7350163, with EAN 4034338649729.
