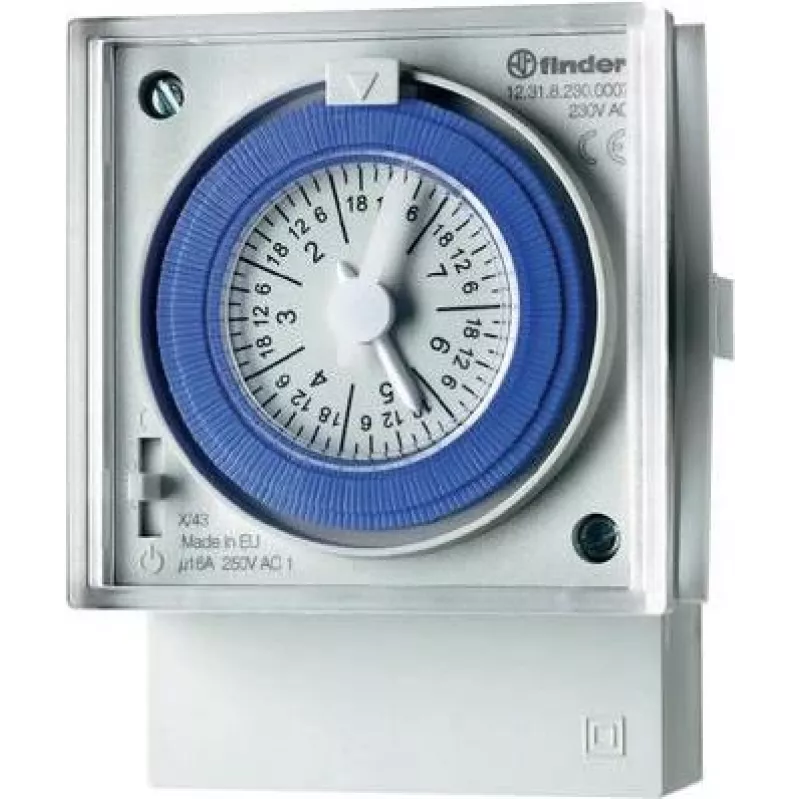

Finder 12.31.8.230.0007 Temporizador mecánico, montaje en panel frontal, 230 V AC, 1 contacto conmutado, 16 A, programa diario, 48 segmentos, reserva de marcha 100 h

Manual control of lighting, heating, or ventilation often leads to wasted energy and inconsistent schedules. The Finder 12.31.8.230.0007 mechanical time switch solves this by automating daily on/off cycles with reliable, maintenance-free operation. Designed for front panel mounting, it fits seamlessly into control cabinets and distribution boards, providing a simple yet effective solution for residential and commercial applications.

Who is it for

This time switch is ideal for electricians, panel builders, and facility managers who need a dependable, easy-to-program timer for lighting, signage, irrigation, or HVAC equipment. It suits any environment where a fixed daily schedule is required without the complexity of digital programming.

Main features

• Mechanical daily program with 48 segments (30-minute minimum switching interval) for precise control.
• 1 changeover (SPDT) contact rated 16 A / 250 V AC, switching capacity up to 4000 VA (AC1).
• Manual override switch for temporary ON/AUTO/OFF operation without altering the program.
• 100-hour power reserve ensures the clock keeps time during power outages, so the schedule stays accurate.
• Front panel mounting with IP20 protection, suitable for indoor control panels.
• Operates on 230 V AC, 50/60 Hz, with a wide temperature range of -10 to +50 °C.

Specifications

• Series: 12.31
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Contact configuration: 1 changeover (SPDT)
• Contact rating: 16 A / 250 V AC
• Switching capacity: 4000 VA (AC1)
• Minimum switching interval: 30 minutes
• Number of segments: 48
• Power reserve: 100 hours
• Operating mode: Daily
• Manual override: Yes
• Protection degree: IP20 (front panel)
• Operating temperature: -10 to +50 °C
• Mounting: Front panel

Tips

For optimal performance, install the time switch in a dry, indoor location away from direct sunlight and excessive dust. When setting the program, ensure the dial is rotated only in the direction indicated to avoid damaging the mechanism. Use the manual override to temporarily bypass the schedule for cleaning or maintenance without reprogramming.
