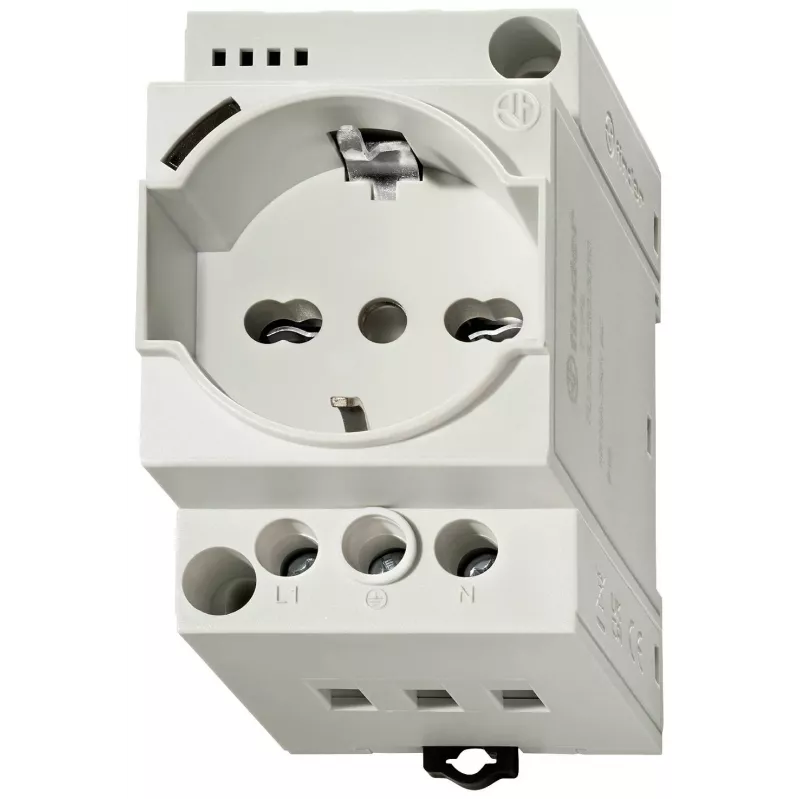

Finder Serie 7U Toma para armario eléctrico, 230 V AC, 16 A, Schuko, montaje en carril DIN, gris (RAL 7035) 7U.00.8.230.0000

The Finder 7U.00.8.230.0000 is a control cabinet socket outlet that stands out for its DIN rail mounting, allowing it to be snapped directly onto standard EN 60715 rails alongside other modular devices. This integration eliminates the need for separate surface-mounted boxes and keeps cabinet wiring tidy.

Highlights

• Schuko (Type F) socket outlet for standard European plugs
• Rated at 230 V AC / 16 A for general-purpose power inside control cabinets
• Compact 2.5-module width saves valuable DIN rail space
• Grey (RAL 7035) thermoplastic housing blends with typical cabinet interiors
• Screw terminals accept solid or stranded conductors from 0.5 to 4 mm²

In daily use

Install the socket on the DIN rail, connect phase, neutral and protective earth to the clearly marked screw terminals, and you have a convenient power point for service tools, measurement equipment or temporary lighting inside the cabinet. The IP20 rating is suitable for enclosed electrical enclosures where protection against dust and moisture is provided by the cabinet itself.

Full specifications

• Product type: Control cabinet socket outlet
• Socket type: Schuko (Type F)
• Number of outlets: 1
• Rated voltage: 230 V AC
• Rated current: 16 A
• Mounting type: DIN rail (EN 60715)
• Colour: Grey (RAL 7035)
• Protection degree: IP20
• Connection type: Screw terminals
• Wire cross-section (solid): 0.5 - 4 mm²
• Wire cross-section (stranded): 0.5 - 4 mm²
• Housing material: Thermoplastic
• Operating temperature: -20°C to +50°C
• Module width: 2.5 modules
• Series: 7U

Final note

For engineers and panel builders, the Finder 7U socket outlet offers a reliable and space-efficient power solution that integrates seamlessly into DIN rail installations.
