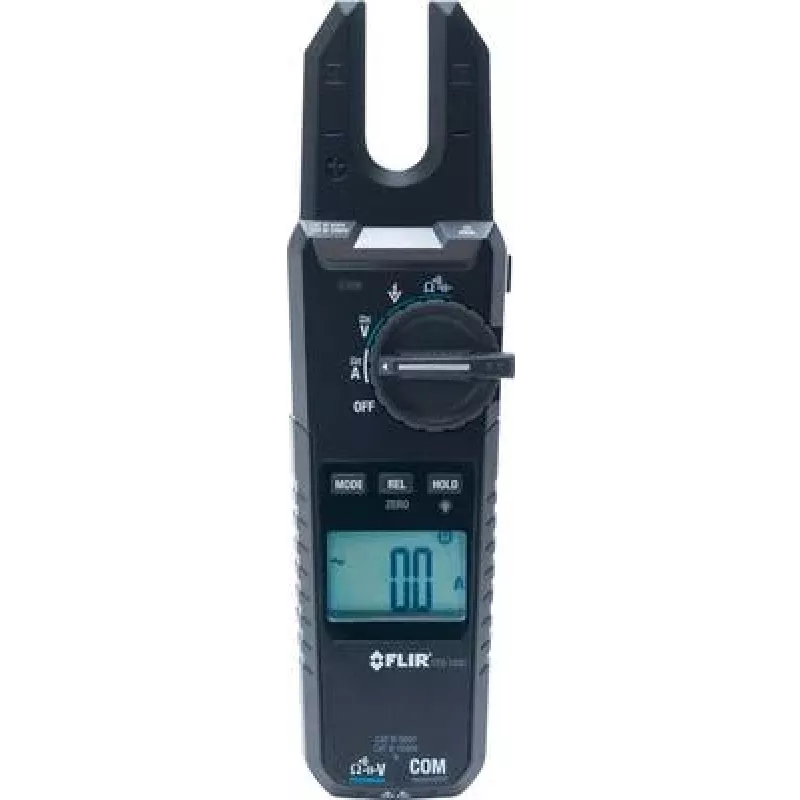

FLIR VT8-1000 Pinza amperimétrica digital, True RMS, 6000 cuentas, CAT IV 600V / CAT III 1000V, AC/DC 1000A, apertura de pinza 37 mm

The FLIR VT8-1000 stands out with its dual CAT IV 600V and CAT III 1000V safety rating, enabling safe measurements on both low-voltage installations and industrial power distribution. Its 6000-count display and true RMS technology deliver accurate readings even on distorted waveforms, while the 37 mm jaw accommodates large conductors.

Highlights

• True RMS for precise AC measurements on non-sinusoidal signals
• Wide current range up to 1000 A AC/DC
• Voltage measurement up to 1000 V AC/DC
• Resistance, capacitance, frequency, and temperature functions
• Non-contact voltage detection and built-in worklight for safety
• Data hold, auto power off, and backlit display for convenience

In daily use

Whether you are troubleshooting motor drives, checking power quality, or verifying de-energized circuits, the VT8-1000 provides the versatility and ruggedness required by professional electricians. The clamp design allows current measurement without breaking the circuit, and the included temperature probe extends its utility to HVAC and industrial maintenance. Powered by three AAA batteries, it is ready for all-day use with automatic shutoff to preserve battery life.

Full specifications

• Display: 6000 counts, backlit
• True RMS: Yes
• AC/DC current: 0 to 1000 A
• AC/DC voltage: 0 to 1000 V
• Resistance: 0 to 60 MΩ
• Capacitance: 0 to 60 mF
• Frequency: 0 to 10 kHz
• Temperature: -20 to 760°C (-4 to 1400°F)
• Jaw opening: 37 mm
• Safety rating: CAT IV 600V, CAT III 1000V
• Non-contact voltage (NCV): Yes
• Continuity test: Yes
• Diode test: Yes
• Data hold: Yes
• Auto power off: Yes
• Power source: 3x AAA batteries

Final note

With its high safety category and broad measurement range, the FLIR VT8-1000 is a reliable choice for demanding electrical environments.
