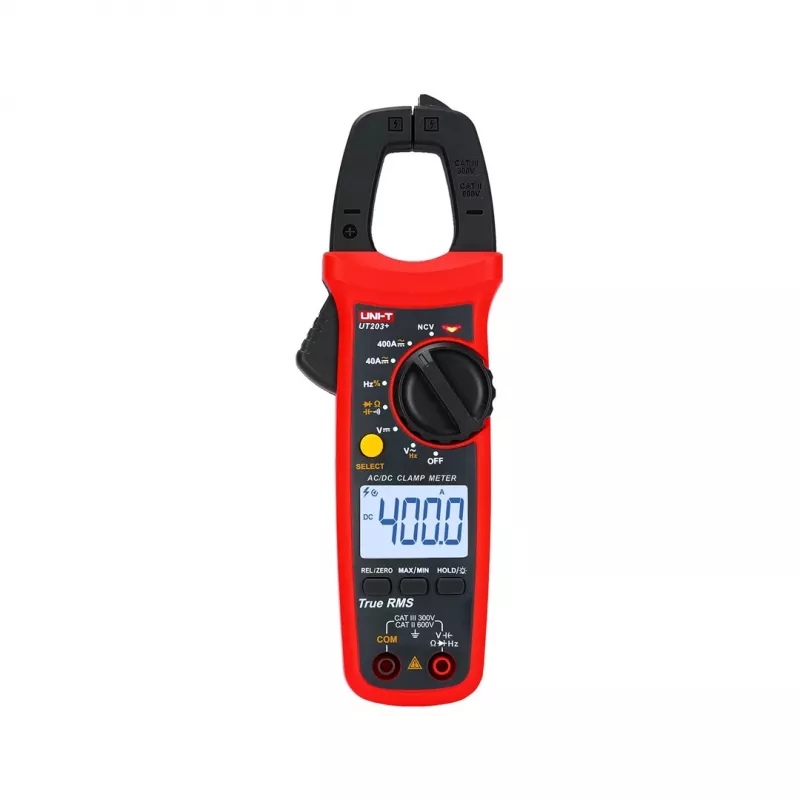

UNI-T UT203+ Multímetro pinza digital

The UNI-T UT203+ is a compact and reliable digital clamp meter designed for professional electricians and DIY enthusiasts. It offers accurate AC/DC current, voltage, resistance, and continuity measurements, making it an essential tool for electrical troubleshooting and maintenance.

Advantages

• True RMS for accurate AC measurements
• 4000-count display with backlight for easy reading in low light
• Auto-ranging and manual ranging options
• Data hold and relative value measurement
• Low battery indication and auto power-off for energy saving

Suitable for

• Electrical maintenance and repair
• Industrial and residential wiring checks
• HVAC system diagnostics
• Automotive electrical testing

Key specifications

• AC Current: 400A/600A
• DC Current: 400A/600A
• AC Voltage: 400mV/4V/40V/400V/600V
• DC Voltage: 400mV/4V/40V/400V/600V
• Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
• Capacitance: 40nF/400nF/4μF/40μF/400μF/4mF/40mF
• Frequency: 10Hz-10MHz
• Temperature: -40°C~1000°C (with K-type thermocouple)
• Diode and continuity test
• Jaw opening: 30mm
• Safety rating: CAT II 600V, CAT III 300V

Recommendations

For best results, use with CAT III rated test leads and ensure the meter is set to the correct function before measuring. Always follow safety guidelines when working with live circuits.
