Codo roscado de acero para StaroGewinde ESV, 25 mm, galvanizado en caliente 20460025

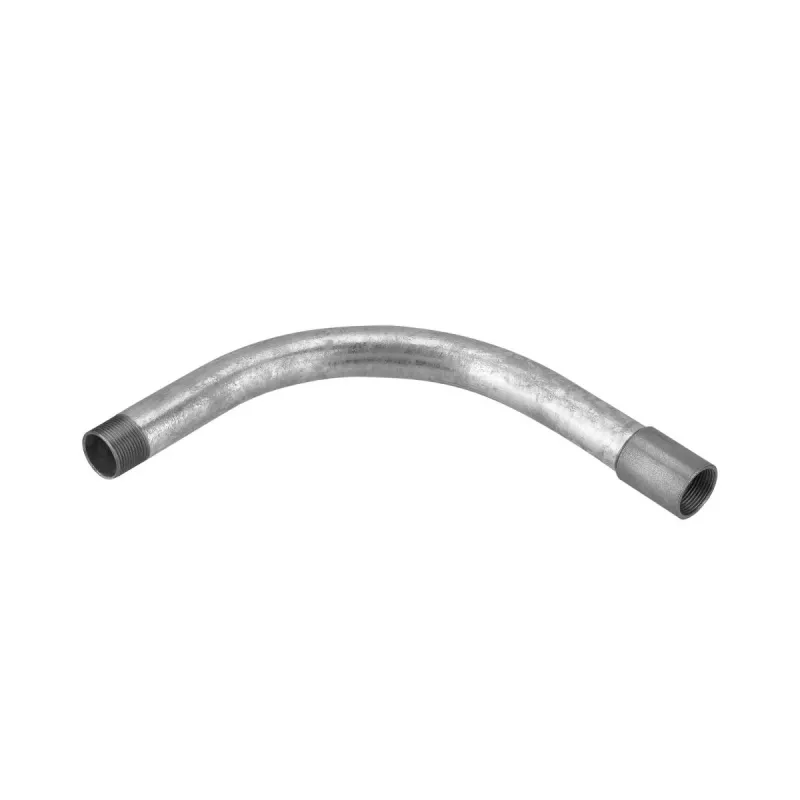

Threaded conduit bend for rigid steel conduit systems, offering a 90° direction change with M25 threads and hot-dip galvanized corrosion protection. Compatible with OBO Bettermann StaroGewinde ESV series, it ensures durable, high-impact-resistant routing in demanding electrical installations.

Advantages

Hot-dip galvanized steel provides long-term corrosion resistance for indoor and outdoor use. The 90° bend with 70 mm radius allows efficient conduit routing in tight spaces. Metric M25 threads ensure secure, tool-tight connections with standard conduit fittings.

Suitable for

• Rigid steel conduit installations requiring a 90° direction change
• Industrial and commercial electrical wiring systems
• Environments with high mechanical stress or UV exposure
• Applications where corrosion protection is critical

Key specifications

• Material: Steel
• Surface treatment: Hot-dip galvanized
• Nominal diameter: 25 mm
• Thread type: Metric (M25)
• Bend angle: 90°
• Bend radius: 70 mm
• System compatibility: OBO Bettermann StaroGewinde ESV
• Application: Electrical conduit systems for rigid steel conduits
• Temperature range: -45 °C to +400 °C
• Impact resistance: IK10

Recommendations

Pair with StaroGewinde ESV straight conduits and locknuts for a complete, corrosion-resistant conduit run. Verify thread compatibility with existing fittings before installation.
