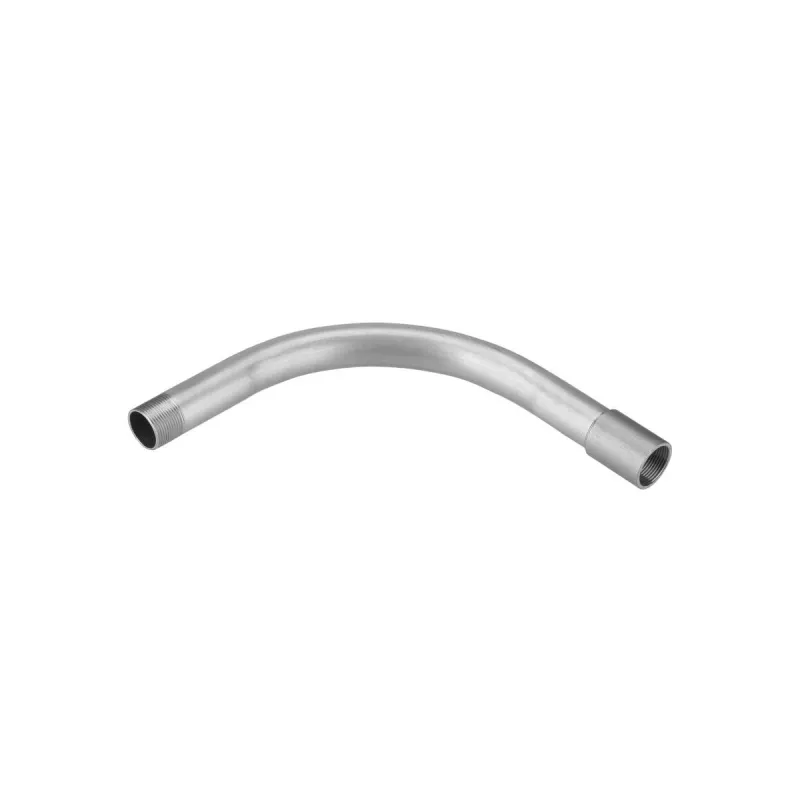

codo roscado de aluminio ABG-E 50 21060050

Electricians and panel builders use the ABG-E 50 to make a 90° turn in metallic conduit runs where space is tight, such as inside control cabinets or along machine frames. The elbow screws directly onto M50 conduit threads, giving a compact right-angle transition without extra fittings.

Key specifications

• Material: Aluminium
• Thread type: Metric (M)
• Nominal thread size: M50
• Connection 1: External thread M50
• Connection 2: Internal thread M50
• Angle: 90°
• Operating temperature range: -40°C to +100°C

Why choose it

Aluminium construction keeps the elbow lightweight yet strong, with high corrosion resistance and UV stability for long service life in demanding environments. The metric threads ensure a secure, vibration-resistant connection with standard M50 conduit fittings.

Ideal use cases

• Cable gland installation in electrical enclosures
• Conduit routing around corners in machinery
• Industrial control panel wiring

Good to know

The elbow is halogen-free and complies with RoHS and REACH regulations. For installation, simply screw the external thread into a mating M50 internal thread, then attach the conduit to the internal thread side.
