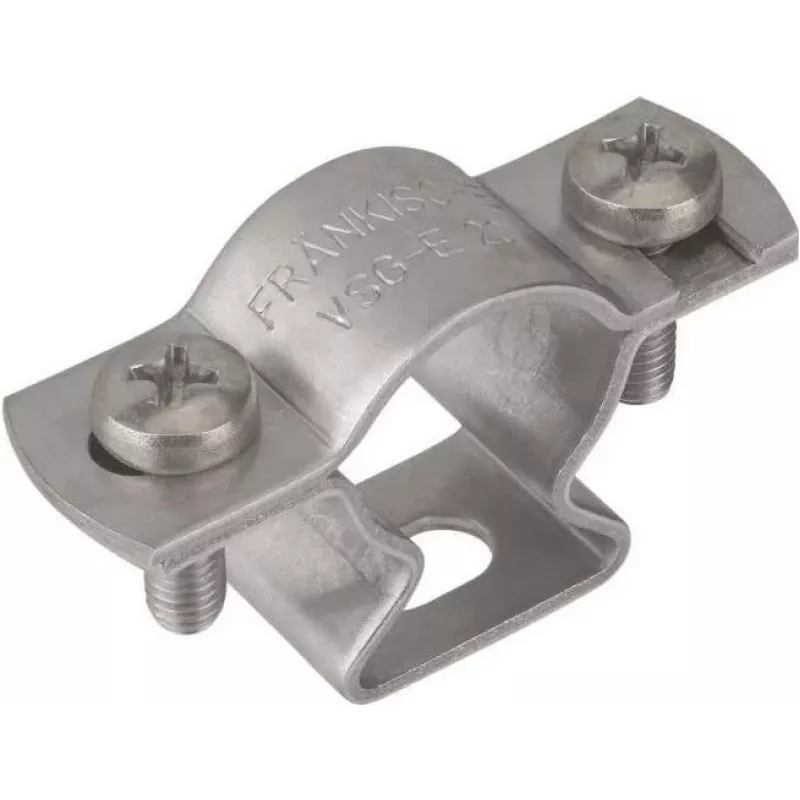

FRAENKISCHE ROHRWERKE abrazadera de distancia de acero inoxidable VSG-E 25 para tubo de 25 mm, M25 20870025

Secure 25 mm conduits at a fixed distance from the mounting surface with this stainless steel spacer clamp. It solves the problem of maintaining consistent spacing and corrosion resistance in demanding environments.

Who is it for

Electricians and installers working in industrial, food, or chemical facilities who need a durable, corrosion-resistant clamp for stainless steel conduits.

Main features

• Stainless steel V2A (1.4301) construction for high corrosion resistance
• Designed for conduits with 25 mm outer diameter
• Provides 20 mm distance from mounting surface
• 7 mm mounting hole for M6 screw
• Suitable for indoor and outdoor use, including harsh environments

Specifications

• Material: Stainless Steel V2A (1.4301)
• Conduit nominal size: NW 25
• Compatible conduit outer diameter: 25 mm
• Distance to mounting surface: 20 mm
• Mounting hole diameter: 7 mm
• Recommended fastener: M6 screw
• Temperature range: -45°C to +400°C
• UV resistant
• Chemical resistant
• Non-flammable

Tips

Use with M6 screws for secure installation. Ideal for stainless steel conduit systems in corrosive or hygienic environments.
