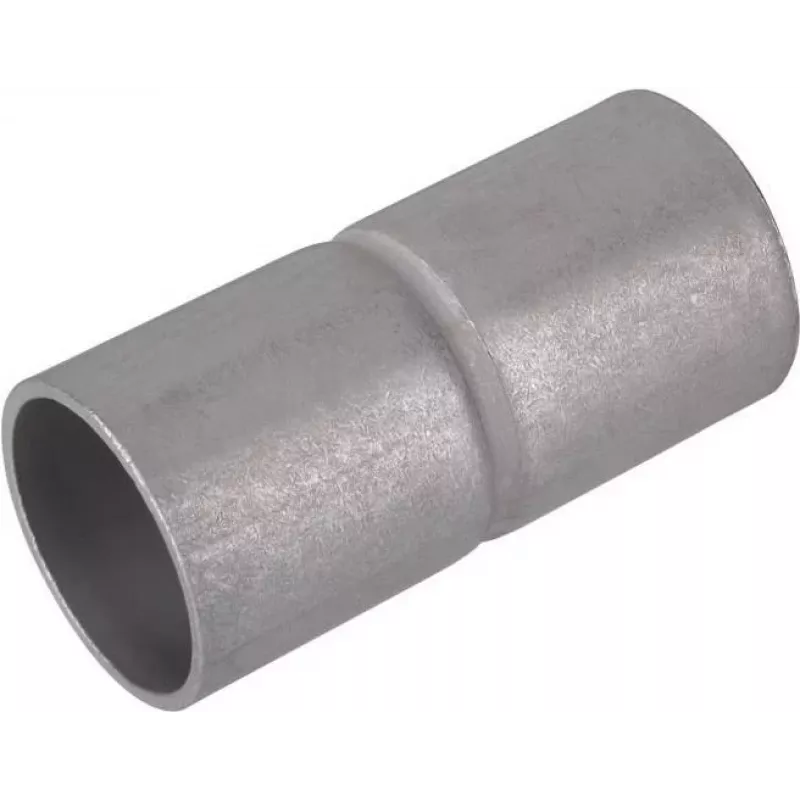

FRAENKISCHE ROHRWERKE acoplamiento de tubo de acero StaroSteck-ESV SMS-E-V 63 galvanizado 20550063

This coupling stands out for its tool-free push-fit connection, enabling rapid assembly of rigid steel conduits without compromising mechanical protection. The galvanized steel construction ensures high corrosion resistance and durability in demanding electrical installations.

Highlights

• Push-fit connection for quick, tool-free installation
• Galvanized steel for excellent corrosion resistance
• Compatible with 63 mm rigid steel conduits
• High mechanical protection and impact resistance
• Wide temperature range: -45 °C to +400 °C

In daily use

Designed for cable management in industrial and commercial settings, this coupling provides a secure inline connection for steel conduits. Its non-flame propagating and UV-resistant properties make it suitable for both indoor and outdoor applications where reliability is critical.

Full specifications

• Product Type: Conduit Coupling
• Material: Steel
• Surface Treatment: Galvanized
• Nominal Conduit Diameter: 63 mm
• Connection Type: Push-fit
• Internal Diameter: 63 mm
• External Diameter: 70 mm
• Length: 65 mm
• Temperature Range: -45 °C to +400 °C
• Standard Compliance: DIN EN 61386-21

Final note

A robust and efficient solution for connecting steel conduits in electrical installation projects.
