FRAENKISCHE ROHRWERKE codo de enchufe de aluminio ABS-E 32 codo de enchufe 90° aluminio 32mm 20960032

Aluminium push-fit bend with 90° angle and 32mm nominal diameter, engineered for rigid conduit systems in electrical installations. The ABS-E 32 provides a secure, corrosion-resistant connection without additional tools.

Overview

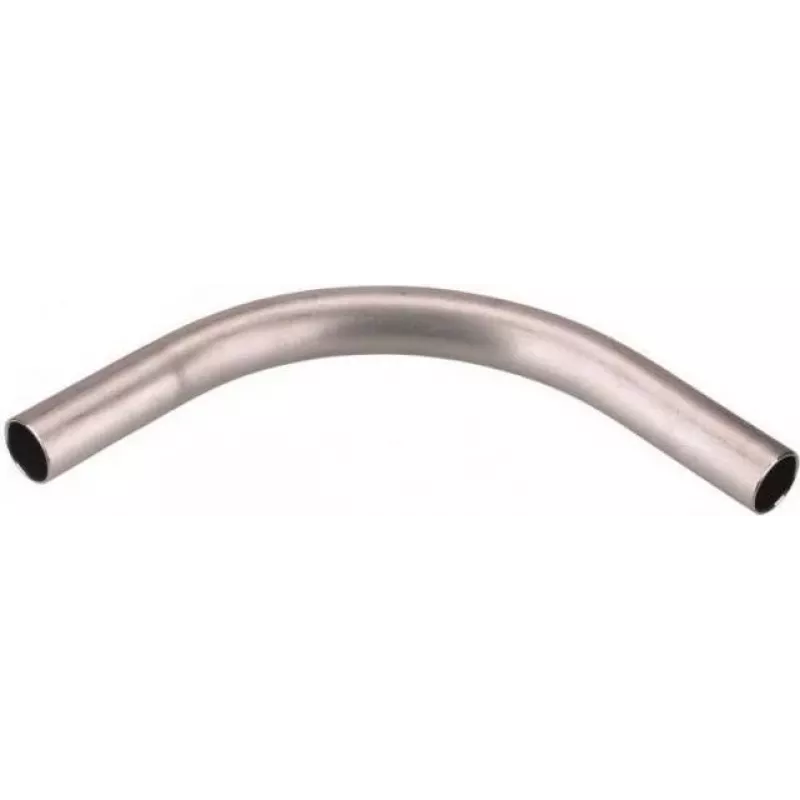

The FRAENKISCHE ROHRWERKE Alu-Steckbogen ABS-E 32 is a high-quality aluminium push-fit bend designed for rigid conduits. Its 90° bend angle and 100mm inner radius allow for smooth cable routing in tight spaces. The push-fit connection ensures quick and reliable installation, while the aluminium construction offers excellent durability and corrosion resistance.

What stands out

• Tool-free push-fit connection for fast installation
• Corrosion-resistant aluminium body for long service life
• 90° bend with 100mm inner radius for efficient cable management
• Halogen-free and flame-retardant material for enhanced safety
• UV resistant, suitable for outdoor applications

Technical details

• Material: Aluminium
• Product Type: Push-fit bend (Steckbogen)
• Nominal Diameter (DN): 32 mm
• Bend Angle: 90°
• Bending Radius (R): 100 mm (inner radius)
• Connection Type: Push-fit
• Suitable for Conduit Type: Rigid conduits
• Application Area: Electrical installation
• Protection Class (IP): IP65 (when installed correctly with compatible conduits)
• Operating Temperature Range: -25°C to +60°C
• UV Resistance: Yes
• Corrosion Resistance: Yes
• Halogen-free: Yes
• Flame Retardant: Yes (non-combustible material)
• Color: Metallic (Aluminium)
• Standard: DIN EN 61386-21

Our verdict

The ABS-E 32 combines robust aluminium construction with a simple push-fit design, making it an excellent choice for professional electrical installations requiring reliable 90° bends in rigid conduit systems.
