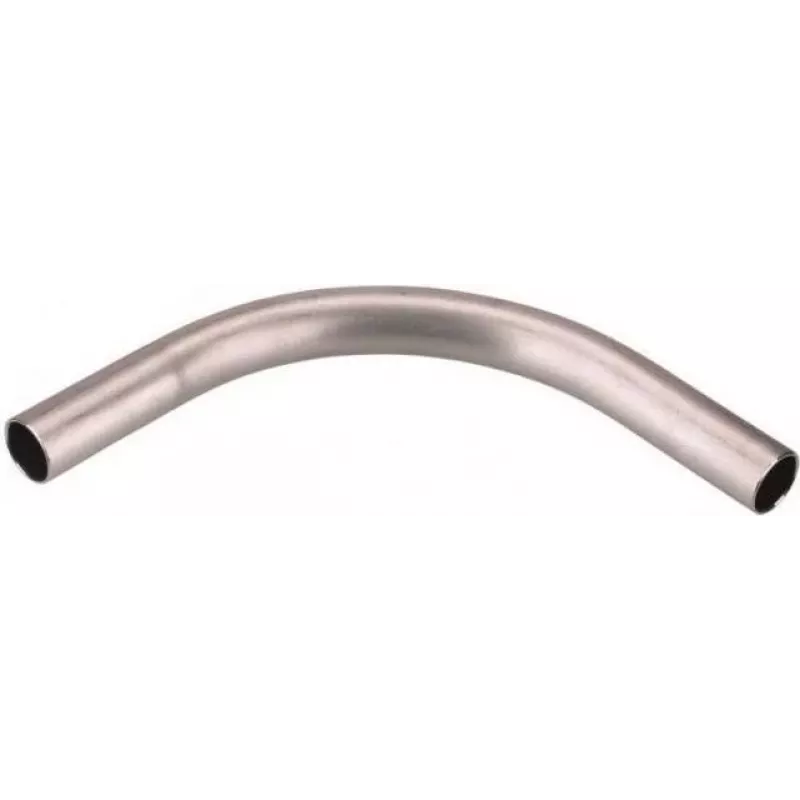

FRAENKISCHE ROHRWERKE codo de enchufe de aluminio ABS-E 40 (20960040)

Routing aluminium conduit around tight corners can be a challenge, especially when you need a secure, push-fit connection that maintains the integrity of the installation. The FRAENKISCHE ROHRWERKE Aluminium-Steckbogen ABS-E 40 solves this by providing a robust 90° bend designed for F-Alu-Steckrohr systems.

Who is it for

Electricians and installers working with aluminium conduit in industrial or commercial environments where corrosion resistance and a wide temperature range are required.

Main features

• Aluminium construction for corrosion resistance and durability
• Push-fit connection for quick, tool-free installation
• 90° bend angle for directional changes in conduit runs
• Nominal diameter M40 (40 mm) for compatibility with F-Alu-Steckrohr
• Halogen-free and UV resistant
• Temperature range: -45°C to +250°C

Tips

Ensure the conduit ends are cut square and free of burrs before pushing into the bend for a secure fit. For outdoor installations, the aluminium material and UV resistance help maintain performance over time.
