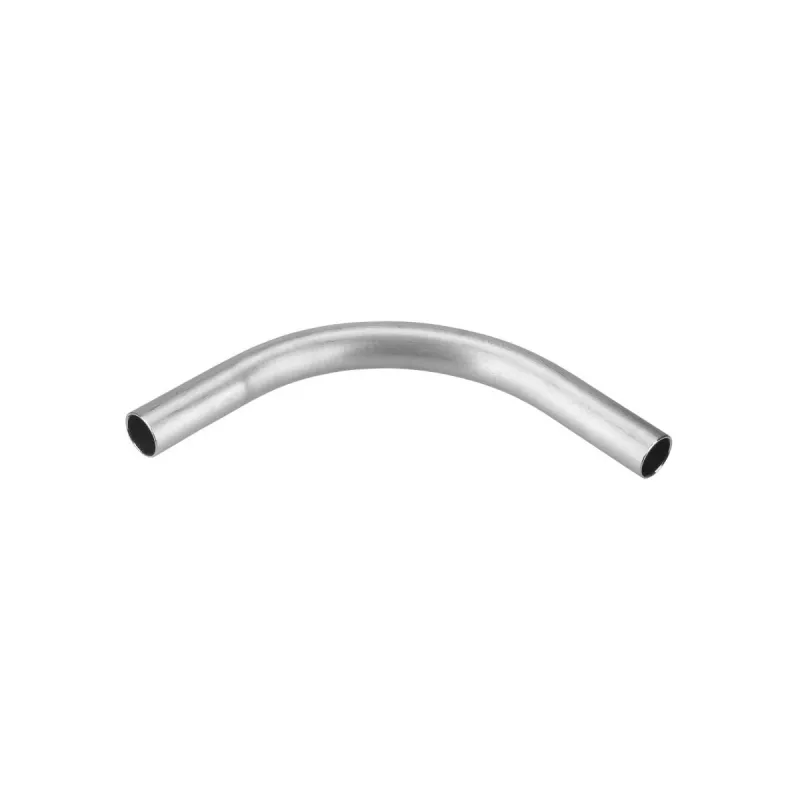

FRAENKISCHE ROHRWERKE codo de enchufe de aluminio ABS-E 63 (20960063) - codo de enchufe de 90°, conexión por enchufe, 63 mm

Electricians and panel builders use the FRAENKISCHE Aluminium-Steckbogen ABS-E 63 to create a 90° change of direction in metallic conduit runs. This push-fit bend connects to 63 mm aluminium conduit without tools, saving time on site and in the workshop.

Key specifications

• Product type: Conduit bend
• Material: Aluminium
• Bend angle: 90°
• Nominal diameter: 63 mm
• Connection type: Push-fit
• Bend radius: 200 mm
• Series: ABS-E
• Halogen-free: Yes
• Temperature range: -45°C to +250°C

Why choose it

The aluminium body offers high mechanical strength and corrosion resistance, while the push-fit connection reduces installation time. It is suitable for rigid and flexible conduits in electrical installations.

Ideal use cases

• Routing conduit around corners in industrial settings
• Cable protection in areas with high mechanical stress
• Surface-mounted and concealed installations

Good to know

This bend is part of the ABS-E series and conforms to DIN EN 61386-21. It is halogen-free and UV resistant.
