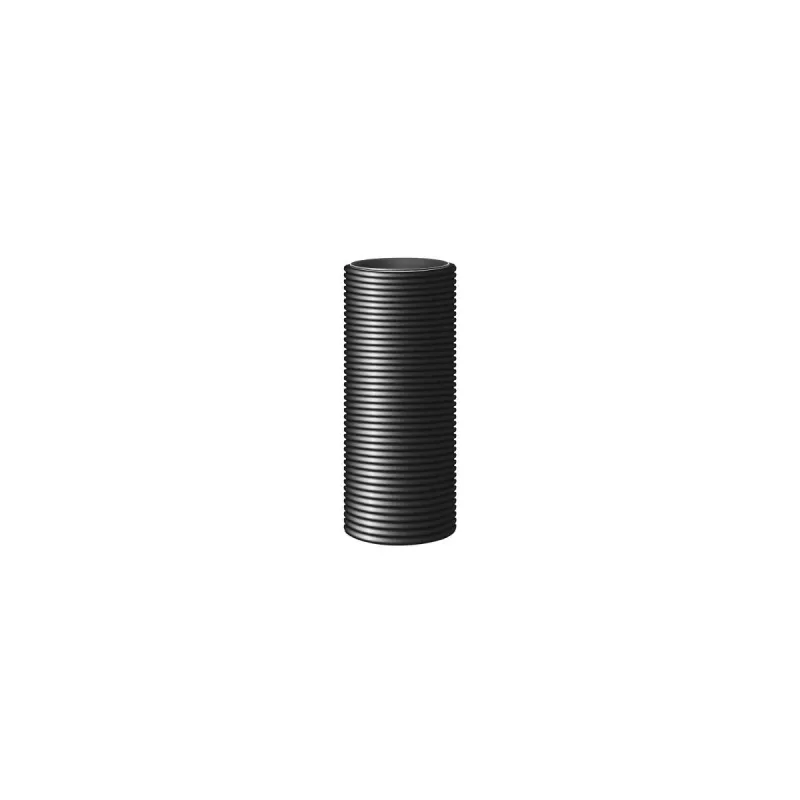

FRAENKISCHE ROHRWERKE tubo de cimentación Furowell DN350, 1000 mm, PE-HD, negro 29511350

On construction sites and in civil engineering projects, the FRAENKISCHE ROHRWERKE Furowell Foundation Pipe DN350 provides a robust solution for underground cable protection and foundation drainage. This 1000 mm long pipe section is made from high-density polyethylene (PE-HD) with a double-wall corrugated structure, offering high crush resistance and durability in buried installations.

Key specifications

• Nominal diameter: DN350
• Length: 1000 mm
• Material: PE-HD (high-density polyethylene)
• Pipe structure: Double-wall corrugated
• Outer diameter: 398 mm
• Inner diameter: 300 mm
• Ring stiffness: SN8 (EN ISO 9969)
• Colour: Black
• Temperature resistance: -25°C to +90°C
• Application: Underground cable protection, foundation drainage, building services

Why choose it

The corrugated double-wall design delivers high impact and crush resistance, ensuring reliable protection for cables and conduits even under heavy loads. PE-HD offers excellent chemical resistance to acids, alkalis, and salts, making it suitable for aggressive soil conditions. The pipe is designed for buried installation and complies with EN ISO 9969 and DIN 16961.

Ideal use cases

• Protecting underground power and telecommunication cables
• Foundation drainage in building construction
• Routing of building services in civil engineering projects

Good to know

Connection is via a separate coupler (not included). The pipe has limited UV resistance and is intended for buried applications. Ring stiffness SN8 ensures structural integrity under typical soil loads.
