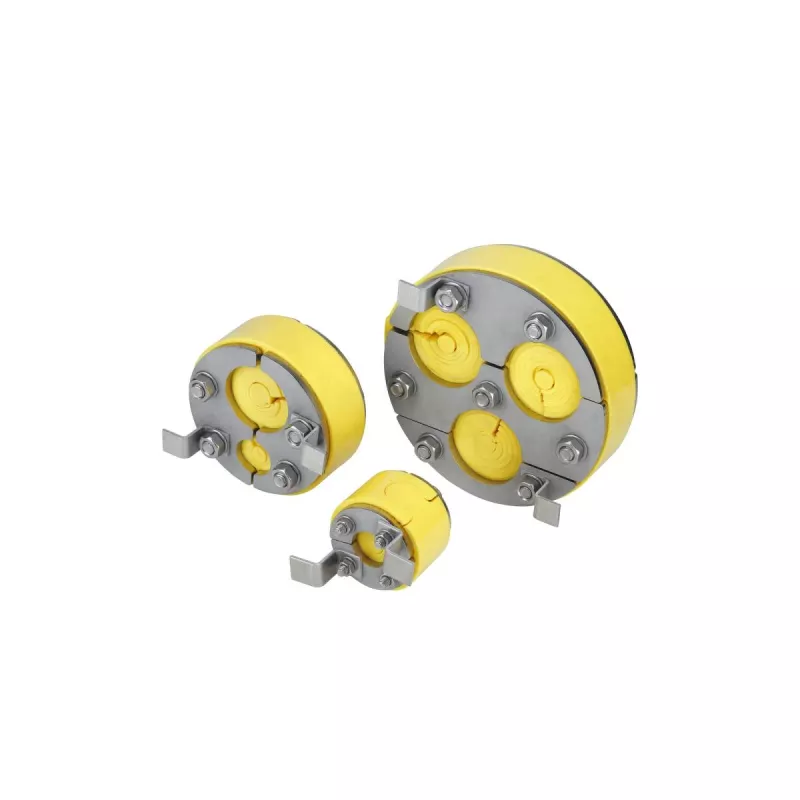

FRÄNKISCHE Kabu-IN 110 9-48 junta interior para tubo corrugado Kabuflex (19951110)

Seal corrugated conduits against water, gas, and fine particles with this EPDM rubber inner seal, rated for pressure up to 2.5 bar short-term and 0.5 bar long-term.

Overview

The FRÄNKISCHE Kabu-IN 110 9-48 is an inner seal designed for use with Kabuflex R and Kabuflex S corrugated conduits of nominal diameter DN 110. It accommodates cables with diameters from 9 mm to 48 mm, providing a gas-tight and water-tight closure at the conduit end.

What stands out

• EPDM rubber construction offers good resistance to acids, alkalis, and salts, plus UV stability for outdoor use.
• Operates reliably in temperatures from -30°C to +100°C.
• Simple installation: insert into the conduit end, no special tools required.
• Part of the Kabuflex conduit system, ensuring compatibility with existing installations.

Technical details

• Product type: Inner seal
• Conduit compatibility: Kabuflex R, Kabuflex S
• Conduit nominal diameter: DN 110
• Cable diameter range: 9 - 48 mm
• Sealing medium: Water, gas, fine particles
• Material: EPDM rubber
• Pressure resistance (water): Up to 2.5 bar (short-term), 0.5 bar (long-term)
• Temperature range: -30°C to +100°C
• UV resistance: Yes
• Chemical resistance: Good against acids, alkalis, salts
• Installation method: Insert into conduit end
• Colour: Black

Our verdict

A reliable sealing solution for Kabuflex conduits, providing long-term protection against environmental ingress in demanding conditions.
