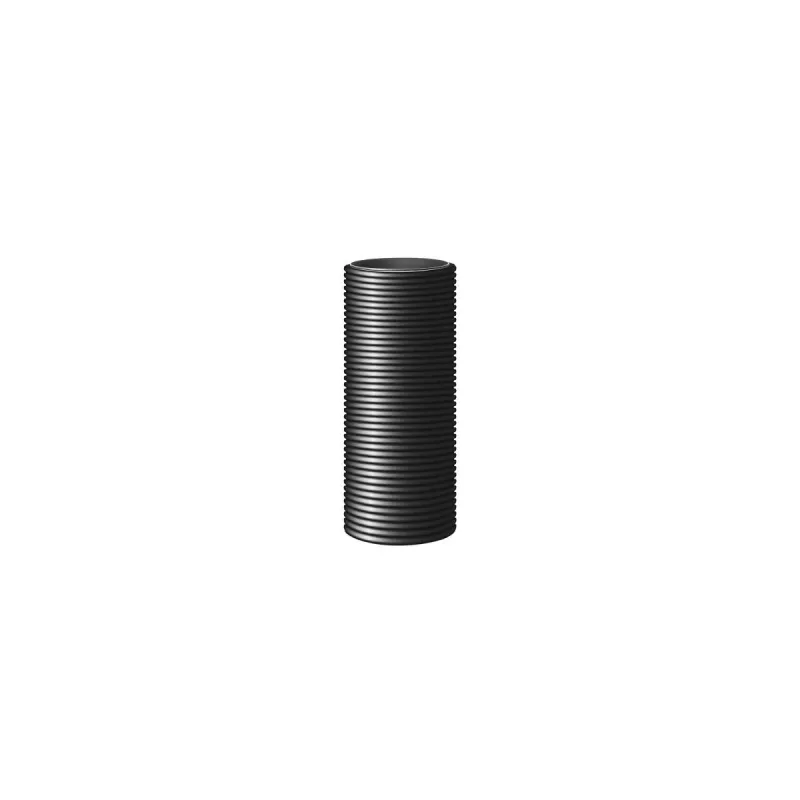

FRAENKISCHE ROHRWERKE tubo de cimentación Furowell NW250/1000 negro 29511250

Routing cables and media lines through concrete foundations requires a conduit that withstands the pressure of concrete and the demands of construction. The FRAENKISCHE ROHRWERKE Furowell Foundation Pipe NW250/1000 provides a robust, corrosion-resistant pathway for electrical and communication lines, ensuring they remain protected and accessible.

Who is it for

Electricians, plumbers, and construction professionals who need a reliable, pre-formed conduit for embedding in concrete foundations. It suits both residential and commercial projects where long-term cable protection is essential.

Main features

• Polypropylene construction offers high chemical resistance and impact strength.
• Ring stiffness class SN 8 provides excellent resistance to soil and traffic loads.
• Socket connection allows quick and secure joining of multiple pipes.
• Operating temperature range from -25°C to +90°C, with short-term resistance up to +100°C.
• Black colour blends discreetly into foundation work.

Specifications

• Nominal diameter: 250 mm
• Outer diameter: 250 mm
• Length: 1000 mm
• Material: Polypropylene (PP)
• Ring stiffness class: SN 8 (EN ISO 9969)
• Connection type: Socket connection
• Operating temperature range: -25°C to +90°C
• Short-term temperature resistance: Up to +100°C
• Inner diameter (approx.): 225 mm
• Wall thickness (approx.): 12.5 mm

Tips

When installing, ensure the socket connections are fully engaged and sealed to prevent concrete ingress. Plan the pipe layout to minimise bends and allow for future cable pulling.
