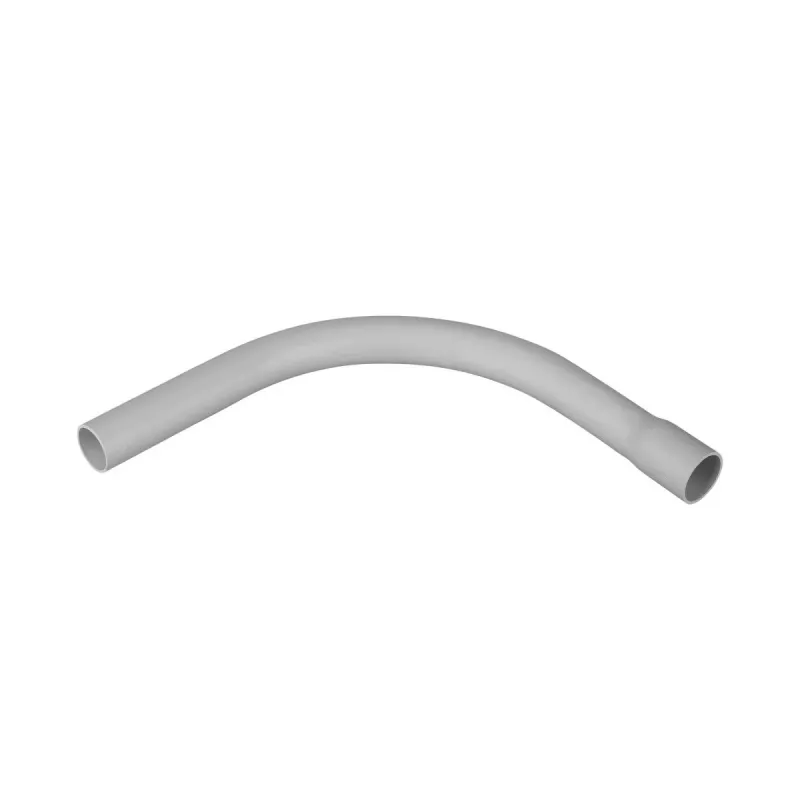

Fränkische codo de enchufe de plástico SBSKu-EM-H0 20 | codo de enchufe | 20 mm | gris 23260020

This push-fit conduit bend from Fränkische offers a halogen-free, flame-retardant solution for 90° direction changes in corrugated plastic conduit systems. Unlike standard bends that require glue or clips, it simply plugs onto FPKu-EM-f-H0 or SBSKu-EM-H0 conduits with a secure friction fit, saving installation time and reducing the risk of improper connections.

Highlights

• Push-fit connection for quick, tool-free assembly
• Halogen-free and flame-retardant plastic for safer installations
• Compatible with Fränkische FPKu-EM-f-H0 and SBSKu-EM-H0 corrugated conduits
• 90° bend angle for clean directional changes
• Medium impact resistance (EM) suitable for indoor and flush-mounted applications

In daily use

The bend is designed for electrical installation and cable protection in indoor environments, including flush-mounted, surface-mounted, and hollow wall applications. Its grey colour blends with standard conduit systems, and the operating temperature range of -5 °C to +60 °C covers typical building conditions. The 20 mm nominal diameter ensures compatibility with common cable sizes, while the push-fit design allows for easy repositioning during installation if needed.

Full specifications

• Product type: Conduit bend
• Fitting type: Push-fit / Plug-in
• Material: Plastic
• Nominal diameter: 20 mm
• Bend angle: 90°
• Colour: Grey
• Halogen-free: Yes
• Flame retardant: Yes
• Impact resistance: Medium (EM)
• Temperature range: -5 °C to +60 °C
• Compatible conduit: FPKu-EM-f-H0, SBSKu-EM-H0
• Application: Electrical installation, cable protection
• Installation environment: Indoor, flush-mounted, surface-mounted, hollow wall

Final note

A reliable, easy-to-install bend that meets the demands of modern electrical installations with halogen-free and flame-retardant properties.
