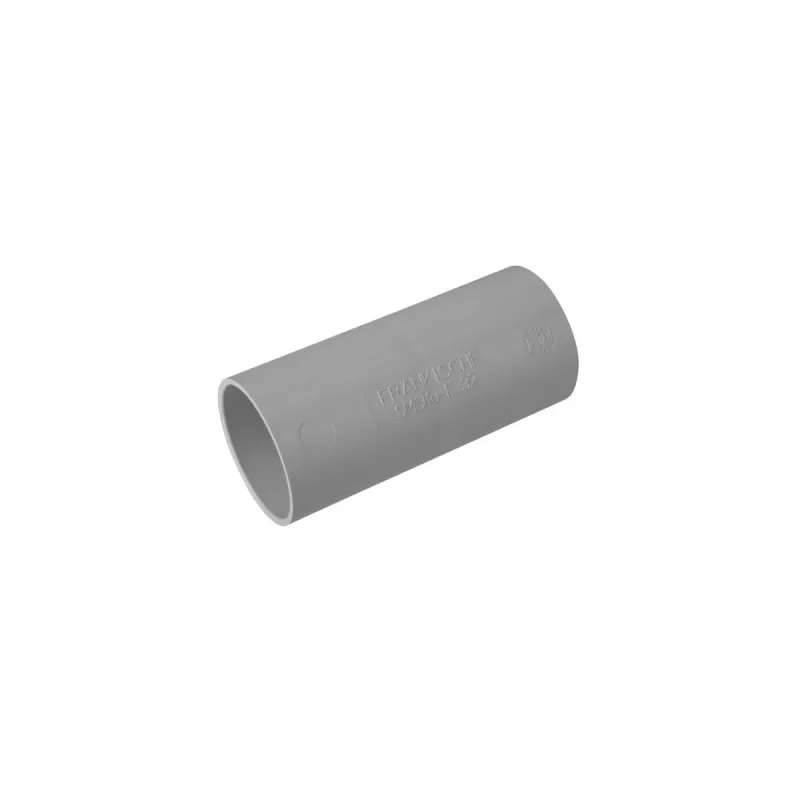

Fränkische manguito de enchufe de plástico para isofix-EL-F SMSKu-E 63 (22250063)

Push-fit coupling for Fränkische isofix-EL-F corrugated conduits with nominal diameter 63 mm. Made of halogen-free, flame-retardant plastic, it enables quick and secure connection of conduit sections without additional tools.

Advantages

Tool-free push-fit installation saves time on site. The halogen-free and flame-retardant material meets requirements for electrical installations in buildings. Suitable for concrete embedding and prefabrication.

Suitable for

• Connecting Fränkische isofix-EL-F corrugated conduits, nominal diameter 63 mm
• Electrical installation in concrete and prefabricated elements
• Indoor applications

Key specifications

• Type: Coupling
• Connection: Push-fit
• Material: Plastic
• Nominal diameter: 63 mm
• Colour: Black
• Halogen-free: Yes
• Flame-retardant: Yes
• Operating temperature: -5 °C to +90 °C
• Compatible system: Fränkische isofix-EL-F

Recommendations

Use with Fränkische isofix-EL-F corrugated conduits of matching diameter. Ensure conduit ends are cut square and clean before insertion.
