FRAENKISCHE ROHRWERKE Gebr. Kirchner GmbH & Co. KG junta de perfil WD DN 110 para Kabuflex S/r (19980110)

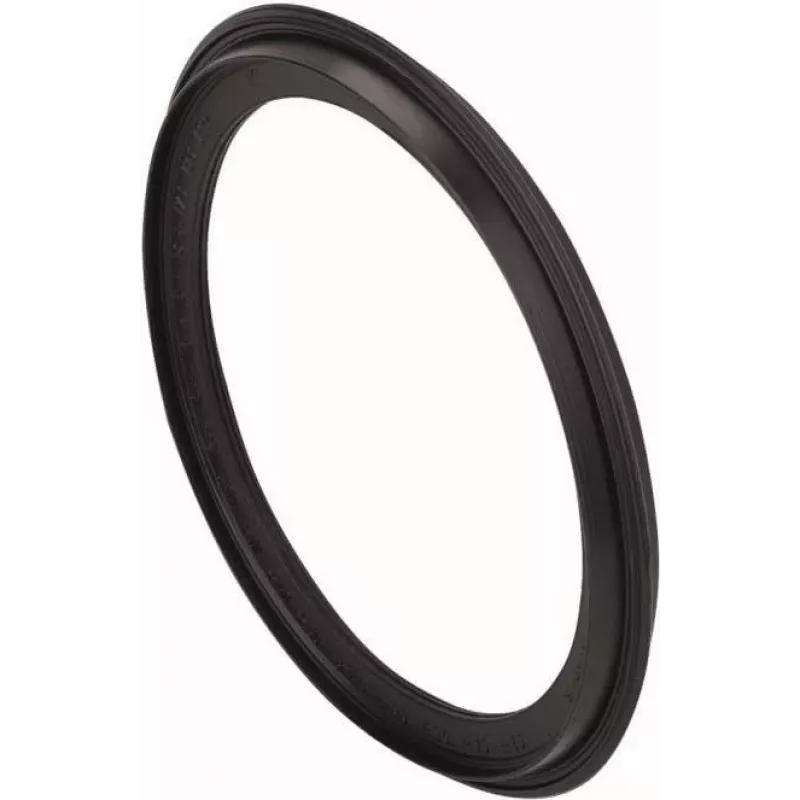

The Profildichtring WD DN 110 is a specialized sealing ring engineered for Fränkische Kabuflex S/r corrugated pipes. Its watertight (WD) profile ensures a reliable seal in cable protection systems, even in demanding underground or outdoor environments.

Highlights

• Watertight sealing for DN 110 Kabuflex S/r corrugated pipes
• Made from EPDM for excellent chemical and UV resistance
• Push-fit installation for quick and secure connections
• Wide temperature range from -25°C to +80°C
• Durable and corrosion-resistant for long-term stability

In daily use

This sealing ring is essential for maintaining the integrity of cable protection conduits. Its EPDM material withstands harsh conditions, preventing water and dust ingress. The push-fit design simplifies installation, reducing downtime on site.

Full specifications

• Product Type: Profile Sealing Ring
• Nominal Diameter (DN): 110 mm
• Compatibility: Fränkische Kabuflex S/r Corrugated Pipes
• Sealing Function: Watertight (WD)
• Material: EPDM
• Colour: Black
• Temperature Range: -25°C to +80°C
• UV Resistance: Yes
• Chemical Resistance: Good against acids, alkalis, and various chemicals
• Installation Type: Push-fit / Gasket
• Ingress Protection: Water and dust ingress protection
• Manufacturer Series: Kabuflex Accessories
• Corrosion Resistance: Yes
• Durability: High, long-term stability
• Environmental Suitability: Underground, outdoor, and indoor installations
• Specific Use: For sealing pipe ends or connections in corrugated conduit systems
• Inner Diameter (approx.): 110 mm
• Outer Diameter (approx.): 130 mm
• Thickness (approx.): 20 mm

Final note

A robust sealing solution for professional cable protection installations, ensuring long-term reliability and safety.
